LINER 19SH V - 2021-2024 - 294519037/AT1 - Atco Rotary Mower Fuel Tank Diagram

Description

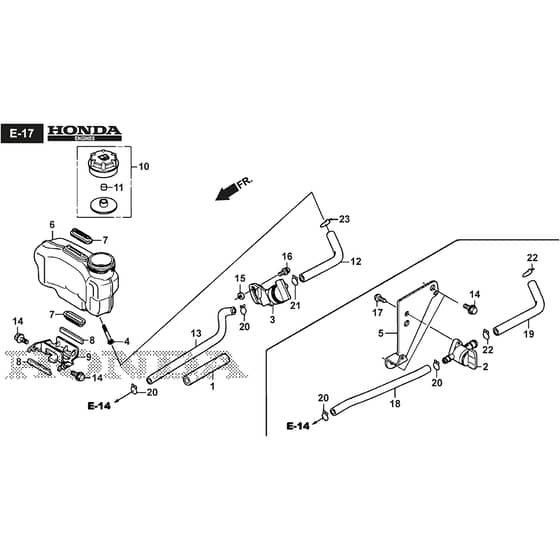

Atco LINER 19SH V Parts Diagram

Product Name - LINER 19SH V

Model Year - 2021-2024

Model Type - MP2 504 SV-R

Art.N - 294519037/AT1

Engine Model - GCVx170 OHV Autochoke

	Part No.	Details
1	HP16950-Z0Y-003 Available to backorder	Cock Assy. Fuel	£35.81 £29.84
4	HP16952-Z9R-000 In stock	Strainer. Fuel	£10.16 £8.47
5	HP16961-Z9L-000 Available to backorder	Stay. Fuel Cock	£10.08 £8.40
6	HP17511-Z9L-800 Available to backorder	Tank. Fuel	£41.44 £34.53
7	HP17532-Z9L-000 Available to backorder	Rubber A. Tank Mounting	£7.03 £5.86
8	HP17533-Z9L-000 Available to backorder	Rubber B. Tank Mounting	£3.97 £3.31
9	HP17561-Z9L-000 Available to backorder	Stay. Fuel Tank	£9.31 £7.76
10	HP17620-Z9L-800 In stock	Cap Assy. Fuel Tank	£18.72 £15.60
11	HP17622-888-010 In stock	Sponge. Fuel Cap Breather	£1.63 £1.36
14	HP90014-952-000 Available to backorder	Bolt. Flange. 6X14 (Ct200)	£3.77 £3.14
17	HP93913-252-20 Available to backorder	Screw. Tapping. 5X12 (Po)	£1.39 £1.16
20	HP95002-02080 In stock	Clip. Tube (B8)	£1.19 £0.99
