LINER 19SH V - 2021-2024 - 294519037/AT1 - Atco Rotary Mower Belt Protection Diagram

Description

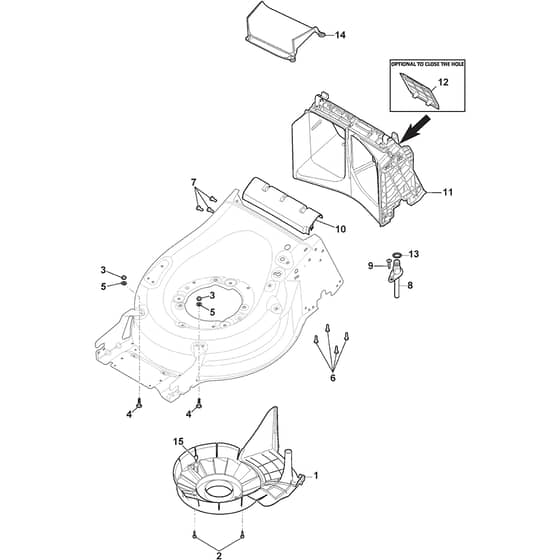

Atco LINER 19SH V Parts Diagram

Product Name - LINER 19SH V

Model Year - 2021-2024

Model Type - MP2 504 SV-R

Art.N - 294519037/AT1

Engine Model - GCVx170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322060283/2 Available to backorder	Carter Mulching From S.N 20AA2WBH000001	£15.84 £13.20
2	MO112735645/0 Available to backorder	Screw	£1.82 £1.52
3	MO112154510/0 In stock	Nut	£1.55 £1.29
4	MO112815206/0 Available to backorder	Screw	£1.55 £1.29
5	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
6	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
7	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
8	MO322034006/0 Available to backorder	Washing Connection White Galvanized	£10.99 £9.16
8	MO322034002/0 Available to backorder	Washing Connection Black Plastic	£1.69 £1.41
9	MO112728697/0 In stock	Screw	£1.55 £1.29
10	MO322109588/0 Available to backorder	Support. Black Black	£5.48 £4.57
11	MO381004826/0 Available to backorder	Conveyor	£142.19 £118.49
12	MO322600310/0 Available to backorder	Rear Door	£5.06 £4.22
13	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
14	MO322108320/0 Available to backorder	Rear Door	£22.10 £18.42
15	MO122042073/0 Available to backorder	Belt Guard Bush	£1.69 £1.41
