LINER 19SE V - 2016-2020 - 294519527/AT6 - Atco Rotary Mower Electric Start Diagram

Name: LINER 19SE V - 2016-2020 - 294519527/AT6 - Atco Rotary Mower Electric Start Diagram
SKU: liner_19se_v_294519527_at6_electric_start-group
Price: 1.29 GBP
Availability: InStock

Part No. liner_19se_v_294519527_at6_electric_start-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LINER 19SE V - 2016-2020 - 294519527/AT6 - Atco Rotary Mower Electric Start Diagram

Description

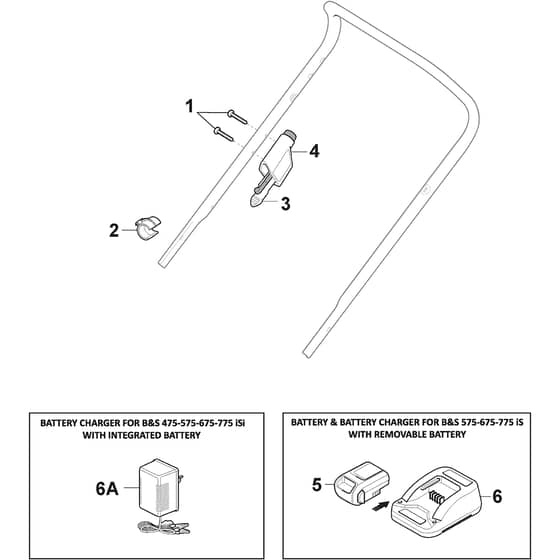

Atco LINER 19SE V Parts Diagram

Product Name - LINER 19SE V

Model Year - 2016-2020

Model Type - MP2 504 SVE-R

Art.N - 294519527/AT6

Engine Model - B&S 675 iS series InStart

	Part No.	Details
1	MO112728702/0 Available to backorder	Screw	£1.55 £1.29
2	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
3	MO322076570/1 In stock	Battery Safety Key	£5.47 £4.56
4	MO381600406/0 Available to backorder	Ignition Switch L.1120. Cable Included	£97.14 £80.95
5	MO1111-9319-01 In stock	Battery	£98.20 £81.83
6	MO118204137/1 Available to backorder	Battery Charger Li-Ion B&S Is [Uk Plug]	£82.37 £68.64
