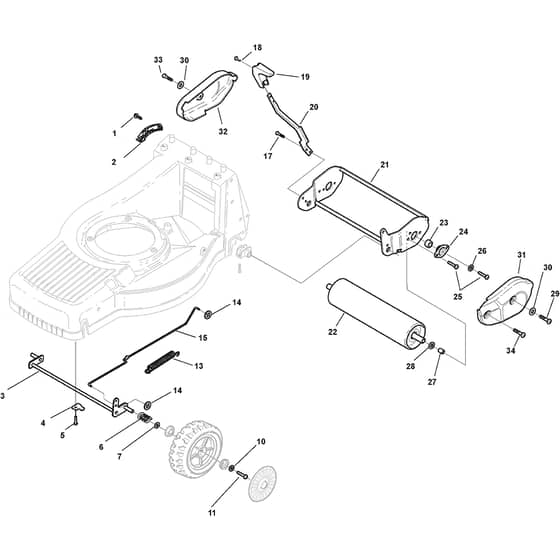

LINER 19SA - 2012-2014 - 292505027/AT2 - Atco Rotary Mower Roller Diagram

Name: LINER 19SA - 2012-2014 - 292505027/AT2 - Atco Rotary Mower Roller Diagram
SKU: liner_19sa_292505027_at2_roller-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LINER 19SA - 2012-2014 - 292505027/AT2 - Atco Rotary Mower Roller Diagram

Description

Atco LINER 19SA Parts Diagram

Product Name - LINER 19SA

Model Year - 2012-2014

Model Type - TU 504 TR-R 4S

Art.N - 292505027/AT2

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
2	MO322735553/0 Available to backorder	Sector. Height Adjustment	£9.08 £7.57
3	MO381002827/0 Available to backorder	Front Wheel Axle for Aluminium wheels	£39.47 £32.89
3	MO381002845/0 Available to backorder	Front Wheel Axle From 01-9-2006	£33.10 £27.58
6	MO122430210/0 Available to backorder	Spring	£1.69 £1.41
7	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
10	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
13	MO122446181/0 Available to backorder	Spring	£8.02 £6.68
14	MO112604898/0 Available to backorder	Crown Fastener	£1.55 £1.29
17	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
18	MO112728686/0 In stock	Screw To 31-8-2006	£1.55 £1.29
18	MO112728690/0 In stock	Screw From 01-9-2006	£1.55 £1.29
19	MO322399805/0 In stock	Knob	£13.72 £11.43
20	MO322321505/0 In stock	Lever. Height Adjustment	£36.11 £30.09
21	MO381005115/0 Available to backorder	Roller Support	£128.10 £106.75
22	MO1111-3429-01 Available to backorder	Roller	£260.44 £217.03
23	MO119216036/0 In stock	Bearing	£9.58 £7.98
24	MO322207323/0 Available to backorder	Bearing Flange	£17.82 £14.85
25	MO112735662/1 In stock	Screw From 01-9-2009	£2.40 £2.00
27	MO122170820/0 Available to backorder	Spacer	£17.74 £14.78
28	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
30	MO112523040/0 In stock	Washer	£1.49 £1.24
31	MO322060202/0 Available to backorder	Red Left Roller Prot. Carter	£2.40 £2.00
32	MO322060201/0 In stock	Red Right Roller Prot. Carter	£2.18 £1.82
33	MO112735592/0 Available to backorder	Screw	£1.97 £1.64
34	MO112735594/0 Available to backorder	Hex-Head Screw M6 X 30	£1.55 £1.29
