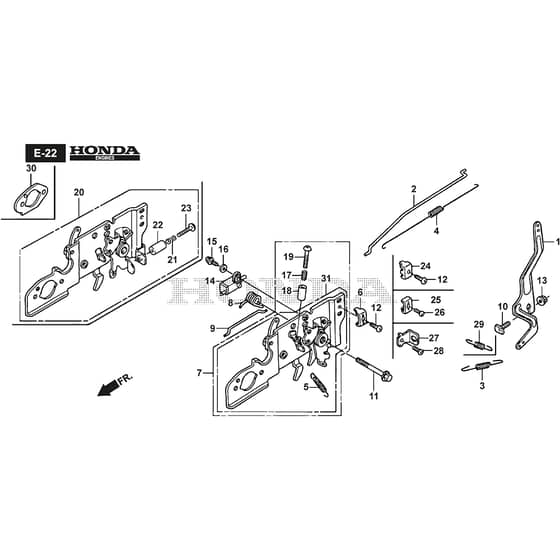

LINER 18SH - 2015-2018 - 299489037/AT5 - Atco Rotary Mower Control GCV16A0 S4 LE SD Diagram

Name: LINER 18SH - 2015-2018 - 299489037/AT5 - Atco Rotary Mower Control GCV16A0 S4 LE SD Diagram
SKU: liner_18sh_299489037_at5_control_gcv16a0_s4_le_sd-group
Price: 2.79 GBP
Availability: InStock

Part No. liner_18sh_299489037_at5_control_gcv16a0_s4_le_sd-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LINER 18SH - 2015-2018 - 299489037/AT5 - Atco Rotary Mower Control GCV16A0 S4 LE SD Diagram

Description

Atco LINER 18SH Parts Diagram

Product Name - LINER 18SH

Model Year - 2015-2018

Model Type - NTL 484 TR-R

Art.N - 299489037/AT5

Engine Model - Honda GCV160 OHC Autochoke

	Part No.	Details
1	HP16551-ZM0-010 Available to backorder	Arm. Governor	£9.31 £7.76
2	HP16555-Z0L-801 Available to backorder	Rod. Governor	£6.72 £5.60
3	HP16561-Z0L-000 Available to backorder	Spring. Governor	£3.50 £2.92
4	HP16562-ZM0-000 In stock	Spring. Throttle Return	£3.95 £3.29
10	HP90015-ZE5-010 Available to backorder	Bolt. Governor Arm	£3.35 £2.79
