LINER 18SE - 2012-2014 - 299489527/AT2 - Atco Rotary Mower Transmission Diagram

Description

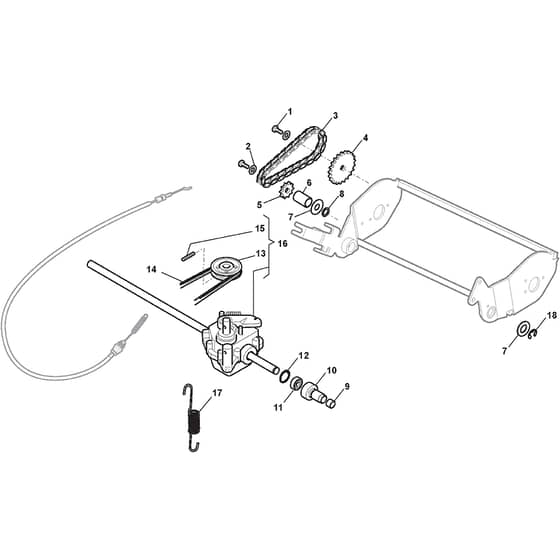

Atco LINER 18SE Parts Diagram

Product Name - LINER 18SE

Model Year - 2012-2014

Model Type - NTL 484 TR/E-R

Art.N - 299489527/AT2

Engine Model -

	Part No.	Details
1	MO112735662/1 Available to backorder	Screw	£2.40 £2.00
2	MO112523040/0 In stock	Washer	£1.55 £1.29
3	MO1111-3562-01 In stock	Chain To 31-8-2016	£20.08 £16.73
4	MO1111-3424-01 In stock	Ring Gear To 31-8-2016	£18.30 £15.25
5	MO1111-3423-01 In stock	Ring Gear To 31-8-2016	£14.80 £12.33
6	MO122170970/0 Available to backorder	Spacer	£2.53 £2.11
7	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
8	MO321660100/0 Available to backorder	Washer	£1.97 £1.64
9	MO322038404/0 In stock	Brass	£1.55 £1.29
10	MO322785126/0 In stock	Gear Box Support	£11.54 £9.62
11	MO119216035/0 In stock	Bearing	£3.52 £2.93
12	MO112610095/0 Available to backorder	Snap Ring	£1.70 £1.42
13	MO122601909/0 In stock	Pulley	£5.65 £4.71
14	MO135063800/0 In stock	Trapezoidal Belt	£9.17 £7.64
15	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
16	MO181003077/1 Available to backorder	Gear Box	£104.18 £86.82
17	MO125430220/0 In stock	Brake Spring	£4.08 £3.40
18	MO112000957/0 Available to backorder	Circlip D.10	£1.63 £1.36
