LINER 18S - 2012-2014 - 299489027/AT2 - Atco Rotary Mower Handle Diagram

Name: LINER 18S - 2012-2014 - 299489027/AT2 - Atco Rotary Mower Handle Diagram
SKU: liner_18s_299489027_at2_handle-group
Price: 1.05 GBP
Availability: InStock

Part No. liner_18s_299489027_at2_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LINER 18S - 2012-2014 - 299489027/AT2 - Atco Rotary Mower Handle Diagram

Description

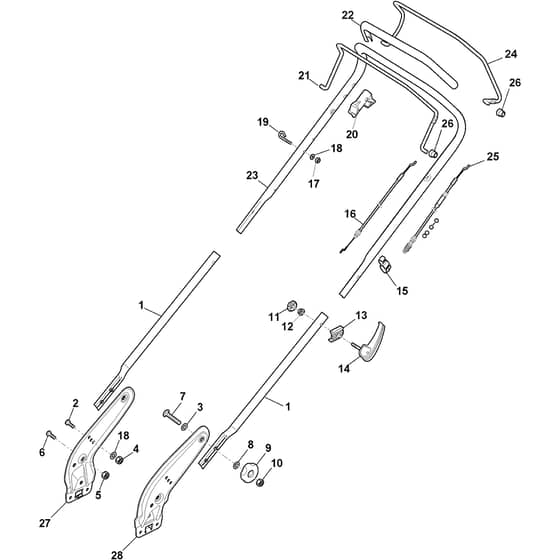

Atco LINER 18S Parts Diagram

Product Name - LINER 18S

Model Year - 2012-2014

Model Type - NTL 484 TR-R

Art.N - 299489027/AT2

Engine Model -

	Part No.	Details
2	MO112727803/0 Available to backorder	Screw	£1.63 £1.36
3	MO112543002/0 In stock	Washer	£1.26 £1.05
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO112760605/0 In stock	Screw	£3.38 £2.82
7	MO112819121/0 In stock	Screw	£1.97 £1.64
8	MO112523060/0 In stock	Washer	£1.55 £1.29
9	MO122399900/0 In stock	Black Knob	£1.55 £1.29
10	MO112293200/0 In stock	Nut	£1.55 £1.29
11	MO381004310/0 In stock	Black Knob	£1.97 £1.64
12	MO122131750/0 In stock	Nut	£1.97 £1.64
13	MO322680016/1 In stock	Handle Fixing Washer	£1.97 £1.64
14	MO381103360/0 In stock	Locking Handle Lever Black From 01-6-2020	£5.47 £4.56
15	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
16	MO181030056/1 In stock	Cable. Thread Engine Brake From 01-6-2021	£11.95 £9.96
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
19	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
20	MO322545204/0 In stock	Fulcrum Pin	£1.84 £1.53
21	MO181003300/1 Available to backorder	Lever. Engine Brake	£15.20 £12.67
22	MO122291050/0 Available to backorder	Handgrip Black	£14.22 £11.85
23	MO381006838/0 Available to backorder	Handle. Upper Part Black	£30.98 £25.82
24	MO181003301/0 In stock	Drive Control Lever	£15.20 £12.67
25	MO381030051/1 In stock	Cable Rear Drive	£17.17 £14.31
26	MO122041966/0 In stock	Bushing	£1.55 £1.29
27	MO381005149/0 Available to backorder	Right Bracket Black	£15.20 £12.67
28	MO381005151/0 Available to backorder	Left Handle Bracket	£15.20 £12.67
