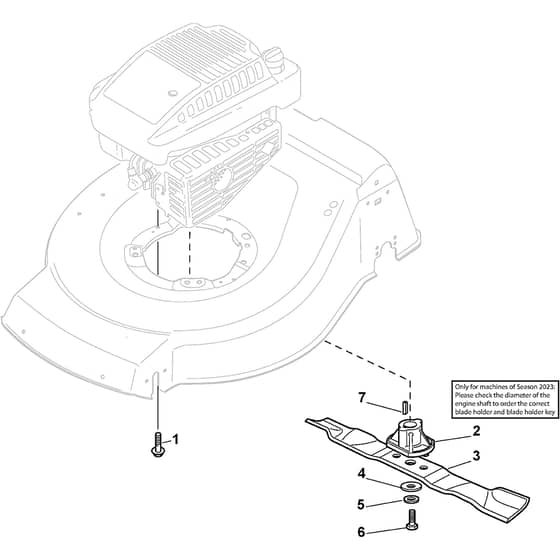

LINER 18 - 2012-2013 - 299484027/AT2 - Atco Rotary Mower Blade Diagram

Name: LINER 18 - 2012-2013 - 299484027/AT2 - Atco Rotary Mower Blade Diagram
SKU: liner_18_299484027_at2_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. liner_18_299484027_at2_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LINER 18 - 2012-2013 - 299484027/AT2 - Atco Rotary Mower Blade Diagram

Description

Atco LINER 18 Parts Diagram

Product Name - LINER 18

Model Year - 2012-2013

Model Type - NTL 484-R

Art.N - 299484027/AT2

Engine Model -

	Part No.	Details
1	MO112735108/1 In stock	Screw	£2.11 £1.76
2	MO122463012/4 In stock	Hub. Crankshaft Ø 22.2 From 01-1-2019	£8.00 £6.67
3	MO181004458/0 In stock	Mulching Blade	£12.48 £10.40
4	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
5	MO112523080/0 In stock	Washer	£1.55 £1.29
6	MO112735698/0 In stock	Screw	£1.84 £1.53
7	MO112139100/0 In stock	Woodruff Key 4 X 6.5 D.16 Uni6606 C40	£1.55 £1.29
