LINER 16SH - 2015-2018 - 299439037/AT5 - Atco Rotary Mower Grasscatcher Diagram

Description

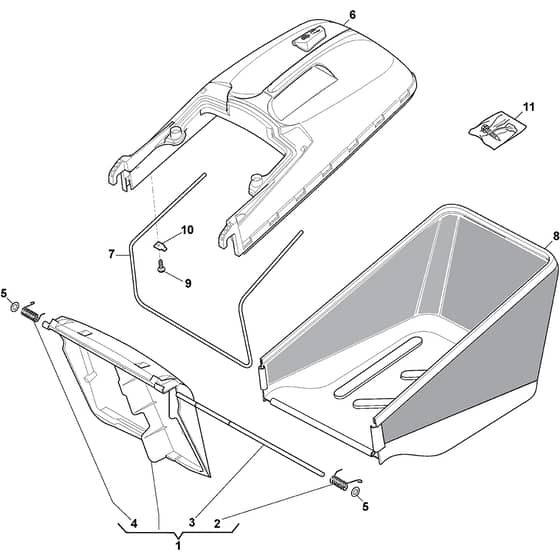

Atco LINER 16SH Parts Diagram

Product Name - LINER 16SH

Model Year - 2015-2018

Model Type - NTL 434 TR-R

Art.N - 299439037/AT5

Engine Model - Honda GCV160 OHC Autochoke

	Part No.	Details
1	MO381008081/2 Available to backorder	Stone Guard. Black	£22.38 £18.65
2	MO122450466/0 Available to backorder	Left Spring	£1.84 £1.53
3	MO122517882/0 Available to backorder	Pin	£6.64 £5.53
4	MO122450465/0 Available to backorder	Right Spring	£1.84 £1.53
5	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
6	MO381486014/0 Available to backorder	Grass-Box. Upper Part	£21.41 £17.84
7	MO122608527/0 Available to backorder	Grassc. Lower Stiff. 48 Roller	£11.41 £9.51
8	MO181002227/0 Available to backorder	Fabric Grasscatcher Wip Roller Black Standard Black	£52.08 £43.40
9	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
10	MO322545159/0 Available to backorder	Plate	£1.63 £1.36
11	MO381008707/0 Available to backorder	Grasscatcher Screw Kit	£9.01 £7.51
