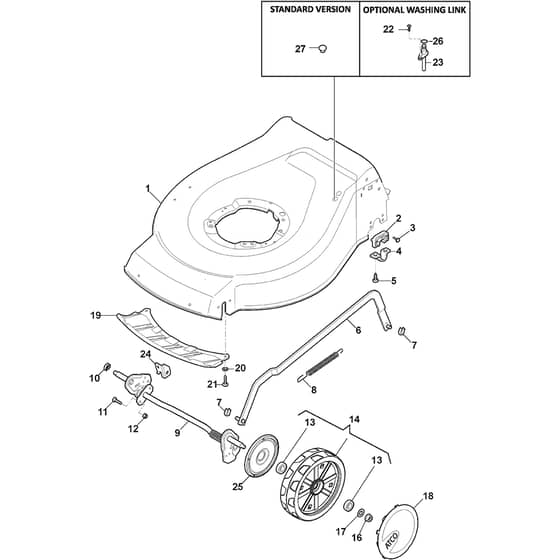

LINER 16SH - 2015-2018 - 299439037/AT5 - Atco Rotary Mower Deck Diagram

Name: LINER 16SH - 2015-2018 - 299439037/AT5 - Atco Rotary Mower Deck Diagram
SKU: liner_16sh_299439037_at5_deck-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LINER 16SH - 2015-2018 - 299439037/AT5 - Atco Rotary Mower Deck Diagram

Description

Atco LINER 16SH Parts Diagram

Product Name - LINER 16SH

Model Year - 2015-2018

Model Type - NTL 434 TR-R

Art.N - 299439037/AT5

Engine Model - Honda GCV160 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004724/0 Available to backorder	Red Deck From 01-9-2016	£175.97 £146.64
2	MO322785304/1 Available to backorder	Support From 01-9-2015	£2.26 £1.88
4	MO322545154/0 Available to backorder	Plate	£1.55 £1.29
5	MO112728697/0 In stock	Screw	£1.55 £1.29
6	MO381002052/0 Available to backorder	Rod. Height Adjustment From 01-9-2017	£39.42 £32.85
7	MO112436050/0 In stock	Plate	£1.82 £1.52
8	MO122446193/0 Available to backorder	Spring	£4.61 £3.84
9	MO381302927/0 Available to backorder	Axle. Rear Wheels From 01-9-2017	£32.38 £26.98
10	MO122171002/0 Available to backorder	Spacer	£1.55 £1.29
11	MO112727803/0 Available to backorder	Screw	£1.55 £1.29
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
14	MO381007455/1 Available to backorder	Wheel - Short Hub From 01-9-2012	£17.17 £14.31
16	MO112155000/0 In stock	Nut	£1.55 £1.29
17	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
18	MO322110706/0 Available to backorder	Hub Cap Grey	£2.68 £2.23
19	MO322500108/0 Available to backorder	Front Combi	£6.05 £5.04
20	MO112523000/1 Available to backorder	Washer	£1.55 £1.29
21	MO112728124/0 Available to backorder	Screw	£1.55 £1.29
22	MO112728450/0 In stock	Screw Only With Muclhing	£1.55 £1.29
23	MO322034002/0 Available to backorder	Washing Connection Only With Muclhing	£1.69 £1.41
24	MO325755031/2 Available to backorder	Bracket	£5.06 £4.22
25	MO322600247/0 Available to backorder	Protection. Wheel	£8.18 £6.82
26	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
27	MO322820077/1 Available to backorder	Pvc Deck Cap	£1.55 £1.29
