LINER 16 - 2014-2020 - 299434027/AT4 - Atco Rotary Mower Blade Diagram

Back

LINER 16 - 2014-2020 - 299434027/AT4 - Atco Rotary Mower Blade Diagram

Name: LINER 16 - 2014-2020 - 299434027/AT4 - Atco Rotary Mower Blade Diagram
SKU: liner_16_299434027_at4_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. liner_16_299434027_at4_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

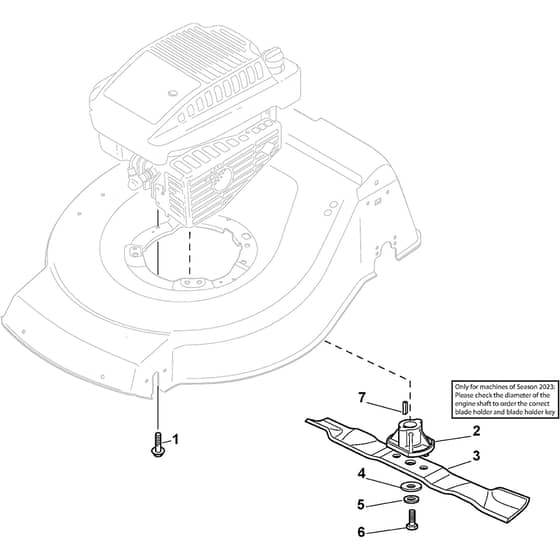

LINER 16 - 2014-2020 - 299434027/AT4 - Atco Rotary Mower Blade Diagram

Description

Atco LINER 16 Parts Diagram

Product Name - LINER 16

Model Year - 2014-2020

Model Type - NTL 434-R

Art.N - 299434027/AT4

Engine Model - B&S 450E Series

	Part No.	Details
1	MO112735108/1 In stock	Screw	£2.11 £1.76
2	MO122463012/4 In stock	Hub. Crankshaft Ø 22.2 From 01-1-2019	£8.00 £6.67
3	MO181004341/3 In stock	Mulching Blade	£11.50 £9.58
4	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
5	MO112523080/0 In stock	Washer	£1.55 £1.29
6	MO112735698/0 In stock	Screw	£1.84 £1.53
7	MO112139100/0 In stock	Woodruff Key 4 X 6.5 D.16 Uni6606 C40	£1.55 £1.29
