LH 48 PK - - Efco Rotary Mower Complete illustrated parts list Diagram

Description

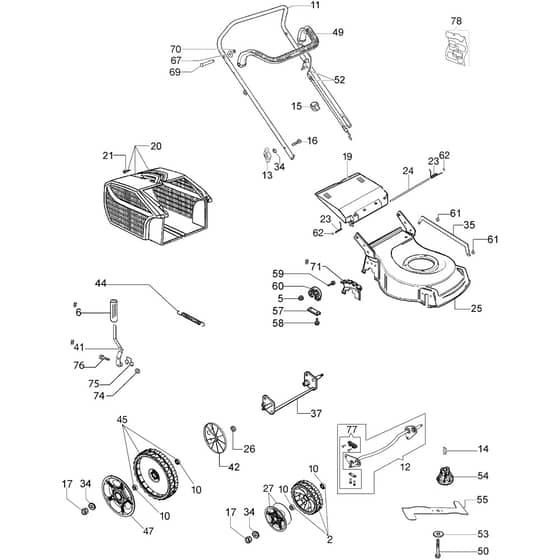

Efco LH 48 PK Parts Diagram

Model Year -

	Part No.	Details
2	EF66070722R Available to backorder	Complete Wheel	£24.00 £20.00
6	EF66070954R In stock	Handle	£9.96 £8.30
10	EF66030081R Available to backorder	Bearing	£5.64 £4.70
11	EF66060421BR Available to backorder	Handlebar	£61.56 £51.30
12	EF66070749 Available to backorder	Axle Kit	£57.24 £47.70
13	EF66070317R Available to backorder	Tightening Handle	£9.96 £8.30
14	EF8202126R Available to backorder	Key	£2.00 £1.67
15	EF66060231 Available to backorder	Band	£3.14 £2.62
16	EF3910015R Available to backorder	Screw	£2.00 £1.67
19	EF66110014R Available to backorder	Shutter Nero. Black	£25.68 £21.40
20	EF66112001R Available to backorder	Complete Grassbag	£54.48 £45.40
21	EF3960013R Available to backorder	Screw	£3.01 £2.51
23	EF66110610 Available to backorder	Kit Spring	£8.52 £7.10
24	EF66110026R Available to backorder	Deflector Axle	£5.64 £4.70
27	EF66070727R Available to backorder	Wheel Cover	£5.40 £4.50
34	EF3916008R Available to backorder	Washer	£1.98 £1.65
35	EF66110100 Available to backorder	Rod	£19.68 £16.40
37	EF66070287AR Available to backorder	Rear Axle	£92.04 £76.70
41	EF66070286CR In stock	Lever	£19.76 £16.47
42	EF66070756 Available to backorder	Wheel Cover	£11.52 £9.60
44	EF66070036R Available to backorder	Spring	£5.64 £4.70
45	EF66071056R Available to backorder	Complete Wheel	£34.08 £28.40
49	EF66060316AR In stock	Brake Lever	£25.68 £21.40
50	EF3906150R Available to backorder	Screw	£5.64 £4.70
52	EF66030276R In stock	Engine Break Cable	£17.78 £14.82
53	EF66060384R Available to backorder	Washer	£3.84 £3.20
54	EF66030003AR Available to backorder	Blade Hub	£13.44 £11.20
55	EF66110594R In stock	Mulching Blade	£27.35 £22.79
57	EF66030039 Available to backorder	Plate	£3.01 £2.51
58	EF3960031R Available to backorder	Screw	£1.08 £0.90
59	EF3801022R Available to backorder	Screw	£0.48 £0.40
60	EF66110781 Available to backorder	Support	£9.00 £7.50
61	EF3045035R Available to backorder	Retainer Washer	£3.01 £2.51
62	EF3045034R In stock	Retainer Washer	£1.13 £0.94
67	EF3064037 Available to backorder	Washer	£1.08 £0.90
70	EF3024006 Available to backorder	Snap Ring	£1.08 £0.90
71	EF66070291R Available to backorder	Sector	£15.24 £12.70
74	EF3914006R Available to backorder	Nut	£1.08 £0.90
75	EF8203374R Available to backorder	Spring	£10.44 £8.70
76	EF3906164R Available to backorder	Screw	£2.80 £2.33
77	EF66070744 Available to backorder	Support Set	£11.16 £9.30
79	EF66070439A Available to backorder	Lever Group	£35.52 £29.60
