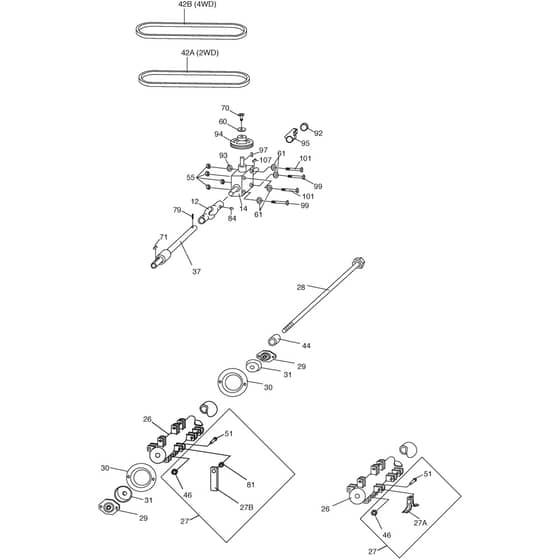

Stiga Lawn Rake EL Complete Park 2+4WD Parts Diagram

Product Name - Lawn Rake EL Park 2+4WD

Model Year - 2012-2024

Model Type - LAR 1405 E

Art.N - 13-3901-11

Engine Model -

	Part No.	Details
12	MO1319-1854-01 Available to backorder	Universal Joint	£274.51 £228.76
14	MO1319-1856-01 Available to backorder	Angle Gearbox	£415.28 £346.07
27	MO1319-1773-01 Available to backorder	Tine Kit (Lawn Rake) Inkl pos 27B.46.51.81	£390.53 £325.44
27	MO1319-1721-01 Available to backorder	Tine-Flail Mower (27A)	£5.23 £4.36
27	MO1319-1772-01 Available to backorder	Tine Kit (Flail Mower) Inkl pos 27A.46.51	£572.34 £476.95
27	MO1319-1738-01 Available to backorder	Tine-Lawn Rake (27B)	£4.03 £3.36
28	MO1319-1722-01 Available to backorder	Screw	£190.03 £158.36
29	MO1319-1628-01 Available to backorder	Bearing	£94.32 £78.60
30	MO1319-1766-01 Available to backorder	Guard Plate	£68.99 £57.49
31	MO1319-1767-01 Available to backorder	Guard	£76.02 £63.35
37	MO1319-1862-01 Available to backorder	Drive Shaft	£56.32 £46.93
42	MO1134-9103-01 In stock	Drive Belt (42A) 2WD	£46.03 £38.36

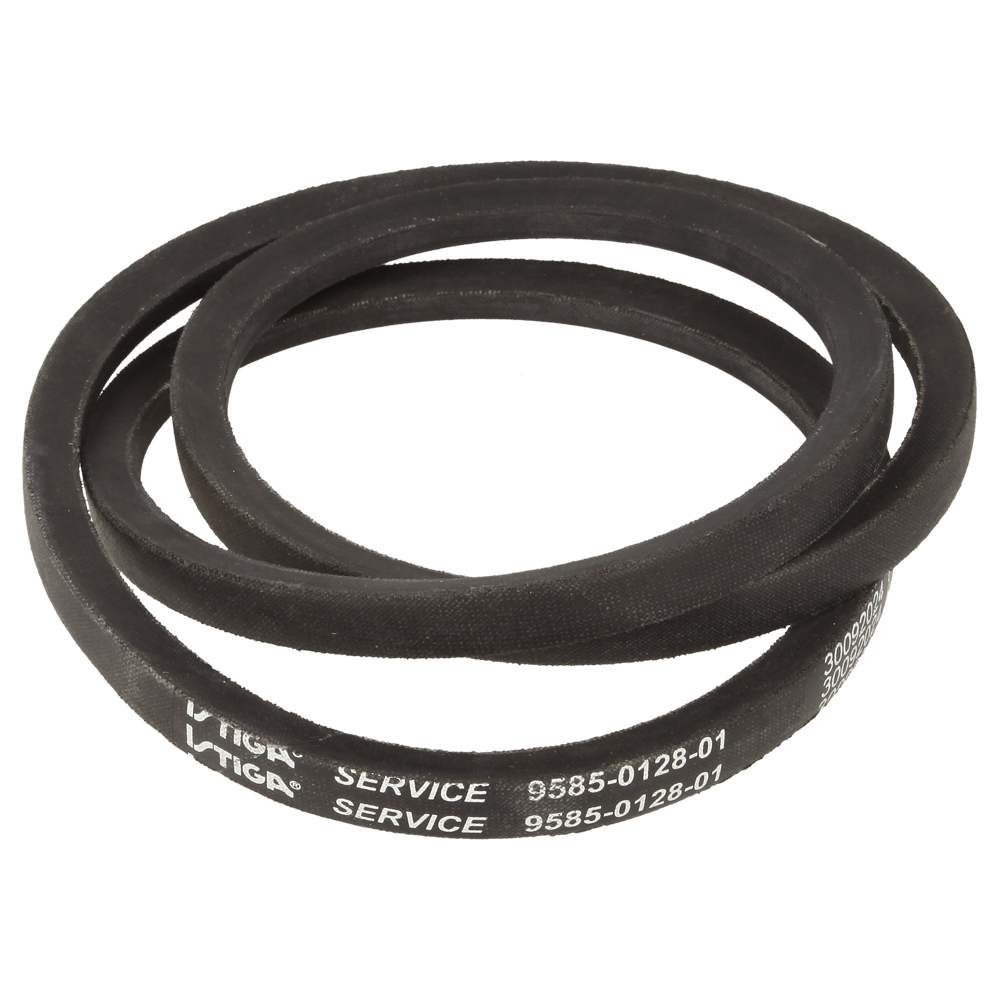

42	MO1134-9069-01 Available to backorder	Belt (42B) Replaced by Service Code. 1134-9096-01	£29.63 £24.69
44	MO1319-1732-01 Available to backorder	Collar	£84.46 £70.38
46	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
51	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
55	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
60	MO1319-1879-01 Available to backorder	Washer	£21.54 £17.95
61	MO112521360/0 In stock	Washer	£1.55 £1.29
70	MO1319-1883-01 Available to backorder	Screw	£5.33 £4.44
79	MO1319-1881-01 Available to backorder	Spring Pin	£1.33 £1.11
81	MO1319-1701-01 Available to backorder	Collar Steel	£4.78 £3.98
94	MO1319-1855-01 Available to backorder	Belt Pulley	£109.79 £91.49
95	MO1319-1864-01 Available to backorder	Shaft Guard	£25.49 £21.24
97	MO1319-1884-01 Available to backorder	Key	£12.53 £10.44
99	MO112794985/0 Available to backorder	Screw L . 120 mm	£4.08 £3.40
107	MO1319-1903-01 Available to backorder	Key	£8.53 £7.11
