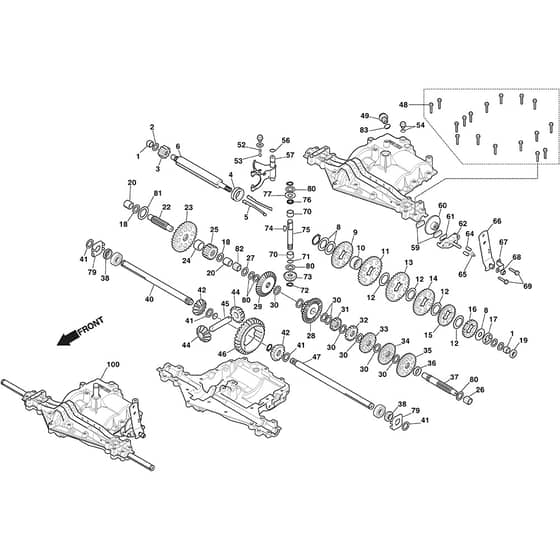

Castel Garden L135STM Parts Diagram

Product Name - L135STM

Model Year - 2022

Model Type - SDX 98

Art.N - 2T0510473/SBR

Engine Model -

	Part No.	Details
1	MO118870276/0 Available to backorder	Shaft Sleeve	£9.55 £7.96
2	MO118870286/0 Available to backorder	Washer	£5.68 £4.73
3	MO118870306/0 Available to backorder	Gear	£8.66 £7.22
4	MO118870270/0 Available to backorder	Bushing	£18.50 £15.42
5	MO118870268/0 Available to backorder	Clutch Key	£31.42 £26.18
6	MO118870265/0 Available to backorder	Shaft	£78.53 £65.44
8	MO118870289/0 Available to backorder	Washer	£7.09 £5.91
9	MO118870305/0 Available to backorder	Gear	£14.56 £12.13
10	MO118870266/0 Available to backorder	Spacer	£17.28 £14.40
11	MO118870302/0 Available to backorder	Gear	£14.56 £12.13
12	MO118870287/0 Available to backorder	Gasket	£3.34 £2.78
13	MO118870303/0 Available to backorder	Gear	£11.89 £9.91
14	MO118870304/0 Available to backorder	Gear	£10.64 £8.87
15	MO118870317/0 Available to backorder	Gear	£10.38 £8.65
16	MO118870319/0 Available to backorder	Gear	£6.56 £5.47
17	MO118870312/0 Available to backorder	Spacer	£3.14 £2.62
18	MO118870325/0 Available to backorder	Spacer	£1.70 £1.42
19	MO118870261/0 Available to backorder	Oil Seal. 14X26X7(Sog)	£7.60 £6.33
20	MO118870277/0 Available to backorder	Shaft Sleeve	£9.55 £7.96
22	MO118870275/0 Available to backorder	Shaft. Idler	£26.22 £21.85
23	MO118870307/0 Available to backorder	Gear	£21.86 £18.22
24	MO118870279/0 Available to backorder	Bushing	£7.79 £6.49
25	MO118870308/0 Available to backorder	Gear	£11.28 £9.40
26	MO118870278/0 Available to backorder	Shaft Sleeve	£9.55 £7.96
27	MO118870285/0 Available to backorder	Washer	£5.68 £4.73
28	MO118870297/0 Available to backorder	Gear	£25.26 £21.05
29	MO118870298/0 Available to backorder	Gear	£16.80 £14.00
30	MO118870283/0 Available to backorder	Washer	£5.68 £4.73
31	MO118870299/0 Available to backorder	Gear	£3.20 £2.67
32	MO118870300/0 Available to backorder	Gear	£5.26 £4.38
33	MO118870301/0 Available to backorder	Gear	£8.94 £7.45
34	MO118870316/0 Available to backorder	Gear	£8.82 £7.35
35	MO118870318/0 Available to backorder	Gear	£11.60 £9.67
36	MO118870269/0 Available to backorder	Spacer	£5.89 £4.91
37	MO118870272/0 Available to backorder	Drive Shaft	£47.10 £39.25
38	MO118870260/0 Available to backorder	Oil Seal. 19X32X7(Sog)	£8.46 £7.05
40	MO118870274/0 Available to backorder	Wheel Axle. Right	£33.73 £28.11
41	MO118870295/0 Available to backorder	Washer	£5.68 £4.73
42	MO118870311/0 Available to backorder	Gear	£48.48 £40.40
44	MO118870310/0 Available to backorder	Gear	£48.48 £40.40
45	MO118870267/0 Available to backorder	Shaft	£29.36 £24.47
46	MO118870309/0 Available to backorder	Gear	£53.94 £44.95
47	MO118870273/0 Available to backorder	Wheel Axle. Left	£47.10 £39.25
49	MO118870263/0 Available to backorder	Neutral Switch	£24.59 £20.49
52	MO118870324/0 Available to backorder	Spring. Detent	£1.38 £1.15
53	MO118870271/0 Available to backorder	Detent Ball	£1.38 £1.15
54	MO118870258/0 Available to backorder	Plug	£1.98 £1.65
56	MO118870257/0 Available to backorder	O-Ring	£1.57 £1.31
57	MO118870321/0 Available to backorder	Shifter	£46.56 £38.80
59	MO118870314/0 In stock	Brake Pad	£3.55 £2.96
60	MO118870315/0 Available to backorder	Disc Brake	£9.17 £7.64
61	MO118870294/0 Available to backorder	Spacer	£1.22 £1.02
62	MO118870313/0 Available to backorder	Jaw. Brake	£7.76 £6.47
64	MO118870281/0 Available to backorder	Grub Screw	£2.53 £2.11
65	MO118870323/0 Available to backorder	Spring	£1.38 £1.15
66	MO118870322/0 Available to backorder	Lever	£26.29 £21.91
67	MO118870293/0 Available to backorder	Bracket	£4.24 £3.53
70	MO118870326/0 Available to backorder	Bearing	£6.90 £5.75
71	MO118870259/0 Available to backorder	O-Ring	£1.84 £1.53
73	MO118870296/0 Available to backorder	Gear	£14.34 £11.95
74	MO118870320/0 Available to backorder	Key	£3.82 £3.18
75	MO118870280/0 Available to backorder	Shaft	£18.70 £15.58
76	MO118870262/0 Available to backorder	Oil Seal. 21X15X3	£3.55 £2.96
77	MO118870288/0 Available to backorder	Gasket	£2.93 £2.44
79	MO118870256/0 Available to backorder	Washer	£20.34 £16.95
80	MO118870291/0 Available to backorder	Washer	£1.57 £1.31
81	MO118870290/0 Available to backorder	Washer	£1.57 £1.31
82	MO118870282/0 Available to backorder	Bushing	£6.64 £5.53
83	MO118870264/0 Available to backorder	O-Ring	£1.22 £1.02
85	MO118870292/0 Available to backorder	Gasket	£1.57 £1.31
100	MO118400922/1 Available to backorder		£1,405.63 £1,171.36
