L135STM - 2022 - 2T0510473/SBR - Castel Garden Ride On Mower Optionals Diagram

Name: L135STM - 2022 - 2T0510473/SBR - Castel Garden Ride On Mower Optionals Diagram
SKU: l135stm_2t0510473_sbr_optionals-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

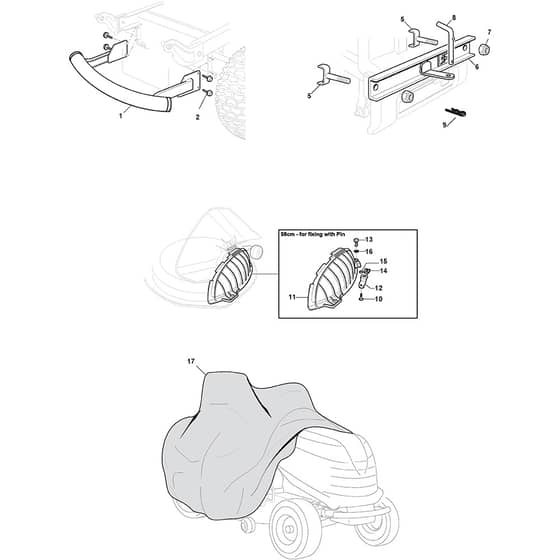

L135STM - 2022 - 2T0510473/SBR - Castel Garden Ride On Mower Optionals Diagram

Description

Castel Garden L135STM Parts Diagram

Product Name - L135STM

Model Year - 2022

Model Type - SDX 98

Art.N - 2T0510473/SBR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382869038/0 Available to backorder	Muffler Protection	£39.42 £32.85
2	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
5	MO382650211/0 Available to backorder	Stiffening	£5.06 £4.22
6	MO382033111/0 Available to backorder	Rod	£33.79 £28.16
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO125510021/1 In stock	Hitch Pin	£11.12 £9.27
9	MO124487999/0 Available to backorder	Spring Pin	£1.82 £1.52
10	MO112815206/0 Available to backorder	Screw	£1.55 £1.29
11	MO325140105/0 In stock	Deflector	£12.67 £10.56
12	MO325785471/0 Available to backorder	Pin	£2.95 £2.46
13	MO125580040/0 In stock	Stake	£3.10 £2.58
14	MO118737221/0 In stock	Plate	£7.03 £5.86
15	MO112292102/0 In stock	Nut	£1.69 £1.41
16	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
17	MO1134-9177-01 In stock	Ride-On Mower Cover [Stiga]	£66.37 £55.31
