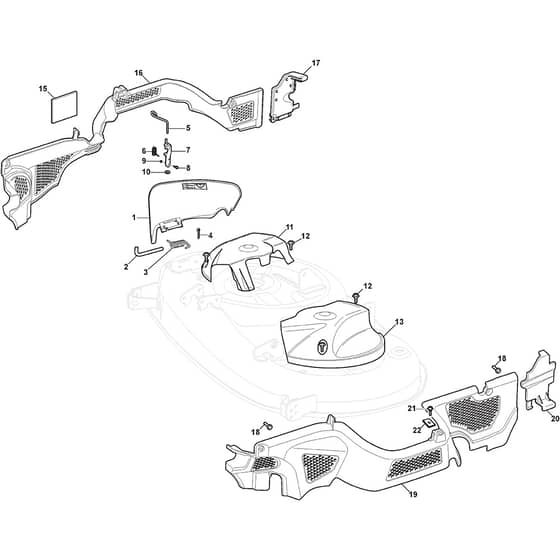

L135STM - 2022 - 2T0510473/SBR - Castel Garden Ride On Mower Belt Protection Diagram

Name: L135STM - 2022 - 2T0510473/SBR - Castel Garden Ride On Mower Belt Protection Diagram
SKU: l135stm_2t0510473_sbr_belt_protection-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

L135STM - 2022 - 2T0510473/SBR - Castel Garden Ride On Mower Belt Protection Diagram

Description

Castel Garden L135STM Parts Diagram

Product Name - L135STM

Model Year - 2022

Model Type - SDX 98

Art.N - 2T0510473/SBR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325600077/3 In stock	Ejection Guard	£18.43 £15.36
2	MO125510073/0 Available to backorder	Fulcrum Pin	£7.67 £6.39
3	MO125430242/1 In stock	Spring	£3.38 £2.82
4	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
5	MO125318355/0 Available to backorder	Fulcrum Pin	£6.05 £5.04
6	MO125430288/0 Available to backorder	Spring	£9.58 £7.98
7	MO325774719/0 Available to backorder	Fulcrum Clamp	£6.20 £5.17
8	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
11	MO325600078/0 Available to backorder	Right Belt Protection Carter	£9.43 £7.86
12	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
13	MO325600079/0 Available to backorder	Left Belt Protection	£11.12 £9.27
15	MO325600084/0 Available to backorder	Guard only 98cm	£1.82 £1.52
16	MO325060154/0 Available to backorder	Case	£32.38 £26.98
17	MO325600082/0 Available to backorder	Guard	£3.67 £3.06
19	MO325060155/0 Available to backorder	Case	£32.38 £26.98
20	MO325600083/0 Available to backorder	Guard	£3.67 £3.06
21	MO125943011/0 Available to backorder	Screw	£9.50 £7.92
22	MO112437506/0 Available to backorder	Double Plate	£2.53 £2.11
