L135HST - 2022 - 2T0610473/SBR - Castel Garden Ride On Mower Fuel Pump Diagram

Description

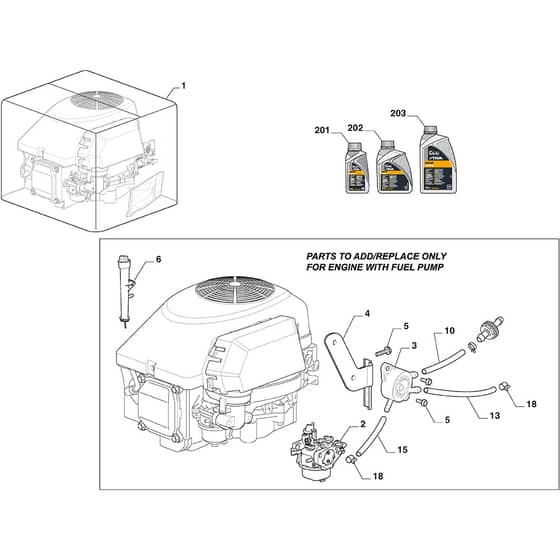

Castel Garden L135HST Parts Diagram

Product Name - L135HST

Model Year - 2022

Model Type - SDX 98 Hydro

Art.N - 2T0610473/SBR

Engine Model -

	Part No.	Details
1	MO118550439/1 Available to backorder	Engine Assembled	£653.70 £544.75
2	MO118552515/0 Available to backorder	Carburettor	£85.92 £71.60
3	MO118551578/0 Available to backorder	Fuel Pump	£61.93 £51.61
4	MO118550348/1 Available to backorder	Fuel Pump Stifferning	£24.37 £20.31
5	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
6	MO118550444/1 Available to backorder	Oil Filler Assy	£23.81 £19.84
201	MO1111-9237-01 In stock	Engine Oil. 10W-30 - 0.6 L	£6.91 £5.76
201	MO1111-9234-01 In stock	Engine Oil. Sae 30 - 0.6 L	£6.64 £5.53
202	MO1111-9235-01 In stock	Engine Oil. Sae 30 - 1 L	£9.23 £7.69
203	MO1111-9238-01 In stock	Engine Oil. 10W-30 - 1.4 L	£13.57 £11.31
203	MO1111-9236-01 Available to backorder	Engine Oil. Sae 30 - 1.4 L	£11.82 £9.85
