L 135BH - 2012-2020 - 2T0620273/SBR - Castel Garden Ride On Mower Transmission Diagram

Name: L 135BH - 2012-2020 - 2T0620273/SBR - Castel Garden Ride On Mower Transmission Diagram
SKU: l_135bh_2t0620273_sbr_transmission-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

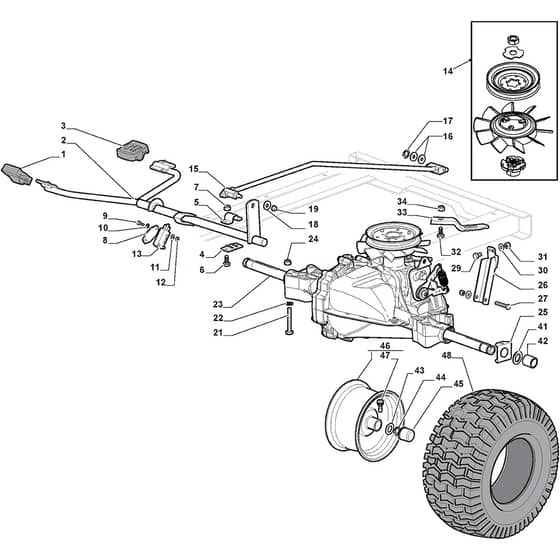

L 135BH - 2012-2020 - 2T0620273/SBR - Castel Garden Ride On Mower Transmission Diagram

Description

Castel Garden L 135BH Parts Diagram

Product Name - L 135BH

Model Year - 2012-2020

Model Type - SDX 98 Hydro

Art.N - 2T0620273/SBR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110274/0 Available to backorder	Clamp Cover Front	£7.19 £5.99
3	MO325110331/0 Available to backorder	Clamp Cover Rear	£7.03 £5.86
4	MO325785350/0 Available to backorder	Support	£1.55 £1.29
5	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
6	MO112791213/1 In stock	Screw	£1.55 £1.29
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO327546019/0 Available to backorder	Neutral Switch Fixing Plate	£1.40 £1.17
9	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
10	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
11	MO112581100/0 Available to backorder	Grower	£1.33 £1.11
12	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
13	MO119410609/1LC In stock	Microswitch	£27.17 £22.64
14	MO118802723/0 Available to backorder	Fan Kit	£161.89 £134.91
15	MO382000573/1 Available to backorder	Control Rod Assy From 01-9-2011	£30.97 £25.81
16	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
17	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
18	MO112523040/0 In stock	Washer	£1.49 £1.24
21	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
22	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
23	MO118400919/2 Available to backorder	Hydrostatic Transaxle - Hydrogear (T2-Adbf-2X3C-17X1) From 01-9-2011	£892.08 £743.40
25	MO325670026/0 Available to backorder	Washer	£7.46 £6.22
26	MO325785349/1 Available to backorder	Support From 01-9-2011	£12.73 £10.61
27	MO112691700/0 In stock	Screw	£1.82 £1.52
29	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
30	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
31	MO112155000/0 In stock	Nut	£1.55 £1.29
33	MO325318251/0 In stock	Lever	£3.24 £2.70
42	MO125160055/0 Available to backorder	Spacer To 31-8-2013	£2.40 £2.00
42	MO125160058/1 Available to backorder	Spacer From 01-9-2013	£4.08 £3.40
43	MO125670005/2 In stock	Washer	£4.08 £3.40
44	MO112001010/0 Available to backorder	Circlip	£1.82 £1.52
45	MO322110233/0 In stock	Hub Cover Standard Black Cover	£1.70 £1.42
46	MO182001509/1 Available to backorder	Rear Wheel Rimm	£82.61 £68.84
47	MO125950000/0 Available to backorder	Pneumatic Valve	£5.35 £4.46
