Billy Goat KV650HFB - KV Vacuum Main Diagram

Name: Billy Goat KV650HFB - KV Vacuum Main Diagram
SKU: kv650hfb_kv_vacuum_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat KV650HFB - KV Vacuum Main Diagram

Description

KV650HFB Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BG900344 Available to backorder	Screwcap 3/8-24X1 1/2" Gr 8	£2.48 £2.07
1	BG891100-S Available to backorder	Main Frame Housing New Kd	£341.72 £284.77
2	BG891110-S Available to backorder	Nozzle Assembly Tkv	£240.96 £200.80
3	BG891600 Available to backorder	Axle Wa Kv Micro	£186.74 £155.62
4	BG891007-1-S Available to backorder	Plate Top Engine Kv	£88.24 £73.53
5	BG891108-S Available to backorder	Impeller 1275 Wa Push Vac	£284.78 £237.32
6	BG890148-S Available to backorder	Door Exhaust Assy Raw	£86.04 £71.70
7	BG8172011 In stock	Washer 1/2" Sae Z/P	Was £1.10 £0.92 Special Price £0.73 £0.61
8	BG900760-S In stock	Wheel Assy 12" X 25" Tread	£96.60 £80.50
9	BG840069 Available to backorder	Engine 65 Hp Honda Gsv190An1L	£679.44 £566.20
10	BG891050 Available to backorder	Lower Handle Kv	£61.16 £50.97
11	BG891054-S Available to backorder	Handle Upper Kv	£143.94 £119.95
12	BG890630 Available to backorder	Quick Disconnect	£96.40 £80.33
15	BG430342 Available to backorder	Grip Handle 1"X 95" Lg	£6.38 £5.32
17	BG100346 Available to backorder	Label Read	£3.71 £3.09
18	BG400424 Available to backorder	Label Warning Danger	£3.71 £3.09
19	BG810736 Available to backorder	Label Danger Flying Debris	£3.71 £3.09
21	BG891132 Available to backorder	Debris Bag - No Zipper KV1	£282.60 £235.50
23	BG891027-S Available to backorder	Cable Throttle Assy 42"	£32.64 £27.20
25	BG891071 Available to backorder	Bolt J 3/8-16 X 6"	£8.22 £6.85
26	BG900407 Available to backorder	Ty Wrap	£0.78 £0.65
27	BG8177012 Available to backorder	Washer Lock 3/8" St Med	£1.20 £1.00
28	BG5108837 Available to backorder	Key 3/16 Sq X 125	£3.80 £3.17
29	BG840071 Available to backorder	Nut 1/4-20 Acorn	£2.66 £2.22
31	BG890359 Available to backorder	Screwcap 1/4 - 20 X 5/8 Hwh	£1.34 £1.12
32	BG8171003 Available to backorder	Washer 5/16 Flatwasher Z/P	£0.78 £0.65
33	BG8041031 Available to backorder	Screwcap 5/16-18 X 175 Zp	£0.97 £0.81
34	BG8160002 Available to backorder	Nut Lock 5/16-18	£0.97 £0.81
35	BG8041004 Available to backorder	Screwcap 1/4-20 X 3/4"	£0.97 £0.81
36	BG8172007 Available to backorder	Washer 1/4" Sae Zp	£0.78 £0.65
37	BG8160001 Available to backorder	Nylon Insert Locknut 1/4-20 Unc	£0.97 £0.81
38	BG890530 Available to backorder	1/2-13 Cap Nut Np W /Patch	£6.12 £5.10

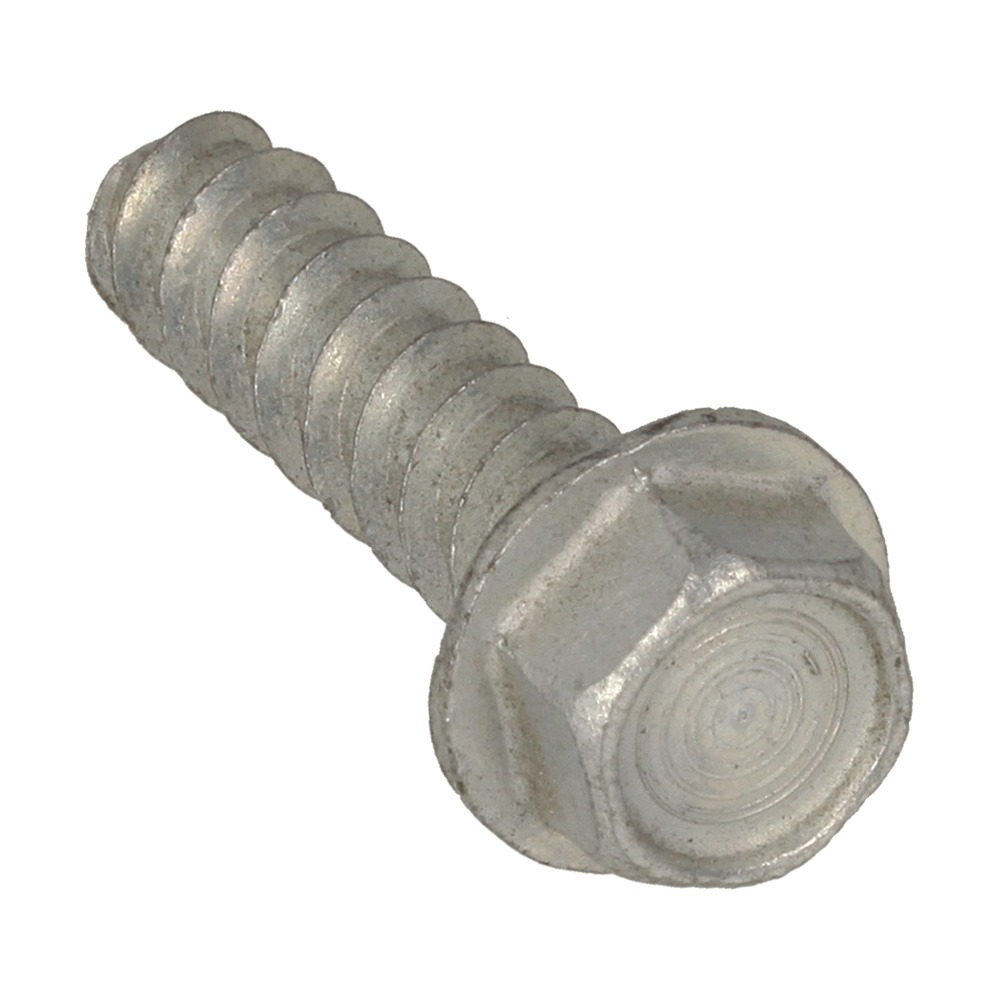

40	BG891039 Available to backorder	Screw Plastic 1/4-10 X 1	£1.34 £1.12
41	BG890408 Available to backorder	Screw 3/8 X 1 1/2 Taptite	£3.12 £2.60
42	BG891002 Available to backorder	Nozzle Top Half Kv	£117.18 £97.65
43	BG891003 Available to backorder	Nozzle Bottom Half Kv	£88.56 £73.80
44	BG900146-01 In stock	Plug Housing Kd Lb	£8.90 £7.42
45	BG80112110 Available to backorder	Screw Self Tapping 10-24 X 1/2	£0.97 £0.81
46	BG891045 Available to backorder	Label Kv Push	£4.74 £3.95
47	BG8041006 Available to backorder	Screwcap 1/4-20 X 1"	£0.97 £0.81
48	BG891208 Available to backorder	Bracket Nozzle Kv	£11.52 £9.60
50	BG890616 Available to backorder	Spacer 15 Od X 875 Id X 975 Thk	£12.84 £10.70

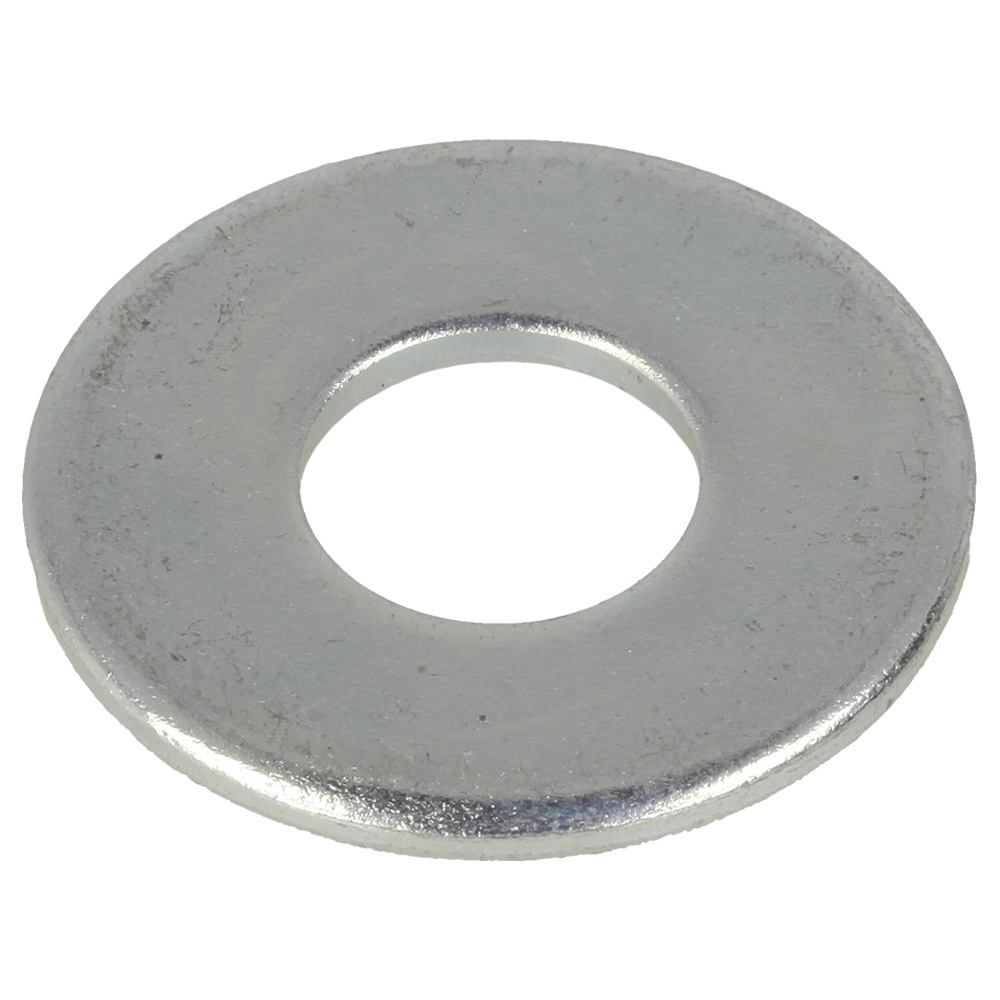

52	BG8171006 Available to backorder	Washer 1/2" Fc	£1.20 £1.00

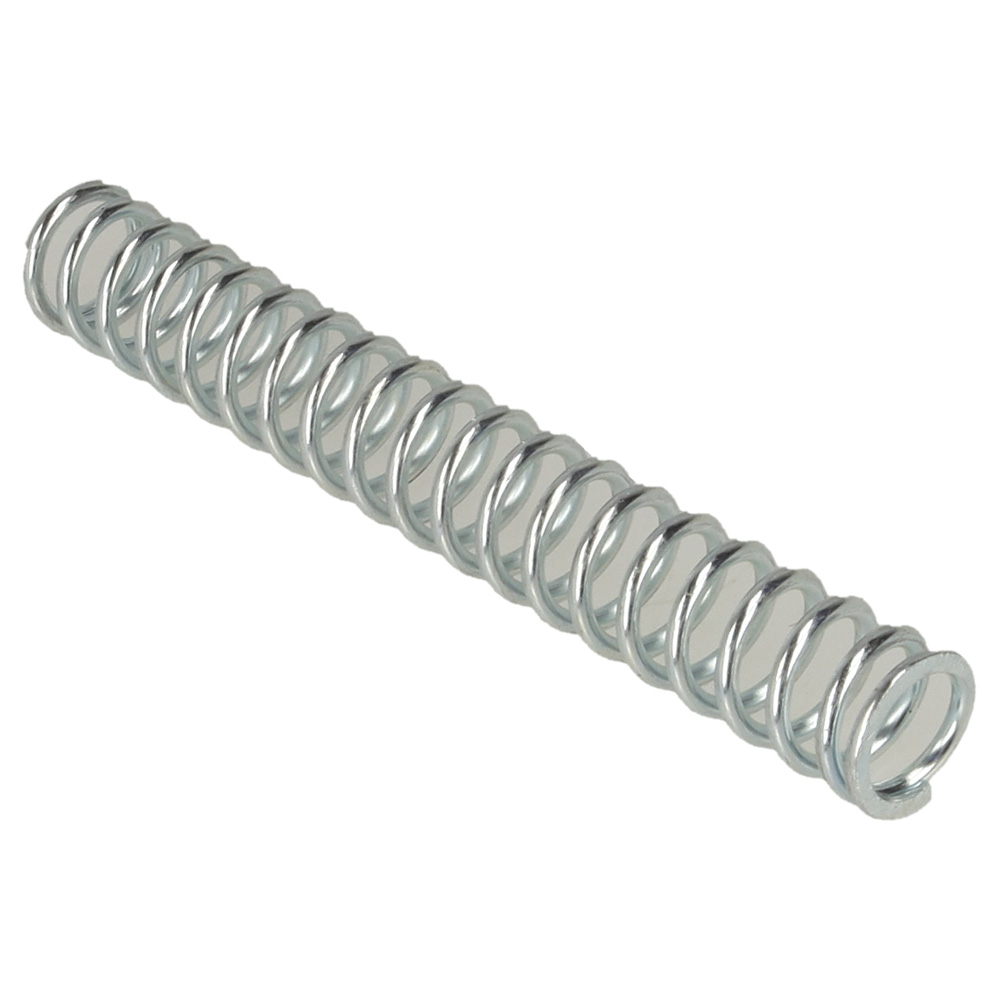

53	BG891072 Available to backorder	Spring Compression	£4.20 £3.50
54	BG891070 Available to backorder	Knob 3/8-16 Red	£14.57 £12.14
55	BG8161042 Available to backorder	Nut Lock 3/8-16 Thin	£1.20 £1.00

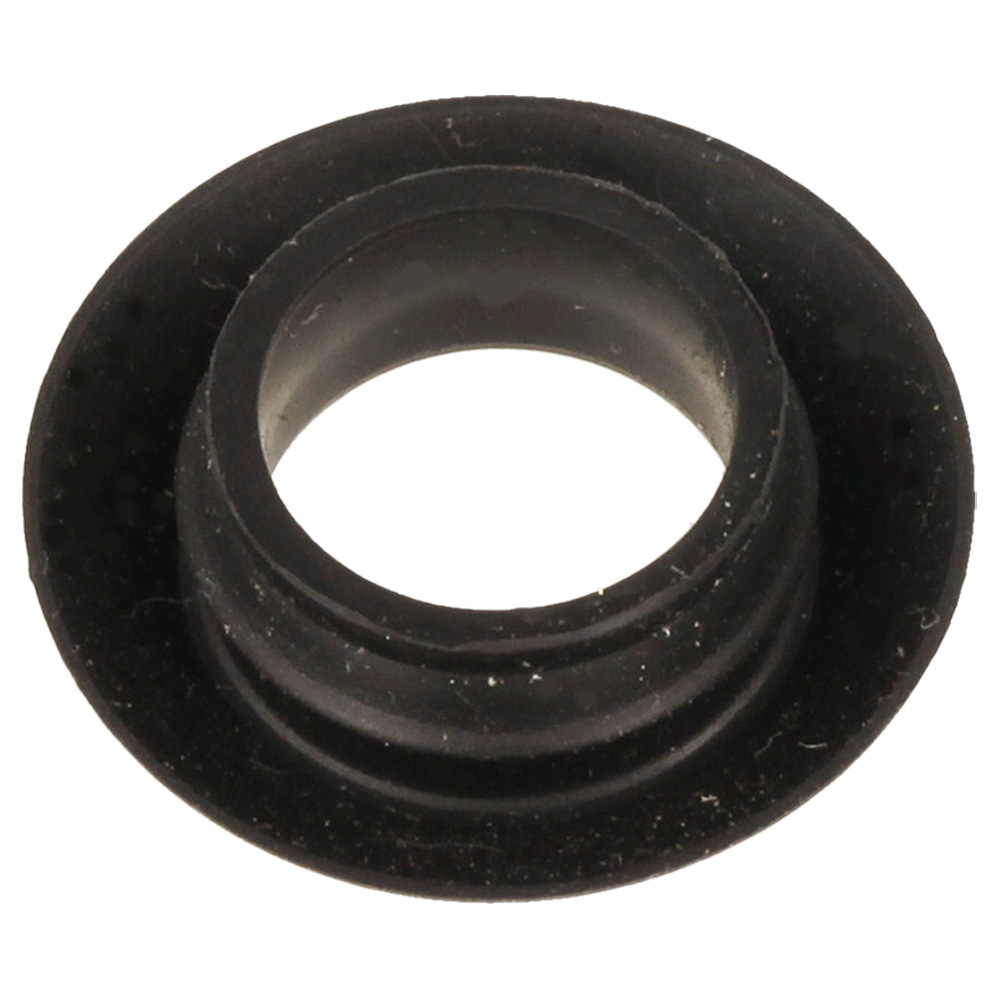

91	BG830176 Available to backorder	Grommet Flange 1/2" Molded	£1.61 £1.34
92	BG400332 Available to backorder	Spring Compression	£2.54 £2.12
