Billy Goat KD612 - Litter Vacuum Main Diagram

Description

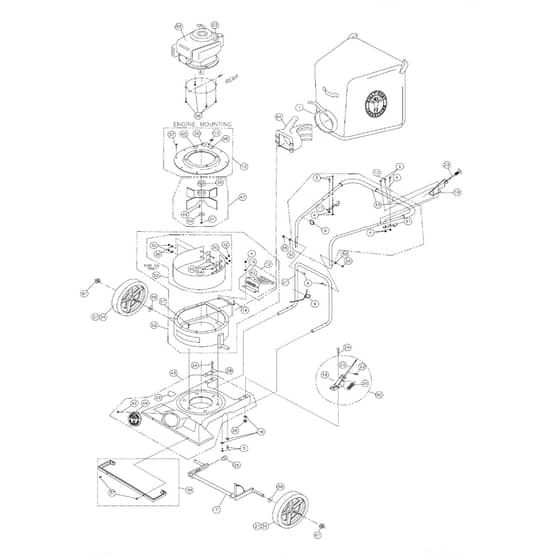

KD612 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG890305 Available to backorder	Pro Debris Bag (Service)	£242.28 £201.90
4	BG8160001 Available to backorder	Nut Lock (1/4 - 20 )	£0.97 £0.81
5	BG8041008 Available to backorder	Screw Cap ( 1/4 - 20 X 1-1/2 Hex )	£1.20 £1.00
7	BG890389 Available to backorder	Axle Height Adjust	£96.24 £80.20
8	BG8041031 Available to backorder	Screw Handle 5/16 - 18 X 1 - 3/4	£0.97 £0.81
9	BG900407 Available to backorder	Clamp Cable	£0.78 £0.65
10	BG8041009 Available to backorder	Screw Cap 1/4 - 20 X 1 3/4	£0.97 £0.81
11	BG900039 Available to backorder	Bar Bag Support	£36.56 £30.47
12	BG890148-S Available to backorder	Door Exhaust Ass’Y	£86.04 £71.70
13	BG890402 Available to backorder	Plate Top Ass’Y	£51.12 £42.60
14	BG8041004 Available to backorder	Screwcap 1/4-20 X3/4 Hcs Zp	£0.97 £0.81
15	BG8172008 Available to backorder	Washer Flat 5/16	£0.78 £0.65
16	BG8171002 Available to backorder	Washer 1/4 Fc Zp	£0.78 £0.65
18	BG890021 Available to backorder	Bracket - Height Adjustment	£40.46 £33.72
20	BG900136 Available to backorder	Spring	£2.48 £2.07
21	BG900760-S In stock	Tire - Only (Per Assy)	£96.60 £80.50
22	BG900471 Available to backorder	Pin - Hair Cotter	£1.28 £1.07
23	BG890019 Available to backorder	Cable Height Adjustment	£51.98 £43.32
24	BG8024054 Available to backorder	Bolt - Carriage 5/16 - 18 X 4 1/2	£0.97 £0.81
26	BG8160002 Available to backorder	Nut Lock 5/16 - 18 Hex	£0.97 £0.81
27	BG890346 Available to backorder	Handle Lower Kd510	£63.64 £53.03
28	BG900933 Available to backorder	Plate Handle Support	£5.81 £4.84
29	BG400424 Available to backorder	Label Danger Cut Finger	£3.71 £3.09
30	BG8171003 Available to backorder	Washer Flat Cut 5/16	£0.78 £0.65
42	BG8123086 Available to backorder	Screw Self Tapping 10 - 24 X 1/2	£1.08 £0.90
43	BG890391 Available to backorder	Nozzle Mainframe Ass’Y	£303.36 £252.80
44	BG900146-01 In stock	Plug	£8.90 £7.42
47	BG900215-S Available to backorder	Impeller Ass’Y	£268.28 £223.57
49	BG900162 Available to backorder	Key	£1.28 £1.07
50	BG400502 Available to backorder	Washer Lock 3/8 Twisted Tooth	£4.20 £3.50
51	BG900154 Available to backorder	Screw Cap 3/8 -24 X 1 Gr 8	£2.92 £2.43
56	BG890408 Available to backorder	Screw Cap 3/8 - 1-1/2 Taptite	£3.12 £2.60
57	BG890359 Available to backorder	Screw Cap 1/4 - 20 X 1/2 Hwh	£1.34 £1.12
58	BG8172011 In stock	Washer Flat 1/2 Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
61	BG890530 Available to backorder	1/2-13 Cap Nut Np W/Patch	£6.12 £5.10
62	BG810736 Available to backorder	Label Danger Flying Material	£3.71 £3.09
64	BG890176 Available to backorder	Connector Bag Quick	£96.40 £80.33
65	BG100346 Available to backorder	Label Read Owner'S Manual	£3.71 £3.09
