Billy Goat KD512SP - Self Propelled Vacuum Chipper Main Diagram

Description

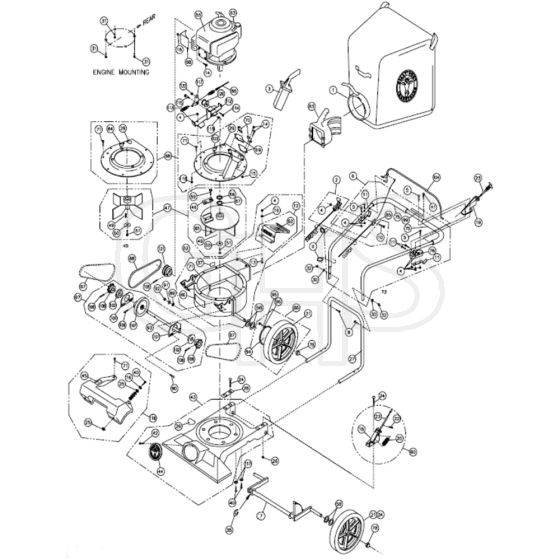

KD512SP Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BG900344 Available to backorder	Screw Cap 3/8-24 X 1 1/2"	£2.48 £2.07
4	BG8160001 Available to backorder	Nut Lock (1/4 - 20)	£0.97 £0.81
5	BG8041008 Available to backorder	Screw Cap (1/4 - 20 X 1- 1/2 Hex)	£1.20 £1.00
6	BG900059 Available to backorder	Handle Assy'	£186.96 £155.80
7	BG890389 Available to backorder	Axle Rear - Frame Wa	£96.24 £80.20
8	BG8041031 Available to backorder	Screw Handle 5/16 - 18 X 1-3/4	£0.97 £0.81
9	BG900407 Available to backorder	Clamp Cable Plastic 1"	£0.78 £0.65
11	BG900039 Available to backorder	Bar Support Bag	£36.56 £30.47
12	BG890148-S Available to backorder	Door Exhaust Assy'	£86.04 £71.70
13	BG8024021 Available to backorder	Bolt - Carriage 1/4 X 3/4	£0.97 £0.81
14	BG8059135 Available to backorder	Screw Cap #10 - 24 X 5/8	£0.97 £0.81
16	BG8171002 Available to backorder	Washer 1/4 Fc Zp	£0.78 £0.65
18	BG890021 Available to backorder	Bracket - Height Adjustment	£40.46 £33.72
20	BG900136 Available to backorder	Spring	£2.48 £2.07
21	BG900659 Available to backorder	Tire - Only (Per Assy') Treaded	£37.40 £31.17
22	BG900471 Available to backorder	Pin - Hair Cotter	£1.28 £1.07
23	BG890019 Available to backorder	Cable Height Adjustment	£51.98 £43.32
24	BG8024054 Available to backorder	Bolt - Carriage 5/16 - 18 X 4-1/2	£0.97 £0.81
26	BG8160002 Available to backorder	Nut Lock 5/16 - 18 Hex	£0.97 £0.81
27	BG890346 Available to backorder	Handle Lower	£63.64 £53.03
28	BG900933 Available to backorder	Plate Handle Support	£5.81 £4.84
29	BG400424 Available to backorder	Label Danger Cut Finger	£3.71 £3.09
30	BG8171003 Available to backorder	Washer Flat Cut 5/16	£0.78 £0.65
34	BG900760-S In stock	Wheel Ass'Y Cast Treaded	£96.60 £80.50
41	BG8041009 Available to backorder	Screw Cap 1/4 - 20 X 1-3/4	£0.97 £0.81
42	BG8123086 Available to backorder	Screw Self Tapping 10 - 24 X 1/2	£1.08 £0.90
43	BG890391 Available to backorder	Nozzle Frame	£303.36 £252.80
44	BG900146-01 In stock	Plug	£8.90 £7.42
49	BG900162 Available to backorder	Key 3/16 Sq X 125	£1.28 £1.07
50	BG400502 Available to backorder	Washer Lock 3/8 Twisted Tooth	£4.20 £3.50
57	BG900230 Available to backorder	Washer 1/2 Flat Kd Wheel	£0.97 £0.81
58	BG8172011 In stock	Washer Flat 1/2 Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
62	BG810736 Available to backorder	Label Danger Flying Material	£3.71 £3.09
71	BG890359 Available to backorder	Screw Cap 1/4-20 X 1/2 Hwh	£1.34 £1.12
75	BG400570 Available to backorder	Grip Handle	£6.74 £5.62
78	BG890530 Available to backorder	1/2-13 Cap Nut Np W/Patch	£6.12 £5.10
83	BG890176 Available to backorder	Connector Quick	£96.40 £80.33
84	BG900327 Available to backorder	Label - Warning Guards	£3.71 £3.09
85	BG890588 Available to backorder	Cable Ass'Y Clutch	£53.22 £44.35
86	BG890242-S Available to backorder	Wheel With Sprocket Ass'Y Cast	£255.36 £212.80
87	BG890239 Available to backorder	Chain 52 Pitch	£18.48 £15.40
88	BG890586 Available to backorder	Belt 4L220	£28.02 £23.35
89	BG900455 Available to backorder	Nut Whiz 1/4-0 Wash Face	£1.08 £0.90
90	BG8024039 Available to backorder	Bolt Carriage 5/16 - 18 X 3/4	£0.97 £0.81
91	BG8177011 Available to backorder	Washer Spring Lock 5/16	£0.78 £0.65
92	BG8142002 Available to backorder	Nut Regular 5/16 - 18	£0.97 £0.81
93	BG900320 Available to backorder	Jackshaft	£23.76 £19.80
94	BG890238 Available to backorder	Sprocket (Per Assem By) (Size # 65A26) 26 Teeth	£20.16 £16.80
95	BG900505 Available to backorder	Screw Self Tap 1/4-14 X 3/4 (Per Assembly)	£1.61 £1.34
96	BG8181007 Available to backorder	Washer Lock External Tooth (Per Assembly)	£0.78 £0.65
102	BG900321 Available to backorder	Bearing Ball (With Snap Ring)	£9.02 £7.52
104	BG900970 Available to backorder	Rod Bail Clutch	£76.88 £64.07
106	BG8122082 Available to backorder	Screw 8122082	£1.61 £1.34
108	BG900302 Available to backorder	Sprocket - 8 Tooth	£81.67 £68.06
109	BG8195166 Available to backorder	Roll Pin 3/16 Dia X 1 1/4 Lg	£1.06 £0.88
113	BG400217 Available to backorder	Spring Tension	£12.54 £10.45
114	BG800888 Available to backorder	Bolt Idler	£9.02 £7.52
116	BG8041004 Available to backorder	Screw Cap 1/4 - 20 X 3/4 Lg	£0.97 £0.81
122	BG8161042 Available to backorder	Nut Lock 3/8-16 Thin	£1.20 £1.00
123	BG100346 Available to backorder	Label Read Owner'S Manual	£3.71 £3.09
