Billy Goat KD511HS - Litter Vacuum Main Diagram

Description

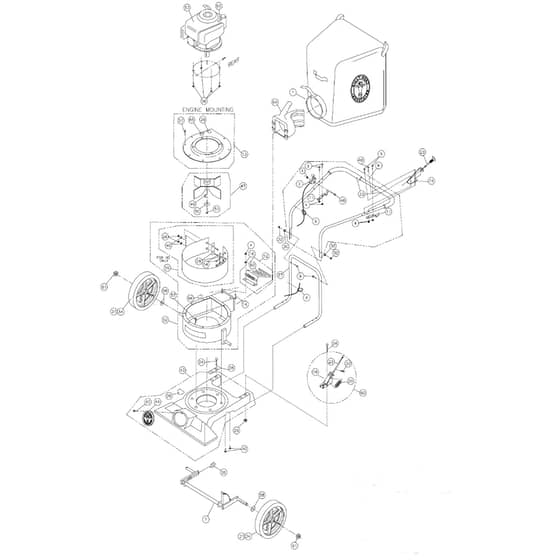

KD511HS Parts Diagram

	Part No.	Details
2	BG890050 Available to backorder	Throttle	£55.06 £45.88
4	BG8160001 Available to backorder	Lock Nut	£0.97 £0.81
7	BG890389 Available to backorder	Axle Height Adjust	£96.24 £80.20
9	BG900407 Available to backorder	Cable Clamp	£0.80 £0.67
10	BG8041009 Available to backorder	Screw Cap	£0.97 £0.81
11	BG900039 Available to backorder	Bar Bag Support	£37.82 £31.52
12	BG890148-S Available to backorder	Door Exhaust Assy	£83.16 £69.30
13	BG890402 Available to backorder	Plate Top Assy	£51.12 £42.60
14	BG8024021 Available to backorder	Carriage Bolt	£0.97 £0.81
16	BG8171002 Available to backorder	Washer	£0.80 £0.67
18	BG890021 Available to backorder	Height Adjust Bracket	£41.86 £34.88
20	BG900136 Available to backorder	Spring	£2.57 £2.14
21	BG900760-S Available to backorder	Tyre	£100.56 £83.80
22	BG900471 Available to backorder	Hair Cotter Pin	£1.28 £1.07
23	BG890019 Available to backorder	Height Adjust Cable	£53.77 £44.81
24	BG8024054 Available to backorder	Carriage Bolt	£0.97 £0.81
26	BG8160002 Available to backorder	Lock Nut	£0.97 £0.81
27	BG890346 Available to backorder	Lower Handle	£63.60 £53.00
28	BG900933 Available to backorder	Plate Handle Support	£5.81 £4.84
29	BG400424 Available to backorder	Label Danger Cut Finger	£3.71 £3.09
30	BG8171003 Available to backorder	Flat Cut Washer	£0.80 £0.67
33	BG400570 Available to backorder	Handle Grip	£6.74 £5.62
37	BG8122082 Available to backorder	Screw	£1.39 £1.16
38	BG890413 Available to backorder	Skid Plate	£113.52 £94.60
42	BG8123086 Available to backorder	Self Tapping Screw	£1.12 £0.93
43	BG890391 Available to backorder	Nozzle Frame Assy	£339.72 £283.10
44	BG900146-01 In stock	Plug	£9.54 £7.95
47	BG900003 Available to backorder	Impeller Assy	£138.12 £115.10
49	BG900162 Available to backorder	Key	£1.28 £1.07
50	BG400502 Available to backorder	Lock Washer	£4.34 £3.62
51	BG900154 Available to backorder	Screw Cap	£2.77 £2.31
53	BG900615 Available to backorder	Engine	£847.20 £706.00
54	BG8024039 Available to backorder	Carriage Bolt	£0.97 £0.81
57	BG890359 Available to backorder	Screw Cap	£1.39 £1.16
58	BG8172011 In stock	Flat Washer	Was £1.10 £0.92 Special Price £0.73 £0.61
61	BG890530 Available to backorder	Cap Nut	£6.06 £5.05
62	BG810736 Available to backorder	Label Danger Flying Metal	£3.71 £3.09
64	BG890176 Available to backorder	Connector Bag Quick	£96.36 £80.30
65	BG100346 Available to backorder	Label Read Owners Manual	£3.71 £3.09
