Billy Goat KD510SP - Self Propelled Litter Vacuum Main Diagram

Name: Billy Goat KD510SP - Self Propelled Litter Vacuum Main Diagram
SKU: kd510sp_self_propelled_litter_vacuum_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat KD510SP - Self Propelled Litter Vacuum Main Diagram

Description

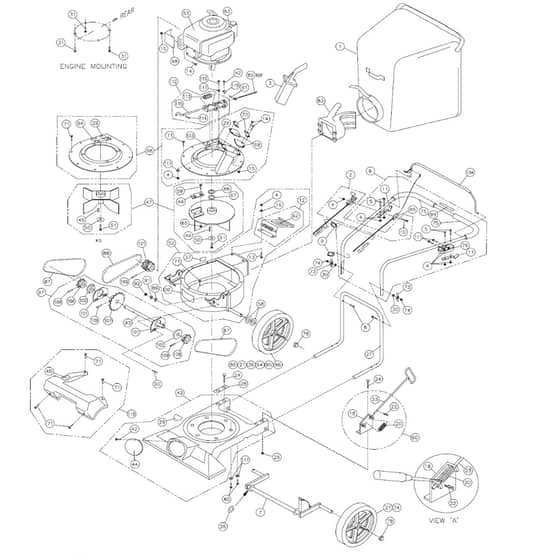

KD510SP Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG890305 Available to backorder	Debris Bag Turf (Service)	£242.28 £201.90
4	BG8160001 Available to backorder	Nut Lock (1/4 - 20)	£0.97 £0.81
5	BG8041008 Available to backorder	Screw Cap (1/4 - 20 X 1- 1/2 Hex)	£1.20 £1.00
6	BG900057 Available to backorder	Handle Assy'	£202.68 £168.90
7	BG890389 Available to backorder	Axle Rear - Frame Wa	£96.24 £80.20
8	BG900547 Available to backorder	Screw Handle 5/16 - 18 X 2-1/4	£0.80 £0.67
11	BG900039 Available to backorder	Bar Support Bag	£36.56 £30.47
12	BG890148-S Available to backorder	Door Exhaust Assy'	£86.04 £71.70
13	BG8024021 Available to backorder	Bolt - Carriage 1/4 X 3/4	£0.97 £0.81
14	BG8059135 Available to backorder	Screw Cap #10 - 24 X 5/8	£0.97 £0.81
15	BG8164005 Available to backorder	Nut Lock #10 Nc	£0.97 £0.81
18	BG900932 Available to backorder	Bracket - Height Adjustment	£60.68 £50.57
21	BG900659 Available to backorder	Tire - Only (Per Assy') Treaded	£37.40 £31.17
22	BG900471 Available to backorder	Pin - Hair Cotter	£1.28 £1.07
23	BG890110 Available to backorder	Rod Short Height Adjustment	£13.38 £11.15
24	BG8024054 Available to backorder	Bolt - Carriage 5/16 - 18 X 4-1/2	£0.97 £0.81
26	BG8160002 Available to backorder	Nut Lock 5/16 - 18 Hex	£0.97 £0.81
27	BG900041 Available to backorder	Handle Lower Kd505	£186.24 £155.20
28	BG900933 Available to backorder	Plate Handle Support	£5.81 £4.84
30	BG8171003 Available to backorder	Washer Flat Cut 5/16	£0.78 £0.65
34	BG900760-S In stock	Wheel Ass'Y Cast (Incl Items 21) Treaded	£96.60 £80.50
42	BG8123086 Available to backorder	Screw Self Tapping 10 - 24 X 1/2	£1.08 £0.90
43	BG890391 Available to backorder	Nozzle Frame	£303.36 £252.80
44	BG900146-01 In stock	Plug	£8.90 £7.42
47	BG900342 Available to backorder	Impeller Ass'Y	£385.46 £321.22
49	BG5108837 Available to backorder	Key 3/16 Sq X 125	£3.80 £3.17
50	BG400502 Available to backorder	Washer Lock 3/8 Twisted Tooth	£4.20 £3.50
51	BG900344 Available to backorder	Screw Cap 3/8-24 X 1 1/2"	£2.48 £2.07
52	BG890419 Available to backorder	Housing Ass'Y	£311.64 £259.70
58	BG8172011 In stock	Washer Flat 1/2 Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
60	BG890326 Available to backorder	Height Adjustment Ass'Y	£89.80 £74.83
62	BG810736 Available to backorder	Label Danger Flying Material	£3.71 £3.09
68	BG890402 Available to backorder	Plate Top Ass'Y	£51.12 £42.60
71	BG890359 Available to backorder	Screw Cap 1/4-20 X 1/2 Hwh	£1.34 £1.12
73	BG890108 Available to backorder	Knob Wing 5/16-18	£2.48 £2.07
75	BG400570 Available to backorder	Grip Handle	£6.74 £5.62
78	BG890530 Available to backorder	1/2-13 Cap Nut Np W/Patch	£6.12 £5.10
83	BG890176 Available to backorder	Connector Quick	£96.40 £80.33
86	BG890242-S Available to backorder	Wheel With Sprocket Ass'Y Cast	£255.36 £212.80
87	BG890239 Available to backorder	Chain 52 Pitch	£18.48 £15.40
90	BG8024039 Available to backorder	Bolt Carriage 5/16 - 18 X 3/4	£0.97 £0.81
91	BG8177011 Available to backorder	Washer Spring Lock 5/16	£0.78 £0.65
92	BG8142002 Available to backorder	Nut Regular 5/16 - 18	£0.97 £0.81
93	BG900320 Available to backorder	Jackshaft	£23.76 £19.80
94	BG890238 Available to backorder	Sprocket 26 Teeth	£20.16 £16.80
96	BG8181007 Available to backorder	Washer Lock External Tooth	£0.78 £0.65
100	BG900327 Available to backorder	Label - Warning Guards	£3.71 £3.09
102	BG900321 Available to backorder	Bearing Ball (With Snap Ring)	£9.02 £7.52
104	BG900970 Available to backorder	Rod Bail Clutch	£76.88 £64.07
108	BG900302 Available to backorder	Sprocket - 8 Tooth	£81.67 £68.06
109	BG8195166 Available to backorder	Roll Pin 3/16 Dia X 1 1/4 Lg	£1.06 £0.88
112	BG900221 Available to backorder	Bracket Control Ass'Y	£68.08 £56.73
113	BG900136 Available to backorder	Spring	£2.48 £2.07
115	BG900208 Available to backorder	Rod Clutch	£31.08 £25.90
116	BG8041006 Available to backorder	Screw Cap 1/4-20 X 1" Lg	£0.97 £0.81
117	BG8171002 Available to backorder	Washer 1/4" Flat (5/16 Id X 3/4 Od X 1/16)	£0.78 £0.65
121	BG890605 Available to backorder	Clutch Double Release	£276.36 £230.30
123	BG100346 Available to backorder	Label Read Owner'S Manual	£3.71 £3.09
