Billy Goat KD501T - Vacuum Cleaner Main Diagram

Name: Billy Goat KD501T - Vacuum Cleaner Main Diagram
SKU: kd501t_vacuum_cleaner_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat KD501T - Vacuum Cleaner Main Diagram

Description

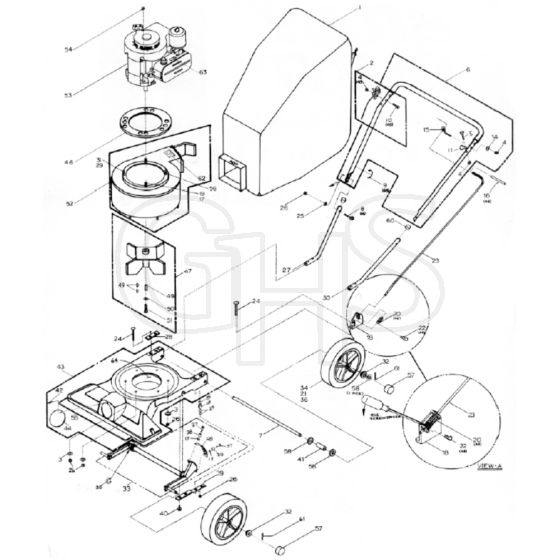

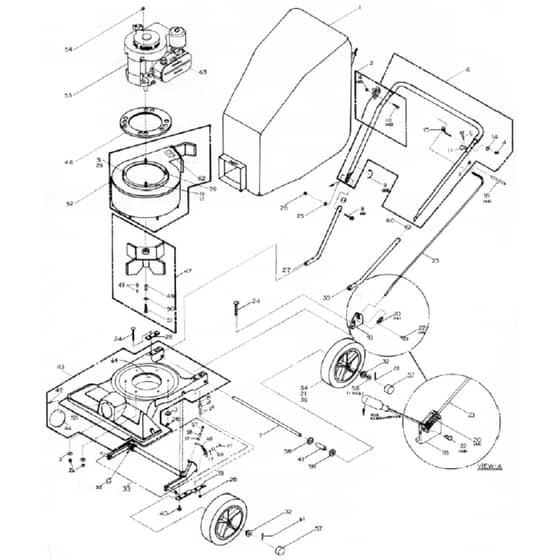

KD501T Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG900803	Bag Felt	Out of stock	£270.24 £225.20
2	BG810135	Throttle Assembly	Out of stock	£19.91 £16.59
3	BG8172020	Washer-Flat Fender	Out of stock	£0.78 £0.65
4	BG8160001	Locknut 1/4-20	Out of stock	£0.97 £0.81
5	BG8041008	Screwcap 1/4-20 X 1 1/2	Out of stock	£1.20 £1.00
6	BG900060	Handle Assy	Out of stock	£398.52 £332.10
9	BG900407	Ty Wrap	Out of stock	£0.78 £0.65
10	BG8041009	Screwcap 1/4-20 X 1 3/4	Out of stock	£0.97 £0.81
11	BG800178	Rod Bag Loop	Out of stock	£2.89 £2.41
14	BG8171002	Washer Flat Cut 1/4	Out of stock	£0.78 £0.65
16	BG900937	Grip	Out of stock	£2.18 £1.82
18	BG900932	Bracket Ht Adj	Out of stock	£60.68 £50.57
20	BG900136	Spring	Out of stock	£2.48 £2.07
21	BG900760-S	Tire Only	Out of stock	£96.60 £80.50
22	BG900471	Pin Hair Cotter	Out of stock	£1.28 £1.07
23	BG900978	Rod Ht Adj Plunger	Out of stock	£14.00 £11.67
24	BG8024050	Bolt Carraige 5/16-18 X 3 1/2	Out of stock	£0.97 £0.81
25	BG8172008	Washer Flat 5/16	Out of stock	£0.78 £0.65
26	BG8160002	Washer 5/16 Sae	Out of stock	£0.97 £0.81
28	BG900933	Plate Handle Support	Out of stock	£5.81 £4.84
29	BG8177011	Washer Lock 5/16	Out of stock	£0.78 £0.65
31	BG8041026	Screwcap 5/16-18 X 3/4	Out of stock	£0.97 £0.81
32	BG900927	Washer Hub Cap	Out of stock	£1.40 £1.17
36	BG900498	Bearing Only	Out of stock	£5.14 £4.28
37	BG8041028	Screwcap 5/16-18 X 1"	Out of stock	£0.97 £0.81
40	BG8041002	Screwcap 1/4-20 X 1/2	Out of stock	£0.97 £0.81
41	BG900926	Spacer	Out of stock	£0.78 £0.65
42	BG8123086	Screw Self Tapping	Out of stock	£1.08 £0.90
44	BG900146-01	Plug	Out of stock	£9.24 £7.70
50	BG400502	Washer Lock 3/8 Twist Tooth	Out of stock	£4.20 £3.50
51	BG900154	Screwcap 3/8-24 X 1" Gr 8	Out of stock	£2.18 £1.82
55	BG900939	Rod Bumper	Out of stock	£16.46 £13.72
56	BG8041029	Screwcap 5/16-18 X 1 1/4	Out of stock	£0.97 £0.81
58	BG8172011	Washer 1/2" Sae	In stock	Was £1.10 £0.92 Special Price £0.73 £0.61
64	BG900977	Guard Foam Insert	Out of stock	£16.50 £13.75
