Billy Goat KD501ICQ - Vacuum Cleaner Main Diagram

Description

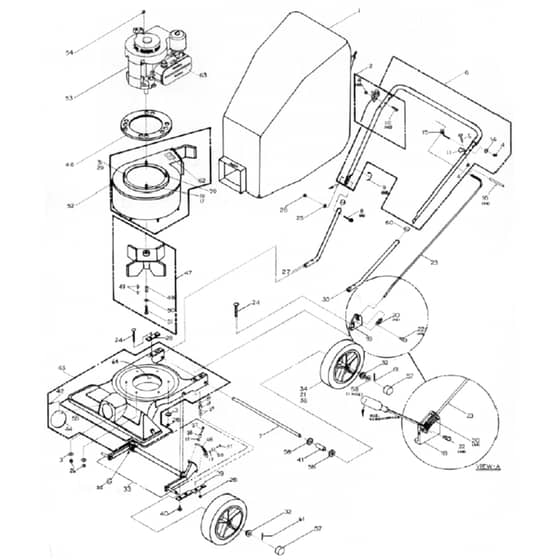

KD501ICQ Parts Diagram

	Part No.	Details
1	BG900803 Available to backorder	Bag Felt	£291.84 £243.20
2	BG850270 Available to backorder	Throttle Assembly	£36.65 £30.54
3	BG8172020 Available to backorder	Washer-Flat Fender	£0.80 £0.67
4	BG8160001 Available to backorder	Locknut 1/4-20	£0.97 £0.81
5	BG8041008 Available to backorder	Screwcap 1/4-20 X 1 1/2	£1.03 £0.86
6	BG900060 Available to backorder	Handle Assy (Inc (2) Of 4 5 11) ((1) Of 15 4 14)	£429.24 £357.70
10	BG8041009 Available to backorder	Screwcap 1/4-20 X 1 3/4	£0.97 £0.81
11	BG800178 Available to backorder	Rod Bag Loop	£2.89 £2.41
14	BG8171002 Available to backorder	Washer Flat Cut 1/4	£0.80 £0.67
16	BG900937 Available to backorder	Grip	£2.26 £1.88
18	BG900932 Available to backorder	Bracket Ht Adj	£60.68 £50.57
20	BG900136 Available to backorder	Spring	£2.57 £2.14
21	BG900760-S Available to backorder	Tire Only	£100.56 £83.80
22	BG900471 Available to backorder	Pin Hair Cotter	£1.28 £1.07
23	BG900978 Available to backorder	Rod Ht Adj Plunger	£14.00 £11.67
24	BG8024050 Available to backorder	Bolt Carraige 5/16-18 X 3 1/2	£0.97 £0.81
25	BG8172008 Available to backorder	Washer Flat 5/16	£0.80 £0.67
26	BG8160002 Available to backorder	Washer 5/16 Sae	£0.97 £0.81
28	BG900933 Available to backorder	Plate Handle Support	£5.81 £4.84
31	BG8041034 Available to backorder	Screwcap5/16-18 X 2 1/2	£0.97 £0.81
32	BG900927 Available to backorder	Washer Hub Cap	£1.40 £1.17
36	BG900498 Available to backorder	Bearing Only	£5.14 £4.28
37	BG8041028 Available to backorder	Screwcap 5/16-18 X 1"	£0.97 £0.81
40	BG8041002 Available to backorder	Screwcap 1/4-20 X 1/2	£0.97 £0.81
41	BG900926 Available to backorder	Spacer	£0.80 £0.67
42	BG8123086 Available to backorder	Screw Self Tapping	£1.12 £0.93
44	BG900146-01 In stock	Plug	£9.54 £7.95
47	BG900215-S Available to backorder	Impeller Assy (Inc 49 50 51)	£263.88 £219.90
49	BG900162 Available to backorder	Key Hi Pro 5/32 X 5/8	£1.28 £1.07
50	BG400502 Available to backorder	Washer Lock 3/8 Twist Tooth	£4.34 £3.62
51	BG900154 Available to backorder	Screwcap 3/8-24 X 1" Gr 8	£2.77 £2.31
55	BG900939 Available to backorder	Rod Bumper	£17.03 £14.19
56	BG8041029 Available to backorder	Screwcap 5/16-18 X 1 1/4	£0.97 £0.81
58	BG8172011 In stock	Washer 1/2" Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
64	BG900977 Available to backorder	Guard Foam Insert	£17.06 £14.22
