Billy Goat KD410 - Litter Vacuum Main Diagram

Name: Billy Goat KD410 - Litter Vacuum Main Diagram
SKU: kd410_litter_vacuum_main-group
Price: 0.61 GBP
Availability: InStock

Part No. kd410_litter_vacuum_main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat KD410 - Litter Vacuum Main Diagram

Description

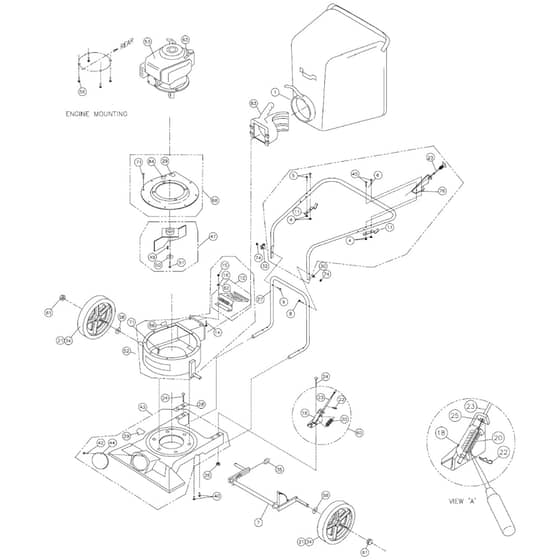

KD410 Parts Diagram

	Part No.	Details
1	BG890305 Available to backorder	Turf Quick Debris Bag	£258.24 £215.20
4	BG8160001 Available to backorder	Nut Lock (1/4 - 20)	£0.97 £0.81
5	BG8041008 Available to backorder	Screw Cap ( 1/4 - 20 X 1-1/2 Hex )	£1.03 £0.86
7	BG890389 Available to backorder	Axle Height Adjust	£96.24 £80.20
8	BG8041031 Available to backorder	Screw Handle 5/16 - 18 X 1 3/4	£0.97 £0.81
9	BG8041034 Available to backorder	Screw Handle 5/16 - 18 X 2 1/2	£0.97 £0.81
11	BG900039 Available to backorder	Bar Bag Support	£37.82 £31.52
12	BG890148-S Available to backorder	Door Exhaust Ass’Y	£83.16 £69.30
14	BG8024021 Available to backorder	Bolt-Carriage 1/4X3/4	£0.97 £0.81
16	BG8171002 Available to backorder	Washer 1/4 Fc Zp	£0.80 £0.67
18	BG890021 Available to backorder	Bracket - Height Adjustment	£41.86 £34.88
20	BG900136 Available to backorder	Spring	£2.57 £2.14
21	BG900760-S Available to backorder	Tire - Only (Per Assy)	£100.56 £83.80
22	BG900471 Available to backorder	Pin - Hair Cotter	£1.28 £1.07
23	BG890019 Available to backorder	Cable Height Adjustment	£53.77 £44.81
24	BG8024054 Available to backorder	Bolt - Carriage 5/16 - 18 X 4 1/2	£0.97 £0.81
26	BG8160002 Available to backorder	Nut Lock 5/16 - 18 Hex	£0.97 £0.81
27	BG890346 Available to backorder	Handle Lower Kd510	£63.60 £53.00
28	BG900933 Available to backorder	Plate Handle Support	£5.81 £4.84
29	BG400424 Available to backorder	Label Danger Cut Finger	£3.71 £3.09
30	BG8171003 Available to backorder	Washer Flat Cut 5/16	£0.80 £0.67
42	BG8123086 Available to backorder	Screw Self Tapping 10 - 24 X 1/2	£1.12 £0.93
43	BG890391 Available to backorder	Nozzle Mainframe Ass’Y	£339.72 £283.10
44	BG900146-01 In stock	Plug	£9.54 £7.95
45	BG8041009 Available to backorder	Screwcap 1/4-20 X 1 3/4	£0.97 £0.81
47	BG900168 Available to backorder	Impeller Ass’Y	£327.12 £272.60
49	BG900162 Available to backorder	Key	£1.28 £1.07
50	BG400502 Available to backorder	Washer Lock 3/8 Twisted Tooth	£4.34 £3.62
51	BG900154 Available to backorder	Screw Cap 3/8 -24 X 1	£2.77 £2.31
56	BG890408 Available to backorder	Screw Cap 3/8 - 1-1/2 Taptite	£3.23 £2.69
58	BG8172011 In stock	Washer Flat 1/2 Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
61	BG890530 Available to backorder	1/2-13 Cap Nut Np W/Patch	£6.06 £5.05
62	BG810736 Available to backorder	Label Danger Flying Material	£3.71 £3.09
68	BG890402 Available to backorder	Plate Top Ass’Y	£51.12 £42.60
71	BG890359 Available to backorder	Screw Cap 1/4 - 20 X 1/2 Hwh	£1.39 £1.16
83	BG890176 Available to backorder	Connector Bag Quick	£96.36 £80.30
