John Deere Z997R - PC12156 - Belt Drive - ST778333

Description

John Deere Z997R

PC Number - PC12156

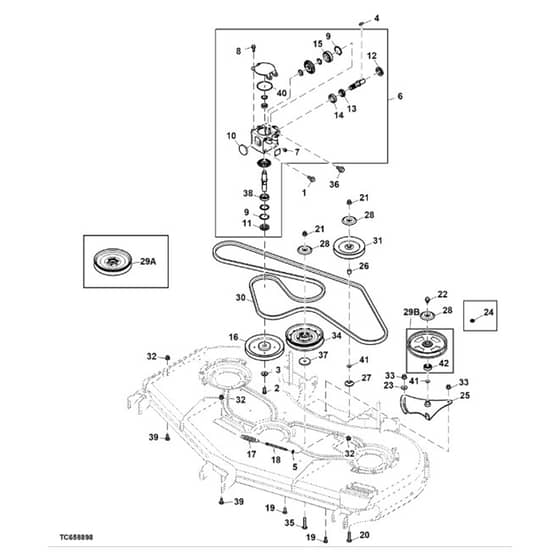

Belt Drive And Idlers, 72Sd Inch (Not For Canada And Usa) - ST778333

	Part No.	Details
1	JD19M7785 Available to backorder	19M7785 Hexagonal Head Flanged Screw M10 x 25	£2.48 £2.07
2	JD19M7788 Available to backorder	19M7788 Hexagonal Head Flanged Screw M12 x 25	£2.94 £2.45
3	JD24M7226 Available to backorder	24M7226 Round Hole Washer	£4.24 £3.53
5	JD47M7007 Available to backorder	47M7007 Spherical Seat Washer	£1.09 £0.91
6	JDAUC18487 Available to backorder	Bevel Gear Assembly	£738.44 £615.37
7	JD15H666 Available to backorder	15H666 Pipe Plug	£6.19 £5.16
8	JD19M7786 Available to backorder	19M7786 Hexagonal Head Flanged Screw M10 x 30	£2.66 £2.22
9	JD40M1865 Available to backorder	40M1865 Snap Ring	£1.27 £1.06
11	JDCE16872 Available to backorder	Internal Oil Seal	£44.90 £37.42
12	JDCE17406 Available to backorder	Gear Case Seal	£28.88 £24.07
13	JDCE17460 Available to backorder	Tapered Roller Bearing Cone	£50.14 £41.78
14	JDJD7258 Available to backorder	Bearing Cup	£21.96 £18.30
17	JDM136044 Available to backorder	Idler Extension Spring	£18.71 £15.59
18	JDM141764 Available to backorder	Eyebolt M8 x 130	£7.24 £6.03
19	JD03M7193 Available to backorder	03M7193 Round Head Square Neck Bolt M10 x 35	£2.41 £2.01
19	JD03M7192 Available to backorder	03M7192 Round Head Square Neck Bolt M10 x 30	£1.66 £1.38
20	JD19M7815 Available to backorder	19M7815 Hexagonal Head Flanged Screw M12 x 60	£6.24 £5.20
20	JD03M7204 Available to backorder	03M7204 Carriage Bolt M12 x 60	£4.62 £3.85
21	JD14M7401 Available to backorder	14M7401 Hexagonal Lock Nut M12	£2.94 £2.45
22	JD19M8242 Available to backorder	19M8242 Hexagonal Head Flanged Screw M12 x 16	£2.23 £1.86
23	JD24M7101 Available to backorder	24M7101 Round Hole Washer	£2.05 £1.71
24	JD24M7240 Available to backorder	24M7240 Round Hole Washer	£1.75 £1.46
27	JDM132309 Available to backorder	Shouldered Spacer	£11.56 £9.63
28	JDM133598 Available to backorder	Idler Shield	£18.32 £15.27
29	JDAUC16477 Available to backorder	Backside Idler Pulley [29B]	£81.24 £67.70
29	JDTCA20656 Available to backorder	Mower Drive Idler [29A]	£77.04 £64.20
30	JDTCU16036 Available to backorder	Mower Deck Drive V-Belt Effective Length 4394 mm 173 inch	£329.88 £274.90
31	JDAN15237 Available to backorder	Idler Pulley	£92.04 £76.70
32	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
33	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
34	JDTCA22540 Available to backorder	Mower Deck Idler	£113.04 £94.20
35	JD03M7226 Available to backorder	03M7226 Carriage Bolt M12 x 70	£5.66 £4.72
36	JD19M7784 Available to backorder	19M7784 Hexagonal Head Screw M10 x 20	£2.28 £1.90
38	JDCH11145 Available to backorder	Tapered Roller Bearing	£53.26 £44.38
39	JD03M7184 Available to backorder	03M7184 Round Head Square Neck Bolt M8 x 20	£1.19 £0.99
40	JDT107882 Available to backorder	O-Ring	£56.66 £47.22
41	JD24M7047 Available to backorder	Round Hole Washer	£0.98 £0.82
42	JDTCU23201 Available to backorder	Single Row Cylindrical Ball Bearing	£33.91 £28.26
