John Deere Z997R - PC12156 - Belt (070001 - ) - ST1013758

Name: John Deere Z997R - PC12156 - Belt (070001 - ) - ST1013758
SKU: Z997R_PC12156_ST1013758-group
Price: 0.34 GBP
Availability: InStock

Part No. Z997R_PC12156_ST1013758-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere Z997R - PC12156 - Belt (070001 - ) - ST1013758

Description

John Deere Z997R

PC Number - PC12156

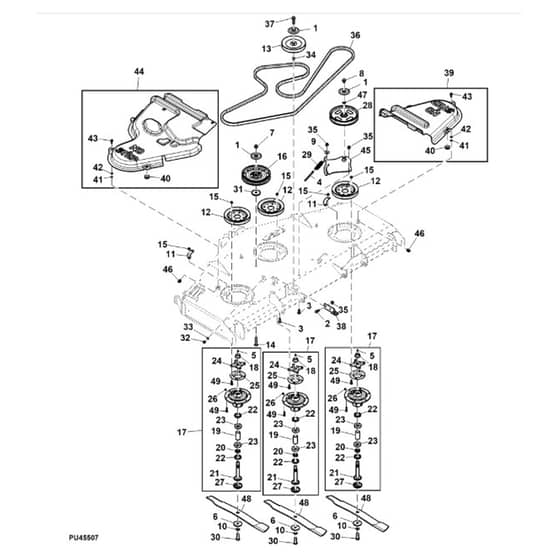

Belt, Blade, Sheave And Spindle, 72Rd Inch (Not For Canada And Usa) (070001 - ) - ST1013758

	Part No.	Details
1	JDM133598 Available to backorder	Idler Shield	£18.32 £15.27
2	JD19M7785 Available to backorder	19M7785 Hexagonal Head Flanged Screw M10 x 25	£2.48 £2.07
3	JD03M7192 Available to backorder	03M7192 Round Head Square Neck Bolt M10 x 30	£1.66 £1.38
4	JDM141764 Available to backorder	Eyebolt M8 x 130	£7.24 £6.03
5	JDJD7803 Available to backorder	Lubrication Fitting	£1.21 £1.01
6	JDM123522 Available to backorder	Concave Washer	£23.28 £19.40
7	JD14M7401 Available to backorder	14M7401 Hexagonal Lock Nut M12	£2.94 £2.45
8	JD19M8242 Available to backorder	19M8242 Hexagonal Head Flanged Screw M12 x 16	£2.23 £1.86
9	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
10	JDM123520 Available to backorder	Round Hole Washer	£0.94 £0.78
11	JDTCU39458 In stock	Spindle Mount Reinforcement Plate	£23.63 £19.69
12	JDTCU51522 Available to backorder	Sheave	£83.28 £69.40
13	JDAN15237 Available to backorder	Idler Pulley	£92.04 £76.70
14	JD03M7226 Available to backorder	03M7226 Carriage Bolt M12 x 70	£5.66 £4.72
15	JD14M7298 Available to backorder	14M7298 Hexagonal Flange Nut M8	£0.68 £0.57
16	JDTCA22540 Available to backorder	Mower Deck Idler	£113.04 £94.20
18	JDM163055 Available to backorder	Hexagonal Flange Nut M20	£3.28 £2.73
20	JDTCU31604 Available to backorder	Round Hole Washer	£4.28 £3.57
21	JDM163059 Available to backorder	Spindle	£74.16 £61.80
22	JDM85699 Available to backorder	Internal Oil Seal	£25.15 £20.96
23	JDM169375 Available to backorder	Single Row Cylindrical Ball Bearing	£41.24 £34.37
24	JDTCU38142 Available to backorder	Spindle Hub	£95.16 £79.30
25	JDTCU51223 Available to backorder	Upper Hub Deflector	£39.78 £33.15
26	JDE14814 Available to backorder	Pressure Relief Fitting	£13.07 £10.89
27	JDTCU32319 Available to backorder	Lower Spindle Deflector	£25.21 £21.01
28	JDAUC16477 Available to backorder	Backside Idler Pulley	£81.24 £67.70
29	JDM136044 Available to backorder	Idler Extension Spring	£18.71 £15.59
30	JD19M7489 Available to backorder	19M7489 Hexagonal Head Screw M16 x 45	£5.83 £4.86
32	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
33	JD47M7007 Available to backorder	47M7007 Spherical Seat Washer	£1.09 £0.91
35	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
36	JDTCU16036 Available to backorder	Mower Deck Drive V-Belt Effective Length 4394 mm 173 inch	£329.88 £274.90
37	JD19M7814 Available to backorder	19M7814 Hexagonal Head Flanged Screw M12 x 50	£4.85 £4.04
41	JDR280791 Available to backorder	Push Nut 7.14 mm 9/32"	£2.16 £1.80
42	JD24M7036 Available to backorder	Round Hole Washer	£0.50 £0.42
43	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.67 £1.39
46	JDM84971 Available to backorder	Raised Panel Nut M8	£2.32 £1.93
47	JD24M7047 Available to backorder	Round Hole Washer	£0.98 £0.82
49	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
