John Deere Z645 - PC10431 - Belts - ST792138

Name: John Deere Z645 - PC10431 - Belts - ST792138
SKU: Z645_PC10431_ST792138-group
Price: 0.34 GBP
Availability: InStock

Part No. Z645_PC10431_ST792138-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

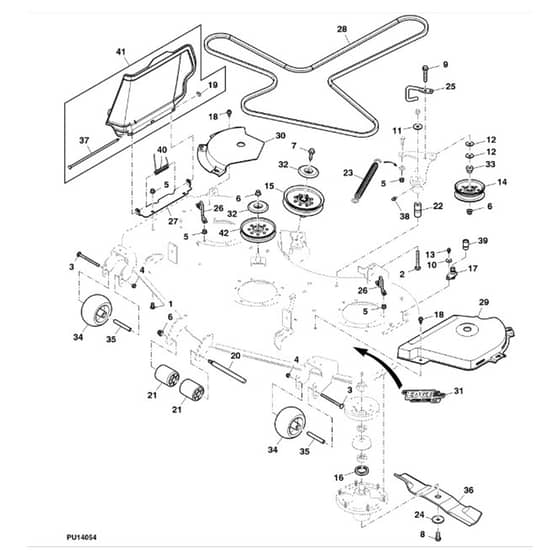

John Deere Z645 - PC10431 - Belts - ST792138

Description

John Deere Z645

PC Number - PC10431

Belts, Sheaves And Idlers, 48Hc Inch (Not For Canada And Usa) - ST792138

	Part No.	Details
1	JD03M7184 Available to backorder	03M7184 Round Head Square Neck Bolt M8 x 20	£1.19 £0.99
2	JD03M7218 Available to backorder	03M7218 Carriage Bolt M10 x 80	£5.23 £4.36
4	JD14M7166 Available to backorder	14M7166 Hexagonal Lock Nut M8	£1.07 £0.89
5	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
6	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
7	JD19M7835 Available to backorder	19M7835 Hexagonal Head Flange Bolt M10 x 35	£2.94 £2.45
8	JD19M7872 Available to backorder	19M7872 Hexagonal Head Screw M12 x 25	£2.82 £2.35
9	JD19M8528 Available to backorder	19M8528 Hexagonal Head Flanged Screw M10 x 55	£5.10 £4.25
10	JD24M7100 Available to backorder	Round Hole Washer	£0.96 £0.80
11	JD24M7101 Available to backorder	24M7101 Round Hole Washer	£2.05 £1.71
12	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
13	JD37M7458 Available to backorder	37M7458 Hexagonal Flanged Head Self-Tapping Screw M6 x 12	£1.18 £0.98
14	JDAM128118 Available to backorder	Mower Deck Drive Idler	£45.95 £38.29
15	JDAM136252 Available to backorder	Mower Deck Drive Pulley	£84.84 £70.70
16	JDM85699 Available to backorder	Internal Oil Seal	£25.15 £20.96
17	JDGX22426 In stock	Deck Wash Water Port Plate	£7.57 £6.31
18	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
19	JDH141123 Available to backorder	Push Nut 10 mm 0.394"	£1.85 £1.54
20	JDM111134 Available to backorder	Rod	£28.10 £23.42
21	JDM113955 In stock	Smooth Black Deck Wheel	£15.34 £12.78
22	JDM138947 Available to backorder	Cylindrical Alloy Bushing	£21.05 £17.54
23	JDM141974 Available to backorder	Extension Spring	£25.13 £20.94
24	JDM147138 In stock	Concave Washer	£16.66 £13.88
27	JDM159491 Available to backorder	Discharge Chute Hinge	£16.25 £13.54
28	JDM160912 Available to backorder	Mower Deck Drive V-Belt Effective Length 3490 mm 137.4 inch	£196.32 £163.60
32	JDM165519 Available to backorder	Idler Shield	£4.80 £4.00
33	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
35	JDTCU19299 Available to backorder	Gage Wheel Axle	£27.62 £23.02
36	JDTCU30315 Available to backorder	High Lift Mower Blade 48 inch Cut Length 110 mm 4.3 inch	£49.15 £40.96
36	JDUC15159 Available to backorder	High Lift Self-Sharpening Mower Blade 48" Mower Deck	£73.56 £61.30
37	JDM136849 Available to backorder	Groove Pin Fastener	£39.35 £32.79
38	JDJD7844 Available to backorder	Straight Lubrication Fitting	£2.16 £1.80
39	JDGX22425 Available to backorder	Deck Wash Port Quick Coupler	£10.20 £8.50
40	JDM172580 Available to backorder	Double Torsion Spring	£28.91 £24.09
41	JDAM146005 Available to backorder	Mower Deck Chute	£77.04 £64.20
42	JDAUC16698 In stock	Flat Idler	£45.86 £38.22
