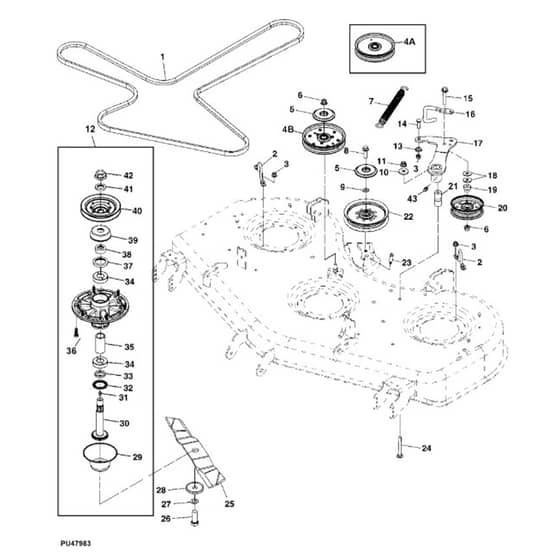

John Deere Z645 - PC10431 - Belt Drive - ST515072

Name: John Deere Z645 - PC10431 - Belt Drive - ST515072
SKU: Z645_PC10431_ST515072-group
Price: 0.38 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere Z645 - PC10431 - Belt Drive - ST515072

Description

John Deere Z645

PC Number - PC10431

Belt Drive, Blades, Idlers And Spindles - ST515072

Be the first to review this product

0 product questions

	Part No.	Details
1	JDM160912 Available to backorder	Mower Deck Drive V-Belt Effective Length 3490 mm 137.4 inch	£193.48 £161.23
3	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
4	JDAUC16698 In stock	Flat Idler [4B]	£45.86 £38.22
5	JDM165519 Available to backorder	Idler Shield	£4.80 £4.00
6	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
7	JDM141974 Available to backorder	Extension Spring	£23.94 £19.95
8	JD19M7835 Available to backorder	19M7835 Hexagonal Head Flange Bolt M10 x 35	£2.94 £2.45
9	JD24H1682 Available to backorder	24H1682 Round Hole Washer	£1.16 £0.97
10	JD24M7101 Available to backorder	24M7101 Round Hole Washer	£2.03 £1.69
11	JDH135891 Available to backorder	Hexagonal Lock Nut M10	£2.48 £2.07
12	JDAM142419 Available to backorder	Spindle with Sheave	£349.20 £291.00
13	JDM110316 Available to backorder	Shoulder Washer	£7.92 £6.60
14	JD03M7186 Available to backorder	03M7186 Carriage Bolt M8 x 30	£1.19 £0.99
15	JD19M8528 Available to backorder	19M8528 Hexagonal Head Flanged Screw M10 x 55	£4.85 £4.04
18	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
19	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
20	JDAM128118 Available to backorder	Mower Deck Drive Idler	£43.74 £36.45
21	JDM138947 Available to backorder	Cylindrical Alloy Bushing	£21.05 £17.54
22	JDAM136252 Available to backorder	Mower Deck Drive Pulley	£87.76 £73.13
24	JD03M7218 Available to backorder	03M7218 Carriage Bolt M10 x 80	£4.98 £4.15
25	JDTCU30315 Available to backorder	High Lift Mower Blade 48 inch Cut Length 110 mm 4.3 inch	£44.58 £37.15
25	JDUC15159 Available to backorder	High Lift Self-Sharpening Mower Blade 48" Mower Deck	£76.08 £63.40
26	JD19M7489 Available to backorder	19M7489 Hexagonal Head Screw M16 x 45	£5.56 £4.63
27	JDM123520 Available to backorder	Round Hole Washer	£0.94 £0.78
28	JDM123522 Available to backorder	Concave Washer	£22.16 £18.47
28	JDM172218 Available to backorder	Concave Washer	£19.12 £15.93
29	JDM163053 Available to backorder	Lower Grass Deflector	£22.42 £18.68
30	JDM163059 Available to backorder	Spindle	£75.92 £63.27
31	JDJD7803 Available to backorder	Lubrication Fitting	£1.19 £0.99
32	JDM85699 Available to backorder	Internal Oil Seal	£25.15 £20.96
32	JDM127198 Available to backorder	Internal Oil Seal	£15.08 £12.57
33	JDM163060 Available to backorder	Round Hole Washer	£7.46 £6.22
34	JDM88251 Available to backorder	Single Row Cylindrical Ball Bearing	£24.35 £20.29
35	JDM163058 Available to backorder	Bearing Spacer	£28.74 £23.95
36	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
38	JDM163057 Available to backorder	Internal Splined Coupling Bushing	£26.50 £22.08
39	JDM163054 Available to backorder	Upper Deflector 25mm	£7.60 £6.33
40	JDM164434 Available to backorder	Mower Belt Drive Pulley	£73.08 £60.90
41	JDM127353 Available to backorder	Splined Coupling Bushing	£7.15 £5.96
42	JDM123569 Available to backorder	Hexagonal Flange Nut M20	£8.78 £7.32
43	JDJD7844 Available to backorder	Straight Lubrication Fitting	£2.16 £1.80
