John Deere Z545R - PC13916 - Mower Deck - ST1010704

Description

John Deere Z545R

PC Number - PC13916

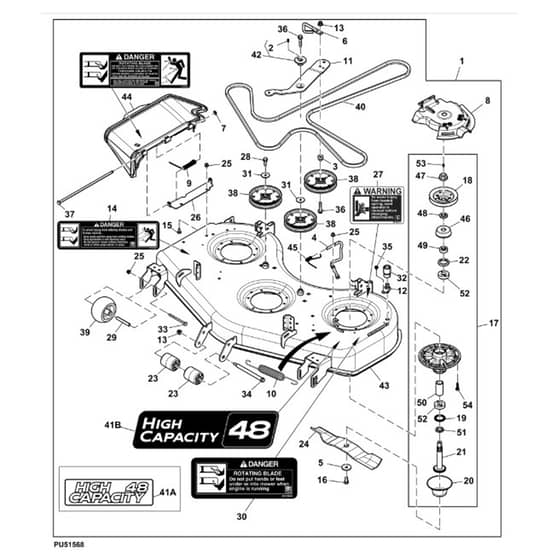

Mower Deck, 48Hc Inch, Attachment - ST1010704

Be the first to review this product

0 product questions

	Part No.	Details
2	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.22 £1.02
3	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
5	JDM147138 In stock	Concave Washer	£16.66 £13.88
7	JDH141123 Available to backorder	Push Nut 10 mm 0.394"	£1.85 £1.54
9	JDUC18422 Available to backorder	Torsion Spring	£5.92 £4.93
10	JDUC15193 Available to backorder	Extension Spring	£20.35 £16.96
12	JDGX22426 In stock	Deck Wash Water Port Plate	£7.08 £5.90
13	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
14	JDM139128 Available to backorder	Safety Sign English	£9.72 £8.10
15	JD03M7184 Available to backorder	03M7184 Round Head Square Neck Bolt M8 x 20	£1.14 £0.95
16	JD19M7872 Available to backorder	19M7872 Hexagonal Head Screw M12 x 25	£2.69 £2.24
17	JDAM144423 Available to backorder	Mower Deck Drive Spindle	£416.40 £347.00
18	JDM164434 Available to backorder	Mower Belt Drive Pulley	£73.08 £60.90
19	JDM127198 Available to backorder	Internal Oil Seal	£15.08 £12.57
20	JDM163053 Available to backorder	Lower Grass Deflector	£22.42 £18.68
21	JDM163982 Available to backorder	Mower Deck Spindle	£44.15 £36.79
22	JDM85699 Available to backorder	Internal Oil Seal	£25.15 £20.96
23	JDM113955 In stock	Smooth Black Deck Wheel	£14.80 £12.33
24	JDUC15159 Available to backorder	High Lift Self-Sharpening Mower Blade 48" Mower Deck	£76.08 £63.40
24	JDTCU30315 Available to backorder	High Lift Mower Blade 48 inch Cut Length 110 mm 4.3 inch	£44.58 £37.15
26	JDM159491 Available to backorder	Discharge Chute Hinge	£16.25 £13.54
28	JD19M7786 Available to backorder	19M7786 Hexagonal Head Flanged Screw M10 x 30	£2.53 £2.11
30	JDM118610 Available to backorder	Safety Sign English	£9.06 £7.55
32	JDGX22425 Available to backorder	Deck Wash Port Quick Coupler	£9.83 £8.19
34	JDM158262 Available to backorder	Hexagonal Head Flanged Screw M10 x 192	£15.73 £13.11
35	JDAM146246 Available to backorder	Screw with Washer M6 x 11.25	£1.48 £1.23
36	JD19M7806 Available to backorder	19M7806 Hexagonal Head Flanged Screw M10 x 50	£4.96 £4.13
37	JDM136849 Available to backorder	Groove Pin Fastener	£39.35 £32.79
38	JDAUC10172 Available to backorder	Mower Deck Drive Idler	£74.33 £61.94
39	JDTCU19299 Available to backorder	Gauge Wheel	£27.62 £23.02
40	JDGX25998 Available to backorder	HB Section Mower Deck Drive V-Belt Effective Length 3870 mm 152.4 inch	£153.96 £128.30
42	JDAUC10010 Available to backorder	Mower Deck Idler Bushing	£26.17 £21.81
44	JDAM146005 Available to backorder	Mower Deck Chute	£75.95 £63.29
46	JDM163054 Available to backorder	Upper Deflector 25mm	£7.60 £6.33
47	JDM163055 Available to backorder	Hexagonal Flange Nut M20	£3.12 £2.60
48	JDM127353 Available to backorder	Splined Coupling Bushing	£7.15 £5.96
49	JDM163057 Available to backorder	Internal Splined Coupling Bushing	£26.50 £22.08
50	JDM163058 Available to backorder	Bearing Spacer	£28.74 £23.95
51	JDM163060 Available to backorder	Round Hole Washer	£7.46 £6.22
52	JDM169375 Available to backorder	Single Row Cylindrical Ball Bearing	£41.24 £34.37
53	JDJD7803 Available to backorder	Lubrication Fitting	£1.19 £0.99
54	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
