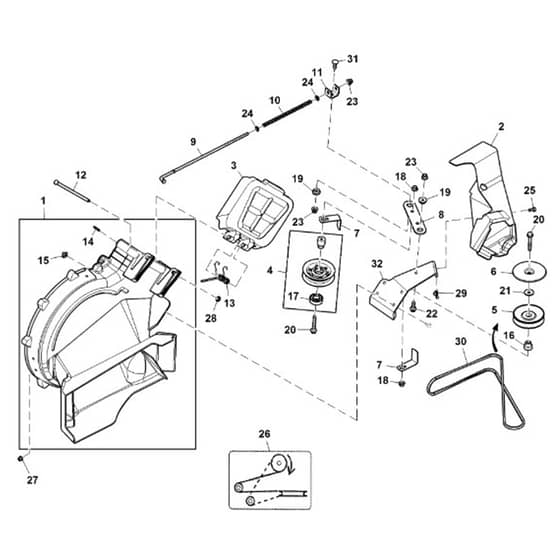

John Deere Z540R - PC12794 - V-Belt / ( - 050000) - ST843743

Part No. Z540R_PC12794_ST843743-group
John Deere Z540R - PC12794 - V-Belt / ( - 050000) - ST843743
John Deere Z540R - PC12794 - V-Belt / ( - 050000) - ST843743

Description

John Deere Z540R

PC Number - PC12794

V-Belt / Idler / Shield / Blower Housing, Power Flow ( - 050000) - ST843743

Ref. Img. Part No. Details
  1 Blower Housing
Blower Housing
JDAM142013
Available to backorder
Blower Housing
£246.48 £205.40

  2 Powerflow Deck Shield
Powerflow Deck Shield
JDGX25677
Available to backorder
Powerflow Deck Shield
£180.12 £150.10

  4 Idler Pulley with Dampener
Idler Pulley with Dampener
JDAM128189
Available to backorder
Idler Pulley with Dampener
£59.24 £49.37

  5 Sheave Idler
Sheave Idler
JDAM118447
In stock
Sheave Idler
£55.91 £46.59

  6 Sheave Shield
Sheave Shield
JDM147446
Available to backorder
Sheave Shield
£27.79 £23.16

  7 Belt Bracket
Belt Bracket
JDM135488
Available to backorder
Belt Bracket
£19.27 £16.06

  8 Idler Pivot Arm
Idler Pivot Arm
JDM155570
Available to backorder
Idler Pivot Arm
£8.03 £6.69

  14 Spring Pin
Spring Pin
JD34H282
Available to backorder
Spring Pin
£0.71 £0.59

  15 Tee Round Nut M6
Tee Round Nut M6
JDM112447
Available to backorder
Tee Round Nut M6
£2.75 £2.29

  16 Cylindrical Flanged Alloy Bushing
Cylindrical Flanged Alloy Bushing
JDM71682
Available to backorder
Cylindrical Flanged Alloy Bushing
£5.56 £4.63

  17 Single Row Cylindrical Ball Bearing
Single Row Cylindrical Ball Bearing
JDJD8535
Available to backorder
Single Row Cylindrical Ball Bearing
£16.80 £14.00

  18 14M7298 Hexagonal Flange Nut M8
14M7298 Hexagonal Flange Nut M8
JD14M7298
Available to backorder
14M7298 Hexagonal Flange Nut M8
£0.68 £0.57

  19 Shoulder Washer
Shoulder Washer
JDM110316
Available to backorder
Shoulder Washer
£7.92 £6.60

  20 19M7979 Hexagonal Head Flanged Screw M8 x 55
19M7979 Hexagonal Head Flanged Screw M8 x 55
JD19M7979
Available to backorder
19M7979 Hexagonal Head Flanged Screw M8 x 55
£3.48 £2.90

  21 24M7024 Round Hole Washer
24M7024 Round Hole Washer
JD24M7024
Available to backorder
24M7024 Round Hole Washer
£1.60 £1.33

  22 19M7867 Hexagonal Head Flanged Screw M8 x 25
19M7867 Hexagonal Head Flanged Screw M8 x 25
JD19M7867
Available to backorder
19M7867 Hexagonal Head Flanged Screw M8 x 25
£1.67 £1.39

  23 14M7396 Hexagonal Flange Self-Lock Nut M8
14M7396 Hexagonal Flange Self-Lock Nut M8
JD14M7396
Available to backorder
14M7396 Hexagonal Flange Self-Lock Nut M8
£0.41 £0.34

  24 24M7095 Round Hole Washer
24M7095 Round Hole Washer
JD24M7095
Available to backorder
24M7095 Round Hole Washer
£0.41 £0.34

  25 19M7863 Hexagonal Head Flanged Screw M6 x 25
19M7863 Hexagonal Head Flanged Screw M6 x 25
JD19M7863
Available to backorder
19M7863 Hexagonal Head Flanged Screw M6 x 25
£1.27 £1.06

  26 Belt Installation Label
Belt Installation Label
JDM146337
Available to backorder
Belt Installation Label
£9.24 £7.70

  27 14M7397 Hexagonal Flange Lock Nut M6
14M7397 Hexagonal Flange Lock Nut M6
JD14M7397
In stock
14M7397 Hexagonal Flange Lock Nut M6
£1.01 £0.84

  28 Retainer Nut 5/16
Retainer Nut 5/16
JDM84309
Available to backorder
Retainer Nut 5/16"
£1.68 £1.40

  29 Lock Clamp-On Nut M6
Lock Clamp-On Nut M6
JDGC00309
Available to backorder
Lock Clamp-On Nut M6
£1.75 £1.46

  30 V-Belt Effective Length 2276 mm 89.6 inch
V-Belt Effective Length 2276 mm 89.6 inch
JDM147044
In stock
V-Belt Effective Length 2276 mm 89.6 inch
£95.34 £79.45

  31 03M7185 Carriage Bolt M8 x 25
03M7185 Carriage Bolt M8 x 25
JD03M7185
Available to backorder
03M7185 Carriage Bolt M8 x 25
£1.19 £0.99

  32 Material Collection System Bracket
Material Collection System Bracket
JDGX25678
Available to backorder
Material Collection System Bracket
£108.84 £90.70


Description

John Deere Z540R

PC Number - PC12794

V-Belt / Idler / Shield / Blower Housing, Power Flow ( - 050000) - ST843743
