John Deere Z540R - PC12794 - Spindle - ST854033

Description

John Deere Z540R

PC Number - PC12794

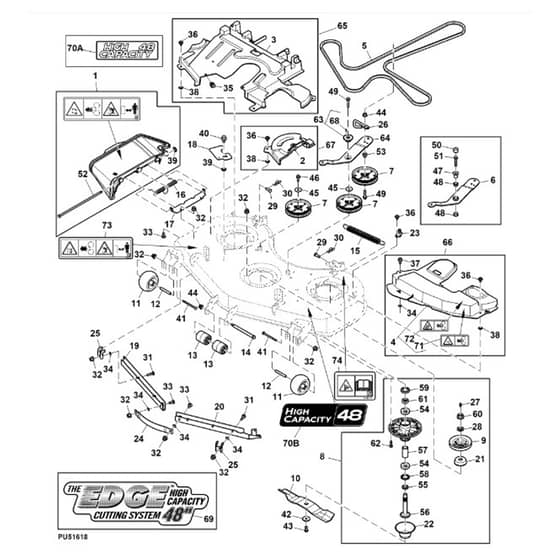

Spindle, Belt, Chute, Blades, Mower Deck, 48 Inch Edge™ High Capacity, ( Not For Usa) - ST854033

Be the first to review this product

0 product questions

	Part No.	Details
1	JDAM146005 Available to backorder	Mower Deck Chute	£75.95 £63.29
5	JDGX25998 Available to backorder	HB Section Mower Deck Drive V-Belt Effective Length 3870 mm 152.4 inch	£153.96 £128.30
7	JDAUC10172 Available to backorder	Mower Deck Drive Idler	£74.33 £61.94
8	JDAM144423 Available to backorder	Mower Deck Drive Spindle	£416.40 £347.00
9	JDM164434 Available to backorder	Mower Belt Drive Pulley	£73.08 £60.90
10	JDUC15159 Available to backorder	High Lift Self-Sharpening Mower Blade 48" Mower Deck	£76.08 £63.40
10	JDTCU30315 Available to backorder	High Lift Mower Blade 48 inch Cut Length 110 mm 4.3 inch	£44.58 £37.15
12	JDTCU19299 Available to backorder	Gage Wheel Axle	£27.62 £23.02
13	JDM113955 In stock	Smooth Black Deck Wheel	£14.30 £11.92
14	JDM158262 Available to backorder	Hexagonal Head Flanged Screw M10 x 192	£15.73 £13.11
16	JDM172580 Available to backorder	Double Torsion Spring	£28.91 £24.09
17	JDM159491 Available to backorder	Discharge Chute Hinge	£16.25 £13.54
21	JDM163054 Available to backorder	Upper Deflector 25mm	£7.60 £6.33
22	JDM163053 Available to backorder	Lower Grass Deflector	£22.42 £18.68
23	JDGX22426 In stock	Deck Wash Water Port Plate	£7.08 £5.90
27	JDJD7803 Available to backorder	Lubrication Fitting	£1.19 £0.99
28	JDM127353 Available to backorder	Splined Coupling Bushing	£7.15 £5.96
29	JD45M7084 Available to backorder	45M7084 Pin Fastener	£7.97 £6.64
30	JDM154221 Available to backorder	Cotter Pin	£1.56 £1.30
31	JD03M7187 Available to backorder	03M7187 Carriage Bolt M8 x 35	£1.52 £1.27
32	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.38 £0.32
33	JD03M7184 Available to backorder	03M7184 Round Head Square Neck Bolt M8 x 20	£1.14 £0.95
34	JDM84309 Available to backorder	Retainer Nut 5/16"	£1.68 £1.40
35	JDM84971 Available to backorder	Raised Panel Nut M8	£2.23 £1.86
36	JDAM146246 Available to backorder	Screw with Washer M6 x 11.25	£1.48 £1.23
37	JDGX22456 In stock	Screw M8 x 20	£1.40 £1.17
38	JDR192109 Available to backorder	Push Nut 6 mm 0.236"	£1.39 £1.16
39	JDH141123 Available to backorder	Push Nut 10 mm 0.394"	£1.85 £1.54
40	JD37M7475 Available to backorder	37M7475 Hexagonal Flanged Head Self-Tapping Screw M10 x 16	£2.00 £1.67
42	JDM147138 In stock	Concave Washer	£16.66 £13.88
43	JD19M7872 Available to backorder	19M7872 Hexagonal Head Screw M12 x 25	£2.69 £2.24
44	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
46	JD19M7786 Available to backorder	19M7786 Hexagonal Head Flanged Screw M10 x 30	£2.53 £2.11
47	JDGX26486 Available to backorder	Cylindrical Flanged Alloy Bushing	£20.89 £17.41
48	JDGX25858 Available to backorder	Flanged Bushing	£2.09 £1.74
49	JD19M7806 Available to backorder	19M7806 Hexagonal Head Flanged Screw M10 x 50	£4.96 £4.13
50	JDM131119 Available to backorder	Idler Cap	£3.25 £2.71
51	JD19M7807 Available to backorder	19M7807 Hexagonal Head Flange Bolt M10 x 60	£4.73 £3.94
52	JDM136849 Available to backorder	Groove Pin Fastener	£39.35 £32.79
53	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
54	JDM169375 Available to backorder	Single Row Cylindrical Ball Bearing	£41.24 £34.37
55	JDM163060 Available to backorder	Round Hole Washer	£7.46 £6.22
56	JDM163982 Available to backorder	Mower Deck Spindle	£44.15 £36.79
57	JDM163058 Available to backorder	Bearing Spacer	£28.74 £23.95
58	JDM127198 Available to backorder	Internal Oil Seal	£15.08 £12.57
59	JDM85699 Available to backorder	Internal Oil Seal	£25.15 £20.96
60	JDM123569 Available to backorder	Hexagonal Flange Nut M20	£8.78 £7.32
61	JDM163057 Available to backorder	Internal Splined Coupling Bushing	£26.50 £22.08
62	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
63	JDAUC10010 Available to backorder	Mower Deck Idler Bushing	£26.17 £21.81
68	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.22 £1.02
71	JDGX23398 Available to backorder	Label	£12.43 £10.36
72	JDGX23397 Available to backorder	Label	£12.43 £10.36
73	JDM138631 Available to backorder	Label	£13.40 £11.17
