John Deere Z535M - PC12791 - Belt - ST901884

Name: John Deere Z535M - PC12791 - Belt - ST901884
SKU: Z535M_PC12791_ST901884-group
Price: 0.38 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere Z535M - PC12791 - Belt - ST901884

Description

John Deere Z535M

PC Number - PC12791

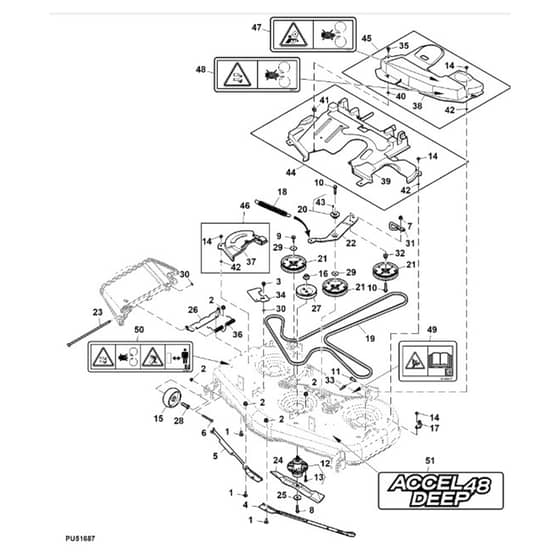

Belt, Spindles And Blades, 48A Inch (Not For Canada And Usa) - ST901884

Be the first to review this product

0 product questions

	Part No.	Details
1	JD03M7184 Available to backorder	03M7184 Round Head Square Neck Bolt M8 x 20	£1.14 £0.95
2	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
3	JD37M7475 Available to backorder	37M7475 Hexagonal Flanged Head Self-Tapping Screw M10 x 16	£2.00 £1.67
4	JDAM145054 Available to backorder	Bracket Left Side	£139.85 £116.54
5	JDAM145055 Available to backorder	Bracket Right Side	£117.38 £97.82
6	JD03M7267 Available to backorder	03M7267 Carriage Bolt M8 x 80	£3.50 £2.92
7	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
8	JD19M7493 Available to backorder	19M7493 Hexagonal Head Screw M12 x 40	£3.64 £3.03
9	JD19M7786 Available to backorder	19M7786 Hexagonal Head Flanged Screw M10 x 30	£2.53 £2.11
10	JD19M7806 Available to backorder	19M7806 Hexagonal Head Flanged Screw M10 x 50	£4.96 £4.13
11	JD45M7084 Available to backorder	45M7084 Pin Fastener	£7.97 £6.64
12	JDAM144608 In stock	Spindle Assembly	£146.52 £122.10
13	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
14	JDAM146246 Available to backorder	Screw with Washer M6 x 11.25	£1.48 £1.23
15	JDGX10168 In stock	Gauge Wheel	£19.34 £16.12
16	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.44 £4.53
17	JDGX22426 In stock	Deck Wash Water Port Plate	£7.08 £5.90
19	JDGX25998 Available to backorder	HB Section Mower Deck Drive V-Belt Effective Length 3870 mm 152.4 inch	£153.96 £128.30
20	JDAUC10010 Available to backorder	Mower Deck Idler Bushing	£26.17 £21.81
21	JDAUC10172 Available to backorder	Mower Deck Drive Idler	£74.33 £61.94
23	JDM136849 Available to backorder	Groove Pin Fastener	£39.35 £32.79
24	JDUC22009 In stock	Mower Blade 48 Inch	£32.88 £27.40
24	JDM147138 In stock	Concave Washer	£16.66 £13.88
26	JDM159491 Available to backorder	Discharge Chute Hinge	£16.25 £13.54
27	JDUC20697 Available to backorder	Mower Deck Drive Pulley	£30.06 £25.05
28	JDM172956 Available to backorder	Flanged Bushing	£19.98 £16.65
30	JDH141123 Available to backorder	Push Nut 10 mm 0.394"	£1.85 £1.54
32	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
33	JDM154221 Available to backorder	Cotter Pin	£1.56 £1.30
35	JDGX22456 Available to backorder	Screw M8 x 20	£1.40 £1.17
36	JDM172580 Available to backorder	Double Torsion Spring	£28.91 £24.09
40	JDM84309 Available to backorder	Retainer Nut 5/16"	£1.68 £1.40
41	JDM84971 Available to backorder	Raised Panel Nut M8	£2.23 £1.86
42	JDR192109 Available to backorder	Push Nut 6 mm 0.236"	£1.39 £1.16
43	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.22 £1.02
47	JDGX23397 Available to backorder	Label	£12.43 £10.36
48	JDGX23398 Available to backorder	Label	£12.43 £10.36
50	JDM138631 Available to backorder	Label	£13.40 £11.17
51	JDM176454 Available to backorder	Label	£8.60 £7.17
