John Deere Z225 - PC9593 - Mower Drive (080001 - ) - ST518405

Name: John Deere Z225 - PC9593 - Mower Drive (080001 - ) - ST518405
SKU: Z225_PC9593_ST518405-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere Z225 - PC9593 - Mower Drive (080001 - ) - ST518405

Description

John Deere Z225

PC Number - PC9593

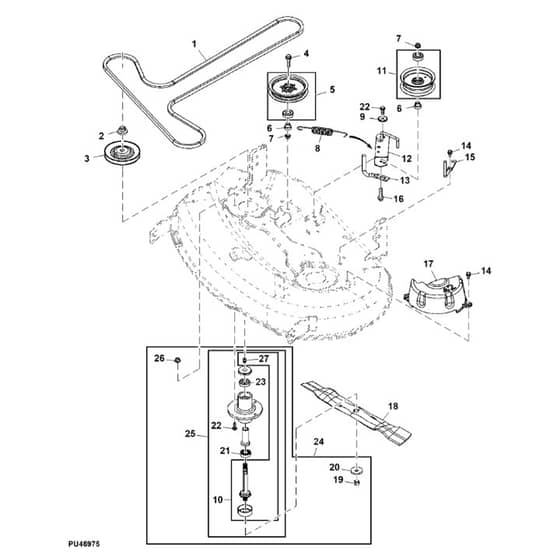

Mower Drive Belt, Sheaves, Spindle And Blade (080001 - ) - ST518405

Be the first to review this product

0 product questions

	Part No.	Details
1	JDM154294 Available to backorder	Mower Drive V-Belt Effective Length 3013.1 mm 118.6 inch	£150.32 £125.27
2	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.44 £4.53
3	JDUC26511 Available to backorder	Mower Drive Pulley	£53.53 £44.61
4	JD19M7804 Available to backorder	19M7804 Hexagonal Head Flange Bolt M10 x 40	£3.66 £3.05
5	JDAM143737 Available to backorder	Mower Deck Drive Idler Pulley	£63.56 £52.97
6	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
7	JD14M7400 In stock	14M7400 Hexagonal Flange Lock Nut M10	£2.20 £1.83
7	JDM142955 Available to backorder	Lock Nut M10	£1.96 £1.63
8	JDM170332 Available to backorder	Extension Spring	£16.88 £14.07
9	JDGX23240 Available to backorder	Pivot Bushing	£1.60 £1.33
10	JDAM141110 Available to backorder	Mower Deck Spindle	£67.37 £56.14
11	JDAUC17621 In stock	Mower Deck Drive Sheave	£46.92 £39.10
14	JDM159825 Available to backorder	Hexagonal Flanged Head Self-Tapping Screw M8 x 23.5	£1.70 £1.42
16	JD19M7806 Available to backorder	19M7806 Hexagonal Head Flanged Screw M10 x 50	£4.96 £4.13
17	JDM154130 Available to backorder	Mower Drive Belt Shield Cover	£28.91 £24.09
18	JDAM141031 Available to backorder	Mower Blade Kit 42 Inch 3 in 1	£118.16 £98.47
18	JDAM141034 Available to backorder	High Lift Bagging Mower Blade Kit 42 Inch	£115.07 £95.89
18	JDAM141033 Available to backorder	Mulching Mower Blade Kit 42x Inch	£112.58 £93.82
18	JDAM141032 Available to backorder	Medium Lift Mower Blade 42 Inch	£106.36 £88.63
18	JDUC21583 Available to backorder	Mower Deck Blade Cut Length 134 mm 5.2 inch	£36.35 £30.29
19	JDM159140 Available to backorder	Hexagonal Lock Nut 15.875 mm 5/8"	£4.09 £3.41
20	JDM149625 In stock	Concave Washer	£5.83 £4.86
21	JDGX21510 Available to backorder	Single Row Cylindrical Ball Bearing	£24.26 £20.22
22	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.60 £1.33
23	JDGX20818 Available to backorder	Single Row Cylindrical Ball Bearing	£12.18 £10.15
25	JDAM137483 In stock	Spindle	£154.44 £128.70
26	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.38 £0.32
27	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.22 £1.02
