John Deere Z225 - PC9593 - Mower Drive ( - 080000) - ST518404

Name: John Deere Z225 - PC9593 - Mower Drive ( - 080000) - ST518404
SKU: Z225_PC9593_ST518404-group
Price: 0.34 GBP
Availability: InStock

Part No. Z225_PC9593_ST518404-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere Z225 - PC9593 - Mower Drive ( - 080000) - ST518404

Description

John Deere Z225

PC Number - PC9593

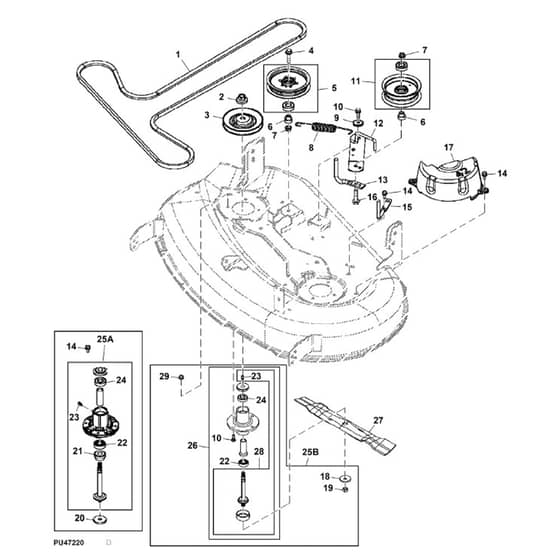

Mower Drive Belt, Sheaves, Spindles And Blades ( - 080000) - ST518404

	Part No.	Details
1	JDM154294 Available to backorder	Mower Drive V-Belt Effective Length 3013.1 mm 118.6 inch	£152.52 £127.10
2	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.89 £4.91
3	JDUC26511 Available to backorder	Mower Drive Pulley	£56.21 £46.84
4	JD19M7804 Available to backorder	19M7804 Hexagonal Head Flange Bolt M10 x 40	£3.85 £3.21
5	JDAM143737 Available to backorder	Mower Deck Drive Idler Pulley	£64.56 £53.80
6	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
7	JD14M7400 In stock	14M7400 Hexagonal Flange Lock Nut M10	£2.36 £1.97
7	JD14M7517 Available to backorder	14M7517 Hexagonal Lock Nut M10	£2.05 £1.71
8	JDM170332 Available to backorder	Extension Spring	£16.88 £14.07
9	JDGX23240 Available to backorder	Pivot Bushing	£1.66 £1.38
10	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.67 £1.39
11	JDAUC17621 Available to backorder	Flat Idler Sheave	£52.74 £43.95
14	JDM159825 Available to backorder	Hexagonal Flanged Head Self-Tapping Screw M8 x 23.5	£1.80 £1.50
16	JD19M7806 Available to backorder	19M7806 Hexagonal Head Flanged Screw M10 x 50	£5.21 £4.34
16	JD19M8320 Available to backorder	19M8320 Hexagonal Head Flange Bolt M10 x 45	£3.48 £2.90
17	JDM154130 Available to backorder	Mower Drive Belt Shield Cover	£28.91 £24.09
18	JDM149625 In stock	Concave Washer	£6.34 £5.28
19	JDM159140 Available to backorder	Hexagonal Lock Nut 15.875 mm 5/8"	£4.30 £3.58
20	JDM147138 In stock	Concave Washer	£16.66 £13.88
21	JDGX21695 Available to backorder	Spacer	£10.66 £8.88
22	JDGX21510 Available to backorder	Single Row Cylindrical Ball Bearing	£25.46 £21.22
23	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.25 £1.04
24	JDGX20818 Available to backorder	Single Row Cylindrical Ball Bearing	£12.79 £10.66
25	JDAM137483 In stock	Mower Belt Drive Housing [25B]	£166.36 £138.63
27	JDAM141032 Available to backorder	Medium Lift Mower Blade 42 Inch	£107.88 £89.90
27	JDAM141033 Available to backorder	Mulching Mower Blade Kit 42x Inch	£114.24 £95.20
27	JDAM141031 Available to backorder	Mower Blade Kit 42 Inch 3 in 1	£114.24 £95.20
27	JDUC21583 In stock	Mower Deck Blade Cut Length 134 mm 5.2 inch	£42.92 £35.77
27	JDAM141034 Available to backorder	Bagging Mower Blade 42 Inch	£111.24 £92.70
27	JDAM140973 Available to backorder	High Lift Mulch Blade Kit 42M inch	£89.64 £74.70
28	JDAM141110 Available to backorder	Mower Deck Spindle	£68.40 £57.00
29	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
