John Deere XUV865R - PC13099 - Cargo Box - ST930292

Name: John Deere XUV865R - PC13099 - Cargo Box - ST930292
SKU: XUV865R_PC13099_ST930292-group
Price: 0.46 GBP
Availability: InStock

Part No. XUV865R_PC13099_ST930292-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere XUV865R - PC13099 - Cargo Box - ST930292

Description

John Deere XUV865R

PC Number - PC13099

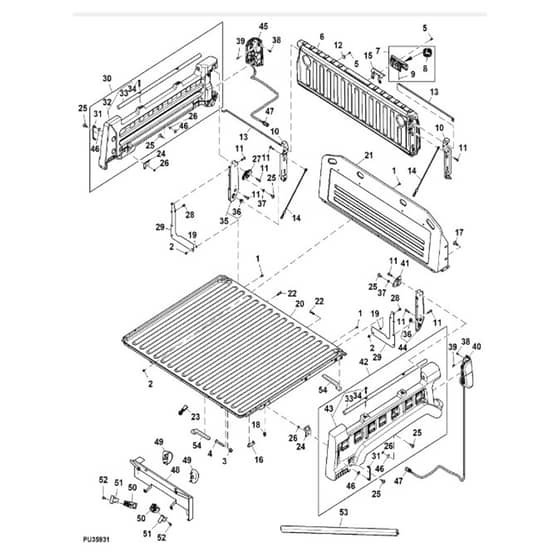

Cargo Box W/ Tail Lights, Texture - ST930292

	Part No.	Details
1	JD03M7221 Available to backorder	03M7221 Carriage Bolt M6 x 16	£0.86 £0.72
2	JD14M7397 In stock	14M7397 Hexagonal Flange Lock Nut M6	£1.01 £0.84
3	JD14M7401 Available to backorder	14M7401 Hexagonal Lock Nut M12	£2.94 £2.45
4	JD19M8088 Available to backorder	19M8088 Hexagonal Head Screw M12 x 75	£3.28 £2.73
5	JD37M7425 Available to backorder	37M7425 Self-Tapping Screw M6 x 16	£2.94 £2.45
6	JDAUC15168 Available to backorder	Cargo Box Tail Gate	£319.00 £265.83
7	JDAUC17736 In stock	Tailgate Handle Assembly	£63.04 £52.53
8	JDJD8059 Available to backorder	Leaping Deer Label	£6.71 £5.59
9	JDM163165 Available to backorder	Spring Locking Pin	£0.55 £0.46
10	JDAM138299 Available to backorder	Taillight Bracket	£129.12 £107.60
11	JDM112804 Available to backorder	Button Head Screw M8 x 35	£2.09 £1.74
12	JDM142541 Available to backorder	Round Hole Washer	£2.05 £1.71
13	JDM158274 Available to backorder	Cargo Box Latch Actuator Rod	£23.21 £19.34
14	JDM159508 In stock	Cargo Box Cable	£36.49 £30.41
15	JDM160805 Available to backorder	Cargo Box Shroud	£38.71 £32.26
16	JDM160649 Available to backorder	Frame Bumper	£5.89 £4.91
17	JDM158124 Available to backorder	Barrel Round Nut M8	£7.51 £6.26
18	JDL55969 Available to backorder	Clamp-On Nut M8	£2.57 £2.14
19	JDM80082 Available to backorder	Push Nut 1/4"	£1.48 £1.23
20	JDAM146149 Available to backorder	Smooth Floor	£860.10 £716.75
22	JDM122475 Available to backorder	Purse Lock Stand-Off Clip	£1.98 £1.65
23	JDL36677 Available to backorder	Electrical Conductor	£4.69 £3.91
23	JDAM147726 Available to backorder	Tail Light Wiring Harness	£33.50 £27.92
25	JDM156010 Available to backorder	Socket Head Shouldered Screw M8 x 26.6	£3.50 £2.92
26	JDM84309 Available to backorder	Retainer Nut 5/16"	£1.68 £1.40
27	JDM161340 Available to backorder	Right Side Tailgate Striker	£47.65 £39.71
28	JDM161499 Available to backorder	Cargo Box Bumper	£1.64 £1.37
29	JDM157822 Available to backorder	Side Panel Bracket	£76.44 £63.70
30	JDAUC15077 Available to backorder	HD Cargo Box Panel Right Side	£353.76 £294.80
31	JDM158123 Available to backorder	U-Bolt	£8.38 £6.98
33	JDM164773 Available to backorder	Carbo Box Side Panel Tube	£107.52 £89.60
34	JDM162365 Available to backorder	Countersunk Head Screw M8 x 45	£7.24 £6.03
35	JDAM141252 Available to backorder	RH Hinge for Cargo Box	£89.16 £74.30
36	JDM159645 Available to backorder	Flanged Bushing	£5.84 £4.87
37	JDM162461 Available to backorder	Spacer	£3.80 £3.17
38	JD21M7577 Available to backorder	21M7577 Button Head Screw M6 x 16	£1.62 £1.35
39	JDGC00309 Available to backorder	Lock Clamp-On Nut M6	£1.75 £1.46
40	JDUC28578 Available to backorder	Side Tail Lamp Left Side	£135.72 £113.10
41	JDM161341 Available to backorder	Left Side Tailgate Striker	£47.65 £39.71
42	JDAUC15078 Available to backorder	HD Cargo Box Side Panel Left Side	£346.80 £289.00
43	JDAUC15166 Available to backorder	Heavy Duty Cargo Box Panel Left Side	£297.55 £247.96
44	JDAM141253 Available to backorder	Left Side Deluxe Cargo Box Hinge	£101.52 £84.60
45	JDUC28579 Available to backorder	Right Side Tail Lamp	£137.16 £114.30
46	JD24M7298 Available to backorder	24M7298 Round Hole Washer	£1.45 £1.21
48	JDM171860 Available to backorder	License Plate Bracket	£239.88 £199.90
49	JDAM137917 Available to backorder	Lamp 24 Volts	£108.96 £90.80
50	JDAM141518 Available to backorder	Multi-Mount Clamp	£46.81 £39.01
51	JDAM143562 Available to backorder	Homologation Light Kit Mounting Parts	£234.84 £195.70
52	JDL151020 Available to backorder	Hexagonal Socket Head Flange Screw M6 x 16	£1.66 £1.38
54	JDM178571 Available to backorder	Side Closeout Isolator	£28.00 £23.33
