John Deere XUV855M - PC13312 - Mounting Brackets - ST898205

Name: John Deere XUV855M - PC13312 - Mounting Brackets - ST898205
SKU: XUV855M_PC13312_ST898205-group
Price: 1.14 GBP
Availability: InStock

Part No. XUV855M_PC13312_ST898205-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere XUV855M - PC13312 - Mounting Brackets - ST898205

Description

John Deere XUV855M

PC Number - PC13312

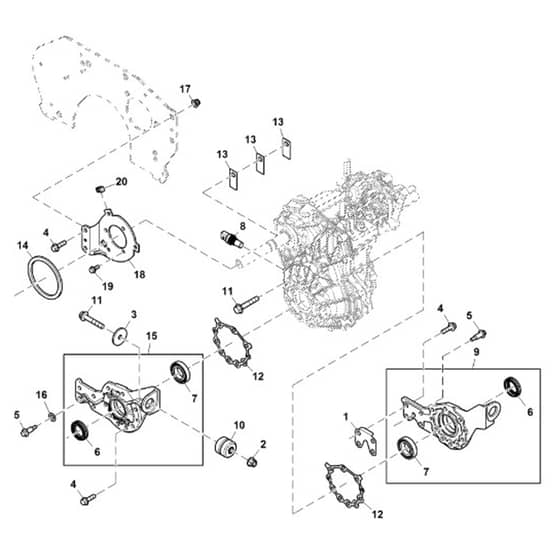

Mounting Brackets And Isolators, Transaxle - ST898205

	Part No.	Details
2	JD14M7401 Available to backorder	14M7401 Hexagonal Lock Nut M12	£2.94 £2.45
3	JD24H1347 Available to backorder	24H1347 Round Hole Washer	£6.40 £5.33
4	JD19M7835 Available to backorder	19M7835 Hexagonal Head Flange Bolt M10 x 35	£2.94 £2.45
5	JDM159158 Available to backorder	Hexagonal Head Flanged Screw M8 x 40	£3.58 £2.98
6	JDM173639 In stock	Transaxle Oil Seal	Was £23.05 £19.21 Special Price £15.20 £12.67
7	JDM173498 Available to backorder	Single Row Cylindrical Ball Bearing	£34.32 £28.60
8	JDRE330846 Available to backorder	Wheel Speed Sensor Length 36 mm	£110.16 £91.80
9	JDAM145933 Available to backorder	Transaxle Support Right Side	£256.92 £214.10
10	JDAM137711 In stock	Transaxle Mount Isolator	£53.33 £44.44
11	JD19M7817 Available to backorder	19M7817 Hexagonal Head Flanged Screw M12 x 70	£6.70 £5.58
12	JDM156196 Available to backorder	Transmission Support Gasket	£4.55 £3.79
14	JDM169277 Available to backorder	Rear Clutch Enclosure Gasket	£19.09 £15.91
15	JDAM145934 Available to backorder	Transaxle Support Left Side	£256.92 £214.10
16	JD12M1646 Available to backorder	12M1646 Crinkled Washer	£2.09 £1.74
17	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
19	JD19M7866 Available to backorder	19M7866 Hexagonal Head Flanged Screw M8 x 20	£1.37 £1.14
20	JDL155576 Available to backorder	Spring Nut M6	£2.51 £2.09
