John Deere XUV855D - PC9959 - Transaxle Driven (060001 - ) - ST737527

Description

John Deere XUV855D

PC Number - PC9959

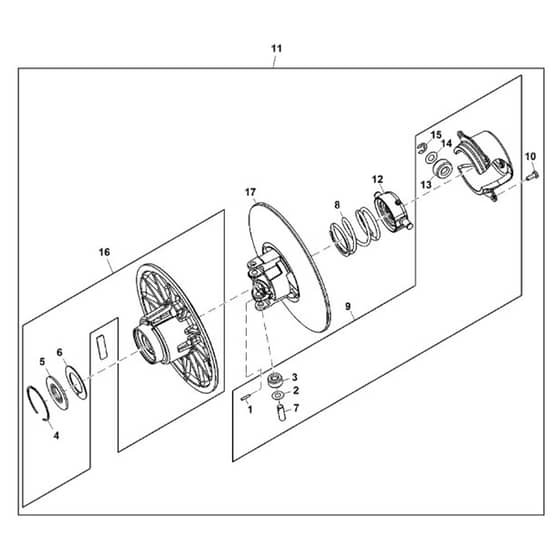

Transaxle Driven Clutch (060001 - ) - ST737527

	Part No.	Details
1	JD34H245 Available to backorder	34H245 Spring Pin	£2.23 £1.86
2	JDM165714 Available to backorder	Thrust Washer	£4.03 £3.36
3	JDM165723 Available to backorder	Transaxle Driven Clutch Roller	£22.01 £18.34
4	JDM167097 Available to backorder	Clutch	£20.80 £17.33
5	JDM167098 Available to backorder	Washer Shim	£43.33 £36.11
6	JDM167099 Available to backorder	Shim	£28.22 £23.52
7	JDM167100 In stock	Roller Pin	£32.23 £26.86
8	JDM167101 Available to backorder	Compression Spring	£57.40 £47.83
9	JDAM143910 Available to backorder	Secondary Clutch Kit	£512.46 £427.05
10	JDM167103 Available to backorder	Torx Screw M6 x 16	£13.88 £11.57
12	JDAM143950 Available to backorder	Clutch Dampener Kit	£80.04 £66.70
13	JDM168780 Available to backorder	Secondary Clutch Roller	£29.70 £24.75
14	JDM168781 Available to backorder	Thrust Washer	£10.81 £9.01
15	JDM168782 Available to backorder	External Snap Ring	£10.79 £8.99
16	JDAUC20381 Available to backorder	Sheave Assembly	£528.77 £440.64
