John Deere X949 - PC13379 - Belt Drive ( - 070000) - ST905776

Name: John Deere X949 - PC13379 - Belt Drive ( - 070000) - ST905776
SKU: X949_PC13379_ST905776-group
Price: 0.34 GBP
Availability: InStock

Part No. X949_PC13379_ST905776-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X949 - PC13379 - Belt Drive ( - 070000) - ST905776

Description

John Deere X949

PC Number - PC13379

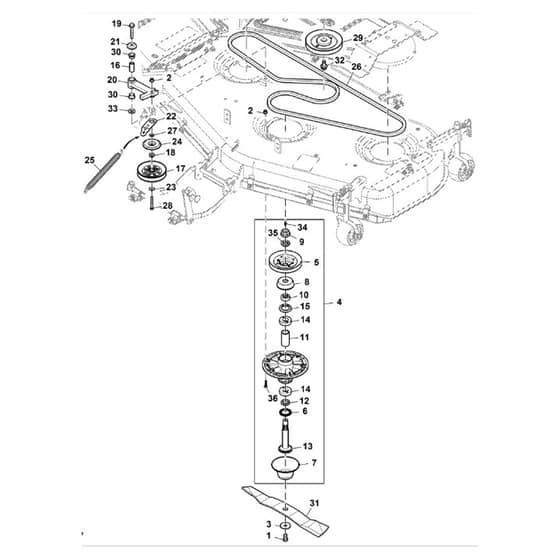

Belt Drive And Spindle Housings, 54 Inch Edge™ High-Capacity ( - 070000) - ST905776

	Part No.	Details
1	JD19M7872 Available to backorder	19M7872 Hexagonal Head Screw M12 x 25	£2.82 £2.35
2	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
3	JDM147138 In stock	Concave Washer	£16.66 £13.88
4	JDAM144424 Available to backorder	High Capacity Mower Deck Spindle 54 inch	£322.08 £268.40
5	JDM162775 Available to backorder	Mower Deck Drive Sheave	£72.24 £60.20
6	JDM127198 Available to backorder	Internal Oil Seal	£15.84 £13.20
7	JDM163053 Available to backorder	Lower Grass Deflector	£23.56 £19.63
8	JDM163054 Available to backorder	Upper Deflector 25mm	£7.60 £6.33
9	JDM123569 Available to backorder	Hexagonal Flange Nut M20	£8.78 £7.32
10	JDM163057 Available to backorder	Internal Splined Coupling Bushing	£26.50 £22.08
11	JDM163058 Available to backorder	Bearing Spacer	£28.74 £23.95
12	JDM163060 Available to backorder	Round Hole Washer	£7.46 £6.22
13	JDM163982 Available to backorder	Mower Deck Spindle	£44.15 £36.79
14	JDM169375 Available to backorder	Single Row Cylindrical Ball Bearing	£41.24 £34.37
15	JDM85699 Available to backorder	Internal Oil Seal	£25.15 £20.96
16	JDM175116 Available to backorder	Shaft	£10.99 £9.16
17	JDAM135957 In stock	Mower Deck Drive Sheave Assembly	£55.28 £46.07
18	JDM110316 Available to backorder	Shoulder Washer	£7.92 £6.60
19	JD19M7808 Available to backorder	19M7808 Hexagonal Head Flanged Screw M10 x 65	£4.75 £3.96
20	JDM134968 Available to backorder	Arm	£52.24 £43.53
22	JDM170113 Available to backorder	Belt Spring Hook Bracket	£42.67 £35.56
23	JDM110698 Available to backorder	Round Hole Washer	£1.00 £0.83
24	JDM165520 Available to backorder	Idler Shield	£4.34 £3.62
25	JDM141974 Available to backorder	Extension Spring	£25.13 £20.94
26	JDM165156 In stock	HBB Section Mower Drive V-Belt Effective Length 2845.3 mm 112 inch	£216.88 £180.73
28	JD19M7185 Available to backorder	19M7185 Hexagonal Head Cap Screw M8 x 60	£3.23 £2.69
30	JDM146073 Available to backorder	Flanged Bushing	£5.83 £4.86
31	JDTCU30316 In stock	Blade 54 Inch Deck	£38.83 £32.36
32	JD19M8640 Available to backorder	19M8640 Hexagonal Head Flanged Screw M12 x 25	£3.50 £2.92
33	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
34	JDJD7803 Available to backorder	Lubrication Fitting	£1.21 £1.01
35	JDM127353 Available to backorder	Splined Coupling Bushing	£7.15 £5.96
36	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
