John Deere X738 - PC11846 - Mower Depth ( - 020000) - ST753840

Description

John Deere X738

PC Number - PC11846

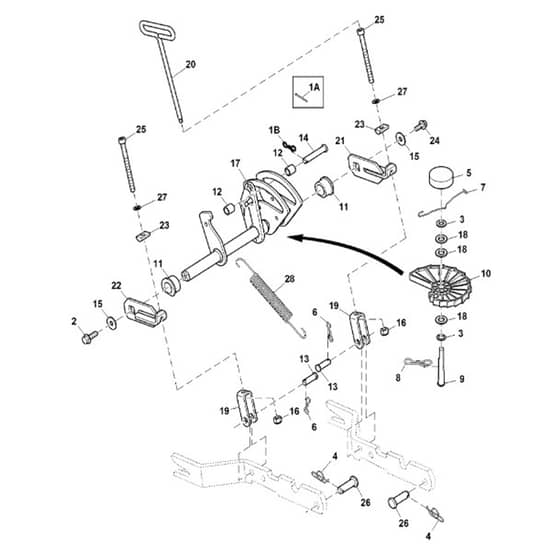

Mower Depth Control, 48C ( - 020000) - ST753840

	Part No.	Details
1	JDGX21530 Available to backorder	Spring Pin [1B]	£0.68 £0.57
2	JD19M7786 Available to backorder	19M7786 Hexagonal Head Flanged Screw M10 x 30	£2.66 £2.22
3	JD24H1806 Available to backorder	24H1806 Round Hole Washer	£0.36 £0.30
4	JDM154221 In stock	Cotter Pin	£1.75 £1.46
5	JDAM123734 Available to backorder	Mower Height Knob	£20.41 £17.01
6	JDM144705 Available to backorder	Spring Locking Pin	£1.28 £1.07
7	JDM168785 Available to backorder	Detent Clip	£10.40 £8.67
8	JDM147941 Available to backorder	Cotter Pin Bow Tie	£2.28 £1.90
9	JDM148126 Available to backorder	Pin Fastener	£17.93 £14.94
10	JDM149802 Available to backorder	Depth Stop Cam	£74.88 £62.40
11	JDM152517 Available to backorder	Cylindrical Flanged Alloy Bushing	£10.49 £8.74
12	JDM154594 Available to backorder	Plain Bushing	£11.81 £9.84
13	JDM172505 Available to backorder	Pin	£7.69 £6.41
13	JDM46192 Available to backorder	Pin Fastener	£9.65 £8.04
14	JDM90097 Available to backorder	Pin Fastener	£14.39 £11.99
15	JDM157589 Available to backorder	Concave Washer	£6.90 £5.75
16	JDM85516 Available to backorder	Hexagonal Lock Nut M10	£2.09 £1.74
