John Deere X734 - PC11845 - Jack Sheave (070001 - ) - ST939788

Name: John Deere X734 - PC11845 - Jack Sheave (070001 - ) - ST939788
SKU: X734_PC11845_ST939788-group
Price: 0.34 GBP
Availability: InStock

Part No. X734_PC11845_ST939788-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

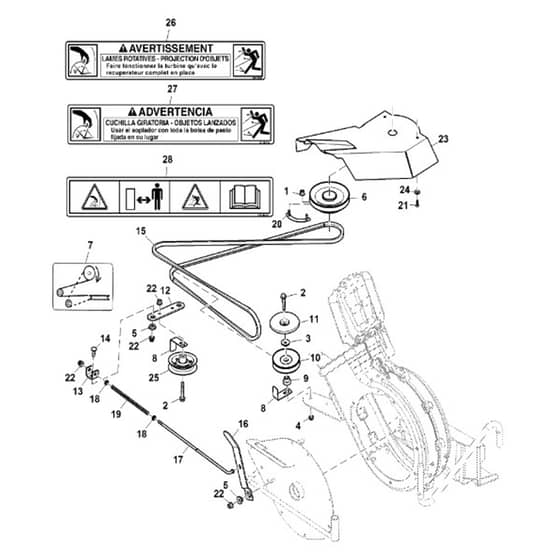

John Deere X734 - PC11845 - Jack Sheave (070001 - ) - ST939788

Description

John Deere X734

PC Number - PC11845

Jack Sheave, Idlers And Belt, 60Hc Inch (070001 - ) - ST939788

	Part No.	Details
1	JD14M7397 In stock	14M7397 Hexagonal Flange Lock Nut M6	£1.01 £0.84
2	JD19M7979 Available to backorder	19M7979 Hexagonal Head Flanged Screw M8 x 55	£3.48 £2.90
3	JD24M7024 Available to backorder	24M7024 Round Hole Washer	£1.60 £1.33
4	JD14M7166 Available to backorder	14M7166 Hexagonal Lock Nut M8	£1.07 £0.89
5	JDM110316 Available to backorder	Shoulder Washer	£7.92 £6.60
7	JDM146337 Available to backorder	Belt Installation Label	£9.24 £7.70
8	JDM135488 Available to backorder	Belt Bracket	£19.27 £16.06
9	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
10	JDAM118447 In stock	Sheave Idler	£55.91 £46.59
11	JDM147446 Available to backorder	Sheave Shield	£27.79 £23.16
12	JDM155570 Available to backorder	Idler Pivot Arm	£8.03 £6.69
14	JD03M7185 Available to backorder	03M7185 Carriage Bolt M8 x 25	£1.19 £0.99
15	JDM112490 Available to backorder	Mower Deck Drive V-Belt Effective Length 2505 mm 98 inch	£88.20 £73.50
18	JD24M7095 Available to backorder	24M7095 Round Hole Washer	£0.41 £0.34
21	JDGX23580 Available to backorder	Self-Tapping Screw M5 x 19	£1.04 £0.87
22	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
24	JD24M7250 Available to backorder	24M7250 Round Hole Washer	£1.02 £0.85
25	JDAM128189 Available to backorder	Idler Pulley with Dampener	£59.24 £49.37
