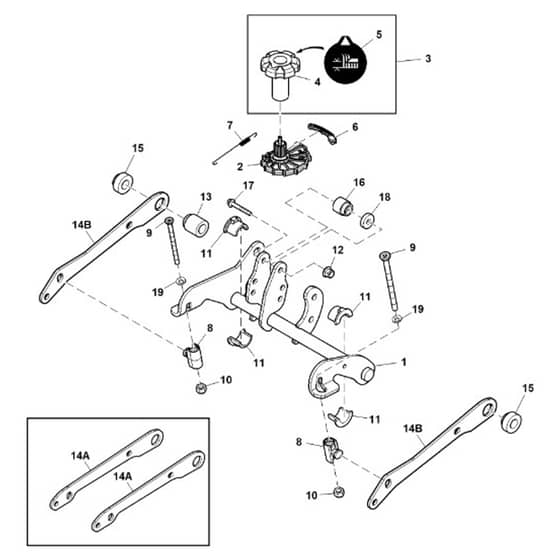

John Deere X584 - PC12717 - Lift System - ST846554

Name: John Deere X584 - PC12717 - Lift System - ST846554
SKU: X584_PC12717_ST846554-group
Price: 1.35 GBP
Availability: InStock

Description

John Deere X584

PC Number - PC12717

Lift System, 54 Inch - ST846554

	Part No.	Details
1	JDAM143406 Available to backorder	Rockshaft	£330.00 £275.00
2	JDM170347 Available to backorder	Cam	£35.16 £29.30
4	JDM177656 Available to backorder	Lift System Knob	£19.25 £16.04
5	JDM169723 Available to backorder	Label	£13.54 £11.28
6	JDM170349 Available to backorder	Depth Stop Detent	£3.17 £2.64
7	JDM170350 Available to backorder	Extension Spring	£5.84 £4.87
8	JDM168772 Available to backorder	Adjustable Lift Link	£4.68 £3.90
9	JDM168774 Available to backorder	Countersunk Head Screw M10 x 147	£14.32 £11.93
9	JDUC36663 Available to backorder	Flat Countersunk Head Bolt M10 x 119	£4.51 £3.76
10	JDM85516 Available to backorder	Hexagonal Lock Nut M10	£2.09 £1.74
11	JDM175768 Available to backorder	Half Rockshaft Bushing	£21.83 £18.19
12	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
14	JDUC36661 Available to backorder	Lift Arm [14B]	£49.22 £41.02
15	JDM167279 Available to backorder	Bushing	£10.88 £9.07
17	JD19M7809 Available to backorder	19M7809 Hexagonal Head Flange Bolt M10 x 70	£5.78 £4.82
19	JDUC33890 Available to backorder	Concave Washer	£1.62 £1.35
