John Deere X534 - PC9526 - Belt Drive ( - 030000) - ST541743

Description

John Deere X534

PC Number - PC9526

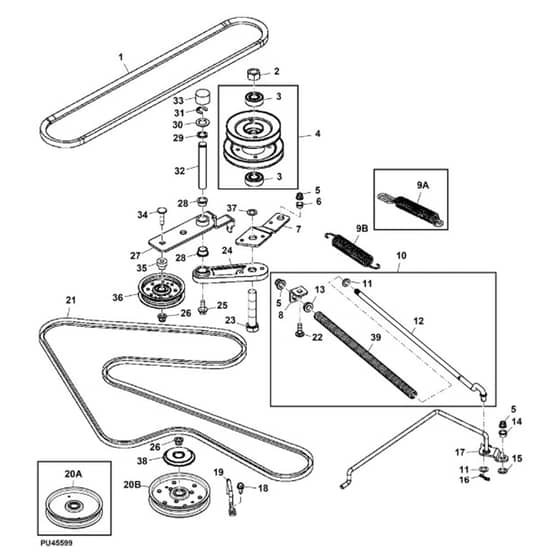

Belt Drive, Idlers And Sheaves, 48X Inch ( - 030000) - ST541743

	Part No.	Details
1	JDM154897 In stock	Mower Deck Drive V-Belt Effective Length 1661.6 mm 65.4 inch	£124.90 £104.08
2	JD14H794 Available to backorder	14H794 Hexagonal Nut 3/4"	£4.32 £3.60
3	JDJD9296 Available to backorder	Single Row Cylindrical Ball Bearing	£22.62 £18.85
4	JDAM135877 Available to backorder	Jack Sheave Assembly	£156.60 £130.50
5	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
6	JDM110316 Available to backorder	Shoulder Washer	£7.92 £6.60
9	JDM115926 Available to backorder	Extension Spring [9B]	£28.81 £24.01
9	JDM112505 Available to backorder	Extension Spring [9A]	£22.31 £18.59
11	JD24M7096 Available to backorder	24M7096 Round Hole Washer	£0.53 £0.44
13	JDM112982 In stock	Mower Deck Lift Arm Ball	£1.57 £1.31
14	JDM141377 Available to backorder	Shoulder Washer	£14.36 £11.97
15	JD24M7055 Available to backorder	Round Hole Washer	£0.50 £0.42
16	JDM146729 Available to backorder	Spring Locking Pin	£0.71 £0.59
18	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
19	JDM154667 Available to backorder	Guide	£11.86 £9.88
20	JDAUC16698 In stock	Flat Idler [20B]	£45.86 £38.22
21	JDM154958 In stock	Mower Deck Drive V-Belt Effective Length 2829 mm 111.4 inch	£86.78 £72.32
22	JD03M7093 Available to backorder	03M7093 Round Head Square Neck Bolt M8 x 25	£1.43 £1.19
23	JD19H3196 Available to backorder	19H3196 Hexagonal Head Cap Screw 3/4" x 4"	£15.89 £13.24
25	JD19M7785 Available to backorder	19M7785 Hexagonal Head Flanged Screw M10 x 25	£2.48 £2.07
26	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
27	JDAM136098 Available to backorder	Secondary Tensioner Arm	£124.20 £103.50
28	JDM146073 Available to backorder	Flanged Bushing	£5.83 £4.86
29	JDM91256 Available to backorder	Piston and Rod Felt Seal	£4.32 £3.60
30	JD24H1391 Available to backorder	24H1391 Round Hole Washer	£1.21 £1.01
31	JDT40189 Available to backorder	External Snap Ring	£3.83 £3.19
32	JDM154931 Available to backorder	Mower Deck Belt Drive Shaft	£76.68 £63.90
33	JDM155619 Available to backorder	Cap	£2.51 £2.09
34	JD03M7195 Available to backorder	03M7195 Round Head Square Neck Bolt M10 x 45	£3.53 £2.94
35	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
36	JDAM136621 Available to backorder	Sheave Assembly	£77.16 £64.30
37	JD24M7353 Available to backorder	24M7353 Round Hole Washer	£1.85 £1.54
38	JDM165519 Available to backorder	Idler Shield	£4.80 £4.00
39	JDAM141934 Available to backorder	Compression Spring	£106.08 £88.40
