John Deere X384 - PC12712 - Lift System - ST841770

Name: John Deere X384 - PC12712 - Lift System - ST841770
SKU: X384_PC12712_ST841770-group
Price: 0.32 GBP
Availability: InStock

Description

John Deere X384

PC Number - PC12712

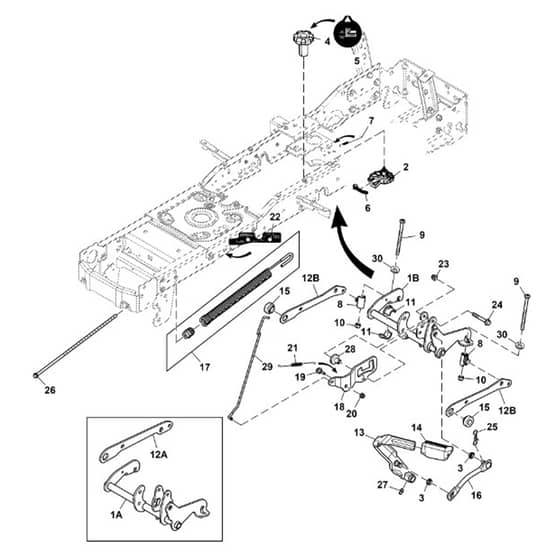

Lift System, 48A Inch - ST841770

	Part No.	Details
4	JDM177656 Available to backorder	Lift System Knob	£19.25 £16.04
5	JDM169723 Available to backorder	Label	£13.54 £11.28
6	JDM170349 Available to backorder	Depth Stop Detent	£3.17 £2.64
7	JDM170350 Available to backorder	Extension Spring	£5.84 £4.87
8	JDM168772 Available to backorder	Adjustable Lift Link	£4.68 £3.90
9	JDM168774 Available to backorder	Countersunk Head Screw M10 x 147	£14.32 £11.93
9	JDUC36663 Available to backorder	Flat Countersunk Head Bolt M10 x 119	£4.51 £3.76
10	JDM85516 Available to backorder	Hexagonal Lock Nut M10	£2.03 £1.69
11	JDM175768 Available to backorder	Half Rockshaft Bushing	£21.83 £18.19
12	JDUC36661 Available to backorder	Lift Arm [12B]	£49.22 £41.02
13	JDAM148070 Available to backorder	Lift Linkage Pedal	£164.41 £137.01
14	JDM149390 Available to backorder	Pad	£26.51 £22.09
15	JDM167279 Available to backorder	Bushing	£10.88 £9.07
19	JDM153513 In stock	Hexagonal Head Flanged Screw M8 x 28	£2.88 £2.40
20	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.38 £0.32
21	JDM152947 Available to backorder	Extension Spring	£7.94 £6.62
23	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
24	JD19M7809 Available to backorder	19M7809 Hexagonal Head Flange Bolt M10 x 70	£5.78 £4.82
25	JDM147941 Available to backorder	Cotter Pin Bow Tie	£2.16 £1.80
27	JDJD7844 Available to backorder	Straight Lubrication Fitting	£2.16 £1.80
30	JDUC33890 Available to backorder	Concave Washer	£1.62 £1.35
