John Deere X310 - PC10883 - Mower Drive - ST935213

Name: John Deere X310 - PC10883 - Mower Drive - ST935213
SKU: X310_PC10883_ST935213-group
Price: 0.34 GBP
Availability: InStock

Part No. X310_PC10883_ST935213-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X310 - PC10883 - Mower Drive - ST935213

Description

John Deere X310

PC Number - PC10883

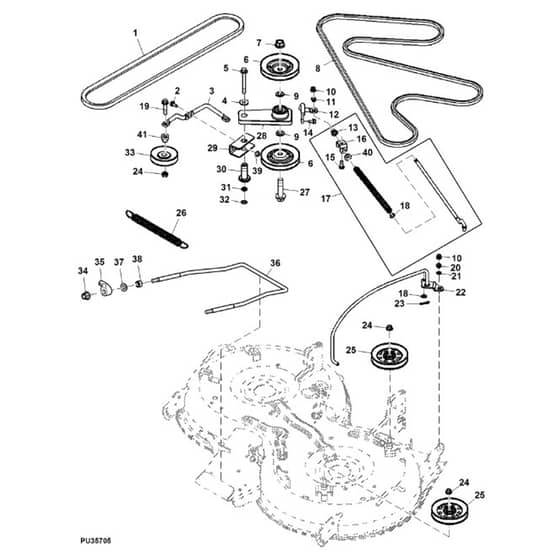

Mower Drive Belt And Sheaves, 42M Inch - ST935213

	Part No.	Details

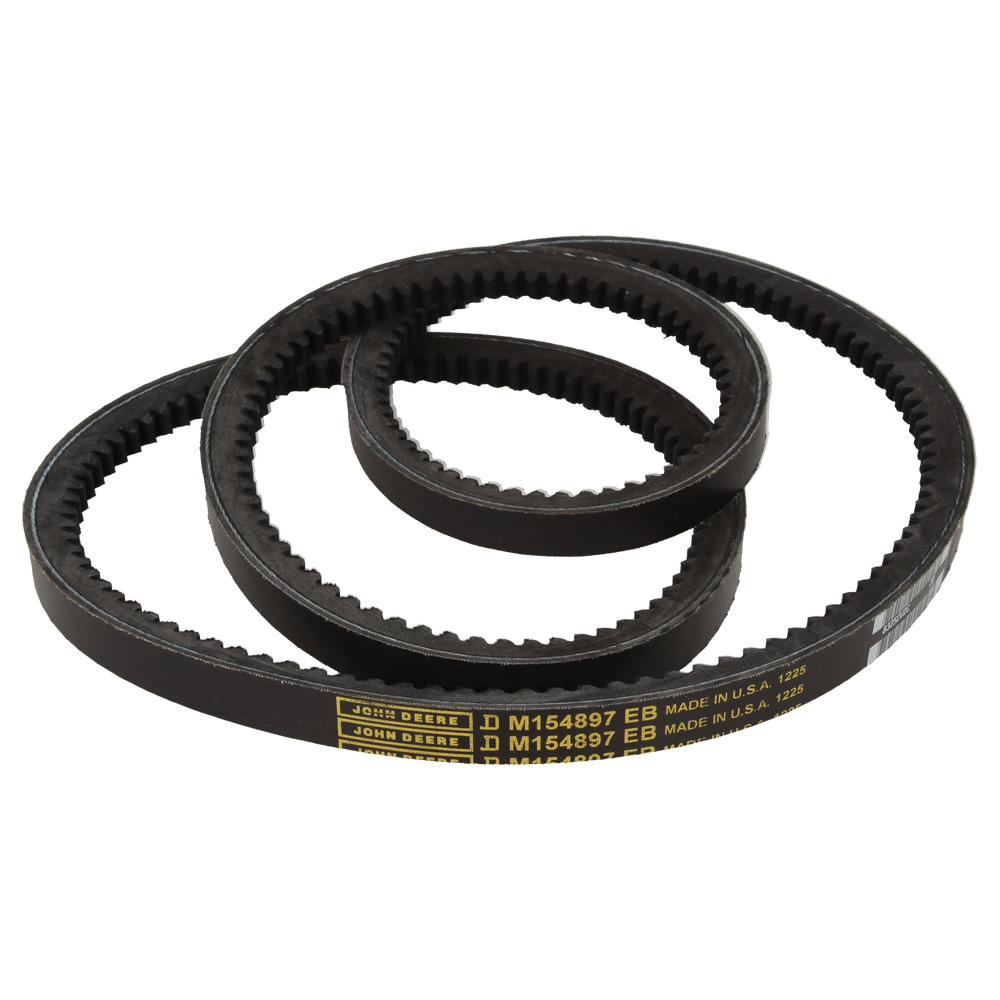

1	JDM154897 In stock	Mower Deck Drive V-Belt Effective Length 1661.6 mm 65.4 inch	£124.90 £104.08
2	JDM159825 Available to backorder	Hexagonal Flanged Head Self-Tapping Screw M8 x 23.5	£1.80 £1.50
3	JDM163788 Available to backorder	Secondary Idler Drive Arm	£33.89 £28.24
4	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
5	JD19M7811 Available to backorder	19M7811 Hexagonal Head Flange Bolt M10 x 90	£6.37 £5.31
6	JDM157175 Available to backorder	Belt Drive Sheave	£61.32 £51.10
7	JD14M7291 Available to backorder	14M7291 Hexagonal Flange Lock Nut M16	£3.85 £3.21

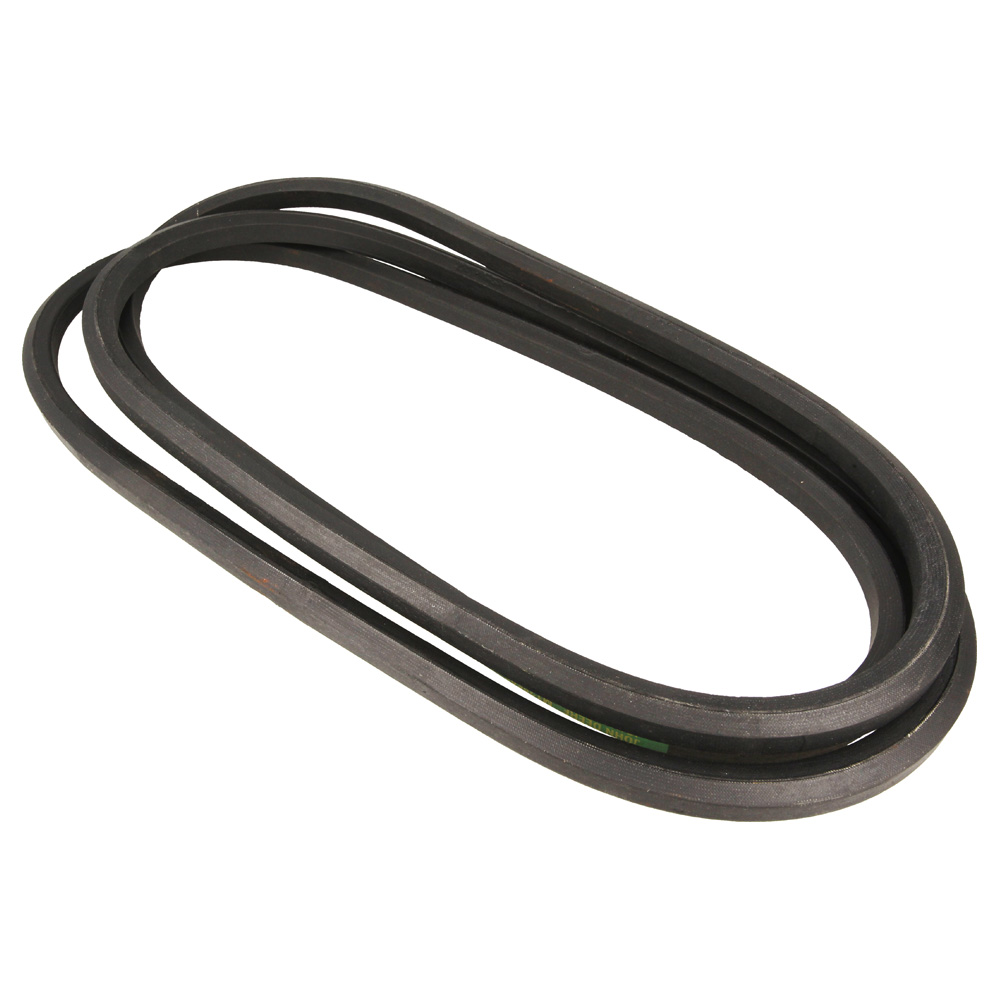

8	JDM138583 In stock	Mower Deck Drive V-Belt Effective Length 2921 mm 115 inch	£220.22 £183.52
9	JD24M7097 Available to backorder	24M7097 Round Hole Washer	£1.14 £0.95
10	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
11	JDM131321 Available to backorder	Neutral Return Bushing	£2.05 £1.71
12	JDM156848 Available to backorder	Drive Arm Bracket	£76.32 £63.60
13	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
14	JD19M7865 Available to backorder	19M7865 Hexagonal Head Flanged Screw M8 x 16	£1.43 £1.19
15	JD03M7185 Available to backorder	03M7185 Carriage Bolt M8 x 25	£1.19 £0.99
16	JDM155176 Available to backorder	Channel Tensioner	£6.62 £5.52
17	JDAM141934 Available to backorder	Compression Spring	£106.08 £88.40
18	JD24M7096 Available to backorder	24M7096 Round Hole Washer	£0.53 £0.44
19	JD19M8320 Available to backorder	19M8320 Hexagonal Head Flange Bolt M10 x 45	£3.48 £2.90
20	JDM141377 Available to backorder	Shoulder Washer	£14.36 £11.97
21	JD24M7055 Available to backorder	Round Hole Washer	£0.50 £0.42
22	JDAM140181 Available to backorder	Handle	£273.12 £227.60
23	JDM146729 Available to backorder	Spring Locking Pin	£0.71 £0.59
24	JD14M7296 Available to backorder	14M7296 Hexagonal Flange Nut M10	£1.12 £0.93
25	JDAM135957 In stock	Mower Deck Drive Sheave Assembly	£55.28 £46.07
26	JDM155068 Available to backorder	Extension Spring	£18.64 £15.53
27	JD19M7826 Available to backorder	19M7826 Hexagonal Head Flange Bolt M16 x 70	£11.60 £9.67
28	JDAM137197 Available to backorder	Mower Deck Drive Arm	£153.72 £128.10
29	JDM163787 Available to backorder	Mower Deck Arm	£20.94 £17.45
30	JDM160844 Available to backorder	Cylindrical Flanged Alloy Bushing	£14.42 £12.02
31	JDZ81151 Available to backorder	Round Hole Washer	£3.43 £2.86
32	JDH141123 Available to backorder	Push Nut 10 mm 0.394"	£1.85 £1.54
33	JDAM118447 In stock	Sheave Idler	£55.91 £46.59
34	JD14M7401 Available to backorder	14M7401 Hexagonal Lock Nut M12	£2.94 £2.45

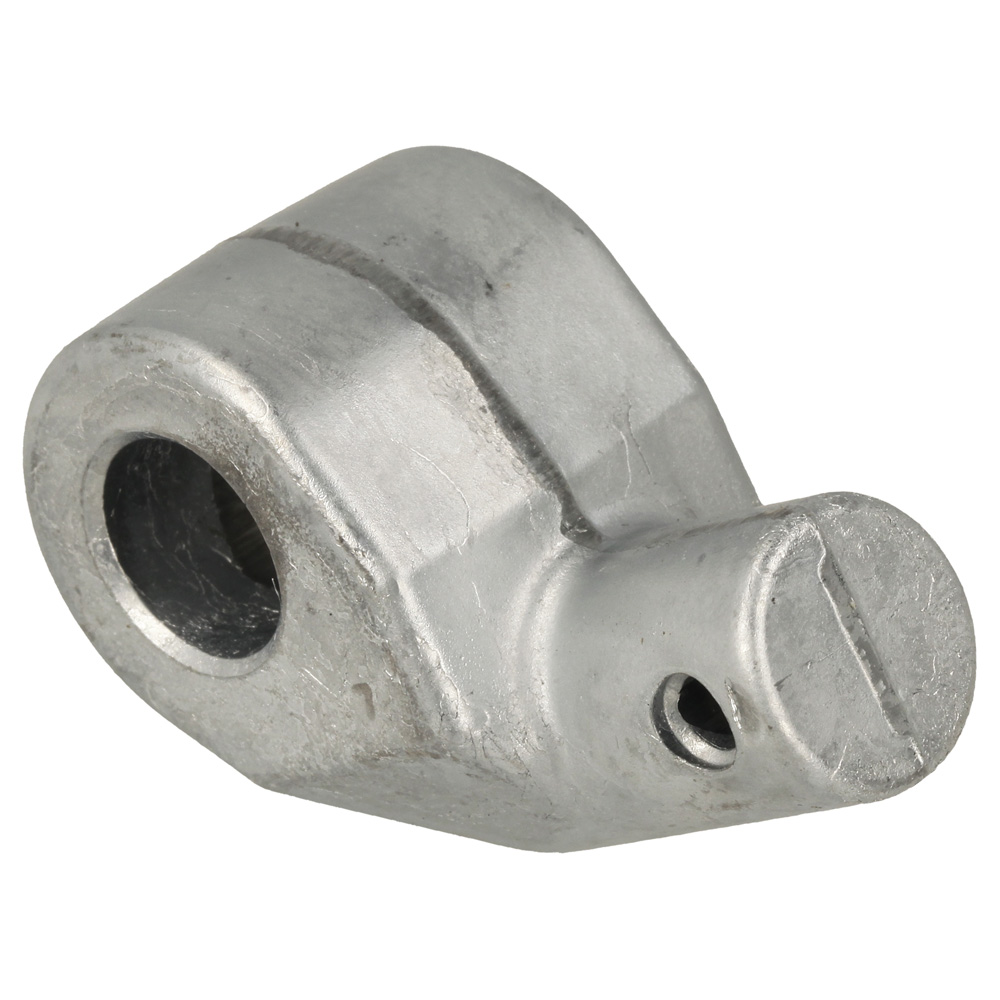

35	JDUC14170 In stock	Mower Deck Front Draft Link Trunnion	£12.85 £10.71
36	JDM157568 Available to backorder	U-Bolt	£54.23 £45.19
37	JD24M7047 Available to backorder	Round Hole Washer	£0.98 £0.82
38	JD14M7275 Available to backorder	14M7275 Hexagonal Nut M12	£1.50 £1.25
39	JD14M7298 Available to backorder	14M7298 Hexagonal Flange Nut M8	£0.68 £0.57
40	JDM112982 In stock	Mower Deck Lift Arm Ball	£1.57 £1.31
41	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
