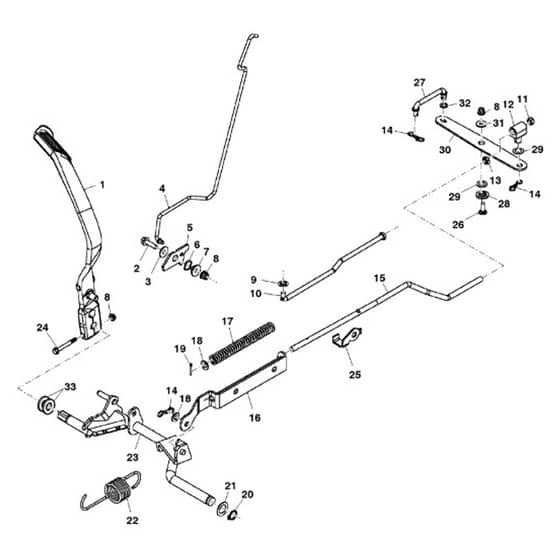

John Deere X305R - PC10882 - Brake Pedal - ST700254

Name: John Deere X305R - PC10882 - Brake Pedal - ST700254
SKU: X305R_PC10882_ST700254-group
Price: 0.25 GBP
Availability: InStock

Description

John Deere X305R

PC Number - PC10882

Brake Pedal / Linkage - ST700254

	Part No.	Details
1	JDM170002 Available to backorder	Brake Pedal	£127.99 £106.66
2	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
3	JD24M7298 Available to backorder	24M7298 Round Hole Washer	£1.39 £1.16
6	JDM87534 Available to backorder	Lock Washer	£1.66 £1.38
8	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
9	JDGX10434 Available to backorder	Push Nut M6	£1.32 £1.10
11	JDM85540 Available to backorder	Hexagonal Lock Nut M12	£2.23 £1.86
12	JDM153738 Available to backorder	Swivel	£3.68 £3.07
13	JD14M7275 Available to backorder	14M7275 Hexagonal Nut M12	£1.43 £1.19
14	JDM144705 Available to backorder	Spring Locking Pin	£1.21 £1.01
18	JD24M7040 Available to backorder	24M7040 Round Hole Washer	£0.77 £0.64
19	JD11M7015 Available to backorder	Cotter Pin	£0.30 £0.25
20	JDM40514 Available to backorder	External Snap Ring	£4.06 £3.38
21	JDM41361 Available to backorder	Round Hole Washer	£0.77 £0.64
24	JD19M7802 Available to backorder	19M7802 Hexagonal Head Flanged Screw M8 x 65	£4.49 £3.74
26	JD03M7093 Available to backorder	03M7093 Round Head Square Neck Bolt M8 x 25	£1.37 £1.14
27	JDM152581 Available to backorder	Rod	£10.01 £8.34

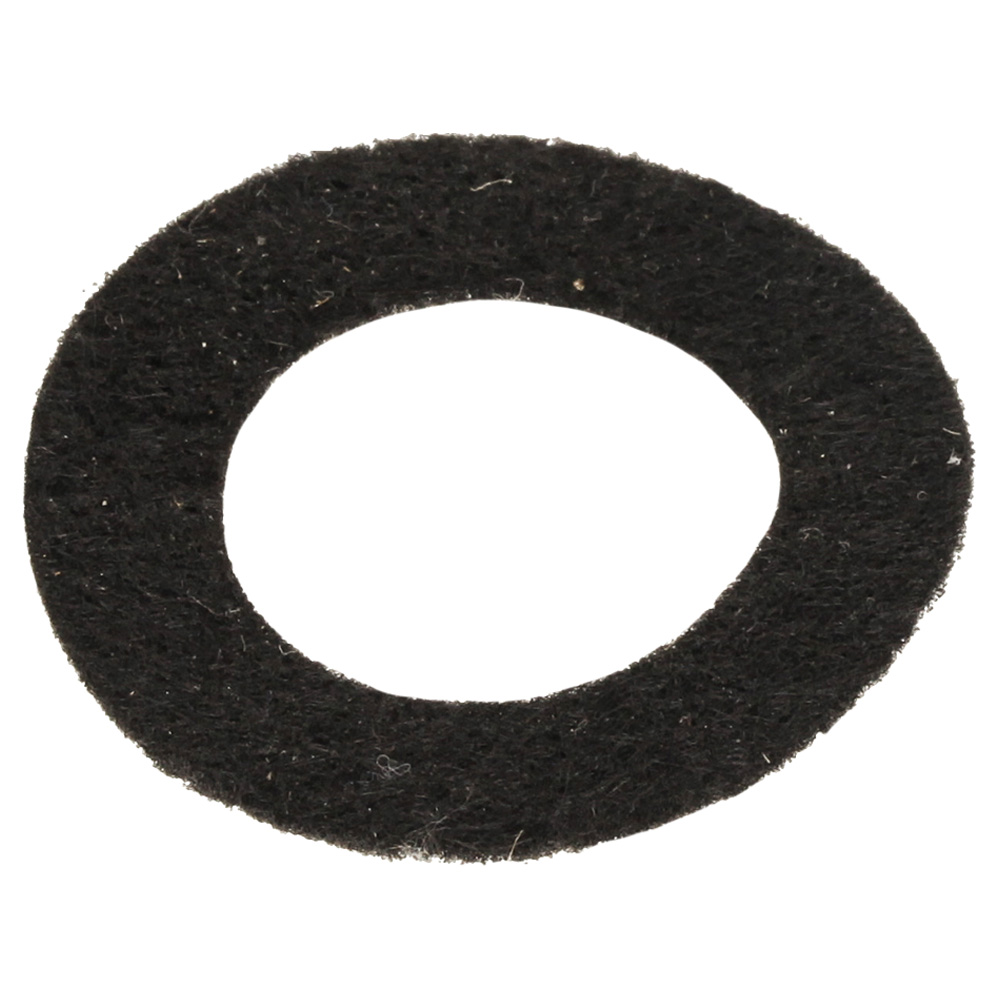

29	JDM85206 Available to backorder	Seal	£3.80 £3.17
30	JDM152576 Available to backorder	Arm	£17.27 £14.39
32	JDM155888 Available to backorder	Sealing Washer	£2.36 £1.97
33	JDM45566 Available to backorder	Round Hole Washer	£1.30 £1.08
