John Deere X304 - PC9520 - Mower Drive ( - 030000) - ST541513

Name: John Deere X304 - PC9520 - Mower Drive ( - 030000) - ST541513
SKU: X304_PC9520_ST541513-group
Price: 0.93 GBP
Availability: InStock

Part No. X304_PC9520_ST541513-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X304 - PC9520 - Mower Drive ( - 030000) - ST541513

Description

John Deere X304

PC Number - PC9520

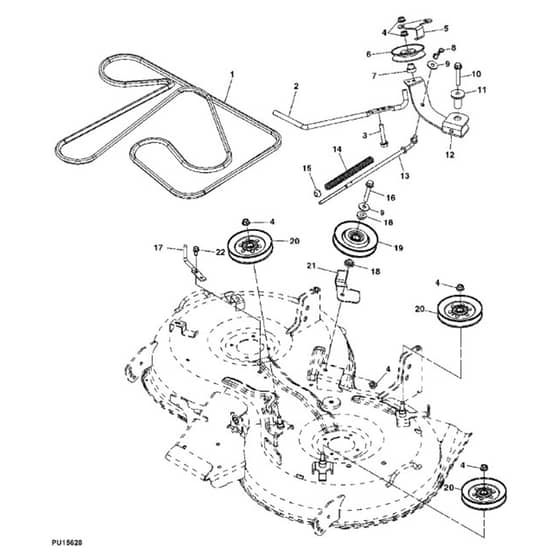

Mower Drive Belt And Sheaves, 42M Inch ( - 030000) - ST541513

	Part No.	Details
1	JDM153160 In stock	Mower Drive V-Belt Effective Length 3978 mm 156.6 inch	£225.80 £188.17
2	JDM152208 Available to backorder	Belt Guide	£146.64 £122.20
3	JD19M8528 Available to backorder	19M8528 Hexagonal Head Flanged Screw M10 x 55	£5.10 £4.25
4	JD14M7296 Available to backorder	14M7296 Hexagonal Flange Nut M10	£1.12 £0.93
5	JDM154634 Available to backorder	Guide	£40.85 £34.04
6	JDAM118447 In stock	Sheave Idler	£55.91 £46.59
7	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
8	JDM144705 Available to backorder	Spring Locking Pin	£1.28 £1.07
9	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
10	JD19M7807 Available to backorder	19M7807 Hexagonal Head Flange Bolt M10 x 60	£4.73 £3.94
11	JDM154421 Available to backorder	Cylindrical Flanged Alloy Bushing	£16.70 £13.92
12	JDM157181 Available to backorder	Tensioner Arm	£107.52 £89.60
13	JDM152834 Available to backorder	Tensioner Rod	£326.40 £272.00
14	JDM154754 Available to backorder	Compression Spring	£28.84 £24.03
15	JDM112982 In stock	Mower Deck Lift Arm Ball	£1.57 £1.31
16	JD19M8320 Available to backorder	19M8320 Hexagonal Head Flange Bolt M10 x 45	£3.48 £2.90
18	JDM113076 Available to backorder	Cylindrical Flanged Alloy Bushing	£4.12 £3.43
19	JDTCA17541 Available to backorder	Idler Pulley	£85.92 £71.60
19	JDAM136397 Available to backorder	Mower Deck Sheave Assembly	£71.88 £59.90
20	JDAM135957 In stock	Mower Deck Drive Sheave Assembly	£55.28 £46.07
22	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
