John Deere X300R - PC9608 - Transaxle Case - ST559210

Name: John Deere X300R - PC9608 - Transaxle Case - ST559210
SKU: X300R_PC9608_ST559210-group
Price: 0.34 GBP
Availability: InStock

Part No. X300R_PC9608_ST559210-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

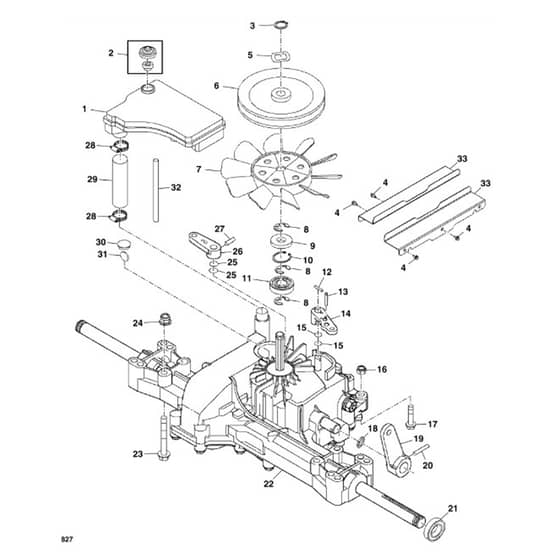

John Deere X300R - PC9608 - Transaxle Case - ST559210

Description

John Deere X300R

PC Number - PC9608

Transaxle Case - ST559210

	Part No.	Details
1	JDMIA880438 Available to backorder	Reservoir Tank	£105.72 £88.10
2	JDM811683 Available to backorder	Pressure Relief Valve	£33.18 £27.65
2	JDMIU805202 Available to backorder	Vent	£12.29 £10.24
3	JDM809166 Available to backorder	Snap Ring	£2.28 £1.90
4	JD37M7458 Available to backorder	37M7458 Hexagonal Flanged Head Self-Tapping Screw M6 x 12	£1.18 £0.98
5	JDM87534 Available to backorder	Lock Washer	£1.66 £1.38
6	JDMIU800783 Available to backorder	Transaxle Pump Shaft Pulley	£108.00 £90.00
7	JDM809034 Available to backorder	Splined Spacer	£8.20 £6.83
7	JDM809036 In stock	Transmission Fan	£19.64 £16.37
8	JDF2863R Available to backorder	Snap Ring	£2.32 £1.93
9	JDMIU804070 Available to backorder	Seal	£19.80 £16.50
10	JDCH13493 Available to backorder	Snap Ring	£2.18 £1.82
12	JDM802463 Available to backorder	Spring Pin	£1.64 £1.37
13	JDCH13499 Available to backorder	Spring Pin	£0.76 £0.63
14	JDM808831 Available to backorder	Lever	£31.78 £26.48
15	JDCH10568 Available to backorder	Packing	£1.68 £1.40
16	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
17	JD19M7799 Available to backorder	19M7799 Hexagonal Head Flanged Screw M8 x 45	£2.89 £2.41
19	JDM810011 Available to backorder	Control Lever	£28.68 £23.90
20	JDCH17124 Available to backorder	Roll Pin	£0.91 £0.76
20	JDCH17125 Available to backorder	Roll Pin	£1.30 £1.08
21	JDMIU804267 Available to backorder	Oil Seal	£31.02 £25.85
22	JDMIA12566 Available to backorder	K46BD Transaxle	£1,002.58 £835.48
23	JD19M7802 Available to backorder	19M7802 Hexagonal Head Flanged Screw M8 x 65	£4.49 £3.74
25	JDCH10571 Available to backorder	O-Ring	£1.12 £0.93
26	JDM809028 Available to backorder	Arm	£25.58 £21.32
27	JDCH13500 Available to backorder	Spring Pin	£0.86 £0.72
28	JDMIA880420 Available to backorder	Clip	£11.75 £9.79
29	JDMIA880437 Available to backorder	Transaxle Control Shaft Tube	£39.88 £33.23
30	JDMIU14382 Available to backorder	Cap	£20.56 £17.13
31	JDM119842 Available to backorder	Transaxle Center Case Magnet	£9.35 £7.79
31	JDM810033 Available to backorder	Magnet Holder	£4.19 £3.49
32	JDMIA880436 Available to backorder	Tank Support	£11.33 £9.44
34	JDR91159 Available to backorder	Tapping Screw M8 x 30	£1.30 £1.08
