John Deere X300R - PC9608 - Mower Drive - ST559234

Name: John Deere X300R - PC9608 - Mower Drive - ST559234
SKU: X300R_PC9608_ST559234-group
Price: 0.34 GBP
Availability: InStock

Part No. X300R_PC9608_ST559234-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X300R - PC9608 - Mower Drive - ST559234

Description

John Deere X300R

PC Number - PC9608

Mower Drive Belt, Sheaves And Spindles - ST559234

	Part No.	Details

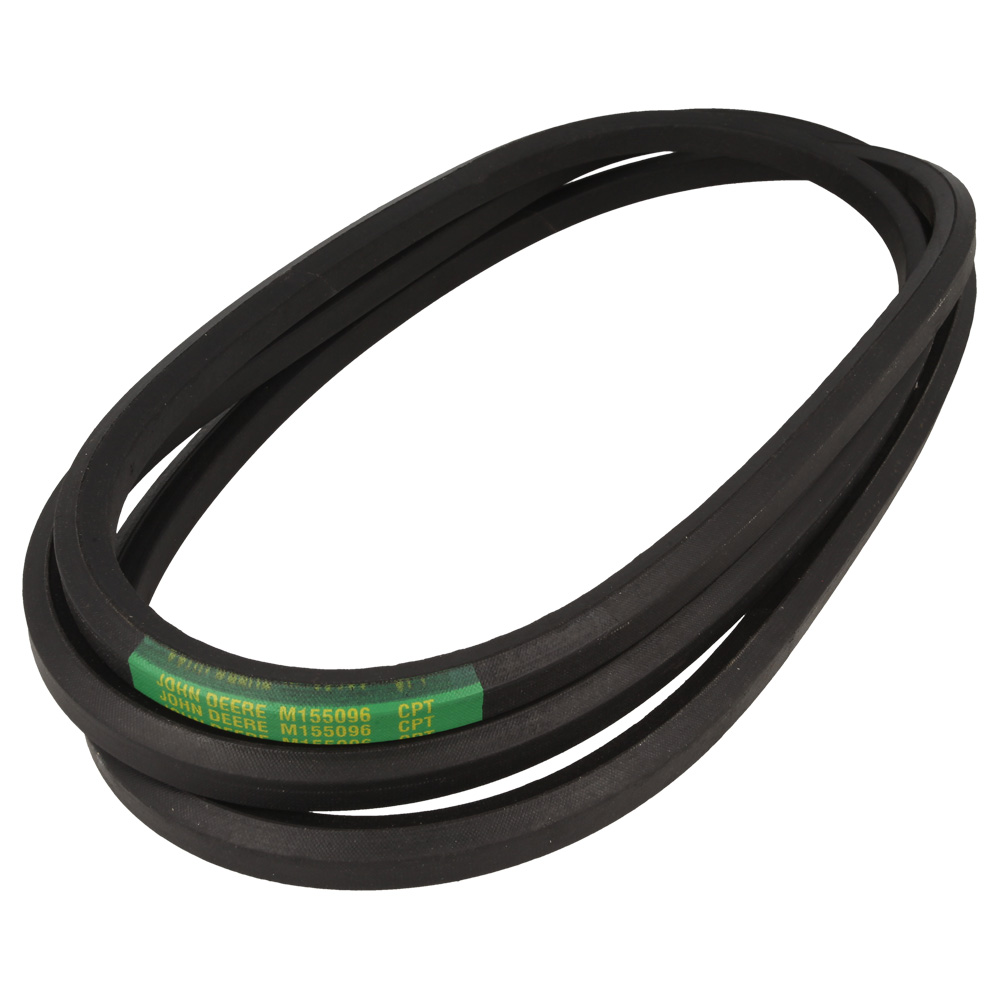

1	JDM155096 In stock	V-Belt Effective Length 2759 mm 108.6 inch	£130.73 £108.94
2	JD14M7296 Available to backorder	14M7296 Hexagonal Flange Nut M10	£1.12 £0.93
3	JDM165519 Available to backorder	Idler Shield	£4.80 £4.00
5	JD19H3600 Available to backorder	19H3600 Hexagonal Head Cap Screw 3/4" x 7"	£26.40 £22.00
6	JDJD9296 Available to backorder	Single Row Cylindrical Ball Bearing	£22.62 £18.85
7	JDAM143590 Available to backorder	Belt Shield	£87.00 £72.50
8	JDM153824 Available to backorder	Sheave Spacer	£43.67 £36.39
9	JDAM135423 Available to backorder	Mower Deck Pulley	£197.76 £164.80
10	JDM155094 Available to backorder	Sheave Bushing	£47.04 £39.20
11	JDM155793 Available to backorder	Flanged Bushing	£50.66 £42.22
12	JDM159825 Available to backorder	Hexagonal Flanged Head Self-Tapping Screw M8 x 23.5	£1.80 £1.50
13	JDM155126 Available to backorder	Shield	£79.92 £66.60
14	JD14H794 Available to backorder	14H794 Hexagonal Nut 3/4"	£4.32 £3.60
15	JD03M7195 Available to backorder	03M7195 Round Head Square Neck Bolt M10 x 45	£3.53 £2.94
17	JDM155674 Available to backorder	Arm	£97.08 £80.90
18	JD19M7806 Available to backorder	19M7806 Hexagonal Head Flanged Screw M10 x 50	£5.21 £4.34
19	JDM155308 Available to backorder	Spring	£34.22 £28.52
20	JDM159140 Available to backorder	Hexagonal Lock Nut 15.875 mm 5/8"	£4.30 £3.58
21	JDM155790 Available to backorder	Left Side Mower Drive Pulley	£87.72 £73.10
23	JDAM141110 Available to backorder	Mower Deck Spindle	£68.40 £57.00
24	JDGX21695 Available to backorder	Spacer	£10.66 £8.88
25	JDGX21510 Available to backorder	Single Row Cylindrical Ball Bearing	£25.46 £21.22
26	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.67 £1.39
27	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
28	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.25 £1.04
29	JDGX20818 Available to backorder	Single Row Cylindrical Ball Bearing	£12.79 £10.66
31	JDAM137483 In stock	Mower Belt Drive Housing [31B]	£166.36 £138.63
32	JDM155789 Available to backorder	Right Side Mower Drive Pulley	£96.36 £80.30
33	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.89 £4.91
34	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
35	JDM149625 In stock	Concave Washer	£6.34 £5.28
35	JDM147138 In stock	Concave Washer	£16.66 £13.88
36	JDM84309 Available to backorder	Retainer Nut 5/16"	£1.68 £1.40
